RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

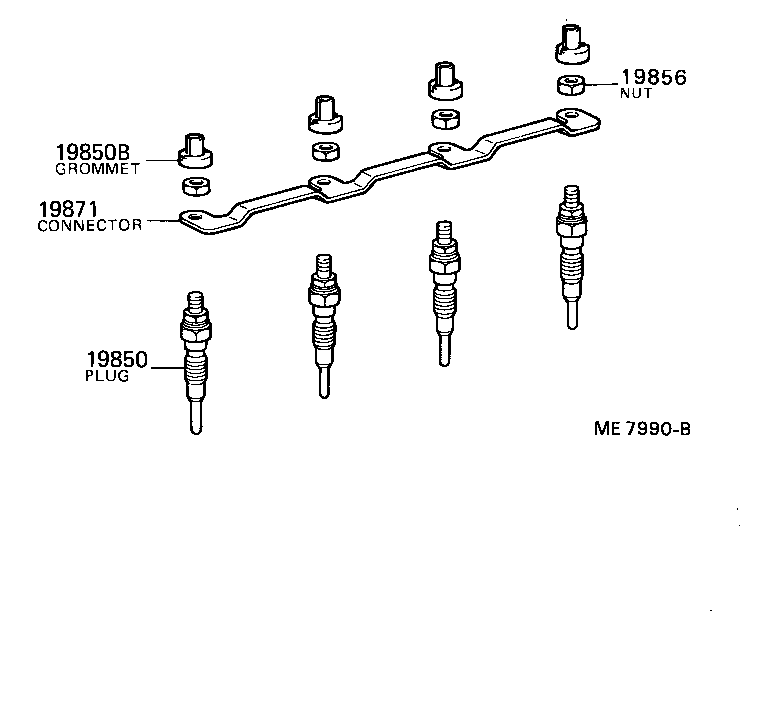

(8408- )2L#

Click highlighted areas on diagram

diagram 19850 19850B 19856 19871
Part # Description Qty Price

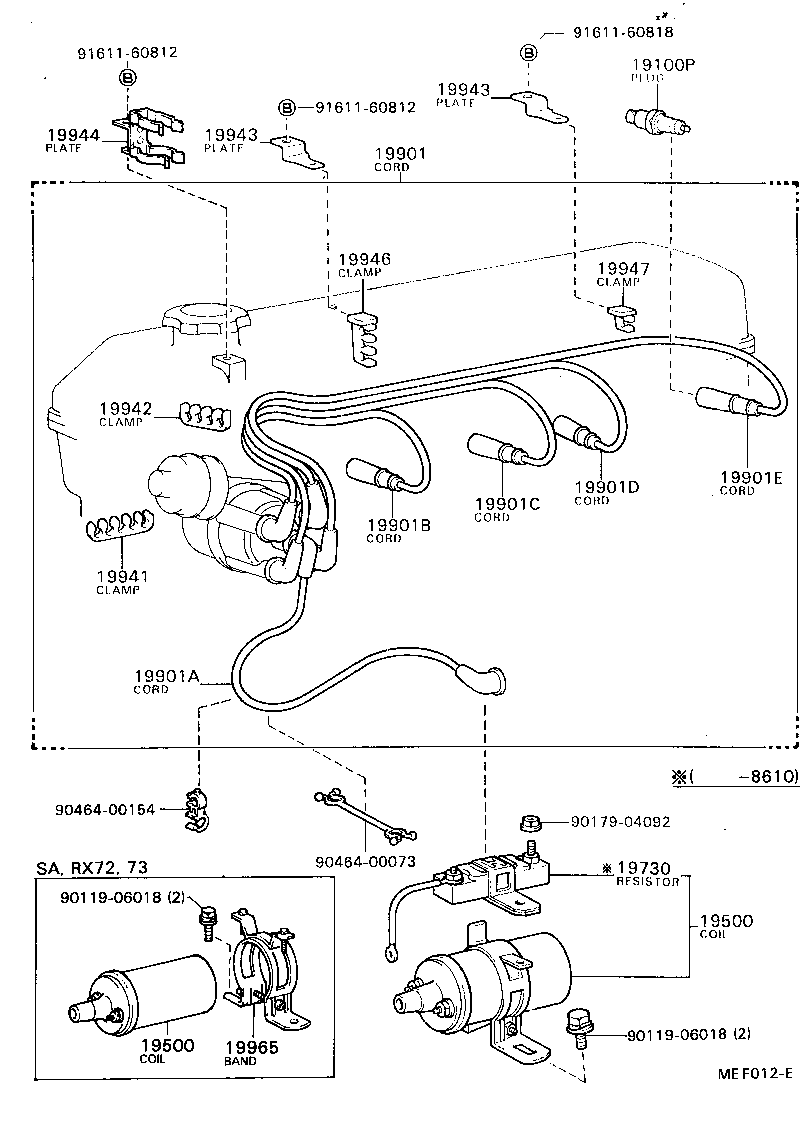

(8408- )21R,22R

Click highlighted areas on diagram

diagram 19100P 19500 19500 19730 19901 19901A 19901B 19901C 19901D 19901E 19941 19942 19943 19943 19944 19946 19947 19965 9011906018 9011906018 9017904092 9046400073 9046400154 9161160812 9161160812 9161160818
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

21R,22R..RX7#

W16EXR-U,W16EXR-U

 6
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21357

21R,22R..RX7#

 1
19901A - CORD, COIL RESISTIVE
90919-13208

21R,22R..RX7#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

21R,22R..RX7#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

21R,22R..RX7#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

21R,22R..RX7#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

21R,22R..RX7#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

21R,22R..RX7#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

21R,22R..RX7#

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

22R..RX7#

 2
19943-35010

22R..RX7#

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38011

22R..RX7#

 2
19943-35010

22R..RX7#

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-35010

22R..RX7#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

21R,22R..RX7#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

21R,22R..RX7#

 1
Common parts
90119-06018
90179-04092
90464-00073
90464-00154
91611-60812
91611-60818
