RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )2L

Click highlighted areas on diagram

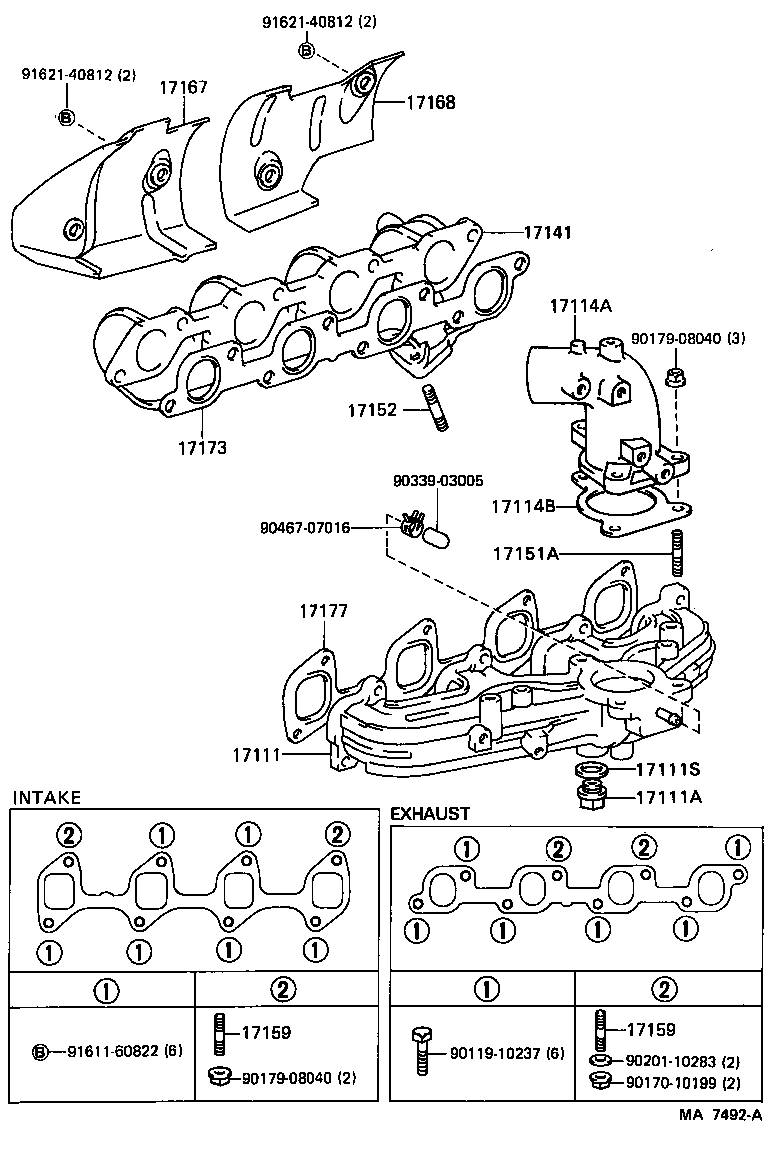

diagram 17111 17111A 17111S 17114A 17114B 17141 17151A 17152 17159 17159 17167 17168 17173 17177 9011910237 9017010199 9017908040 9017908040 9020110283 9033903005 9046707016 9161160822 9162140812 9162140812
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-35040

21R,22R..RX7#

 1
17111A - PLUG, NO.1
90345-51025

21R,22R..RX7#

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

21R,22R..RX7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

21R,22R..RX7#

INTAKE MANIFOLD

 2
90116-10067

21R,22R..RX7#

EXHAUST MANIFOLD,UPR

 4
90116-10064

21R,22R..RX7#

EXHAUST MANIFOLD,LWR

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

21R,22R..RX7#

INTAKE MANIFOLD

 2
90116-10067

21R,22R..RX7#

EXHAUST MANIFOLD,UPR

 4
90116-10064

21R,22R..RX7#

EXHAUST MANIFOLD,LWR

 4
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

21R,22R..RX7#

 1
17167-35070

21R,22R..RX7#..GEN

W/HOT AIR INTAKE

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35040

21R,22R..RX7#..GEN,SA

 1
Common parts
90119-10237
90170-10199
90179-08040
90201-10283
90339-03005
90467-07016
91611-60822
91621-40812

(8408- )21R,22R

Click highlighted areas on diagram

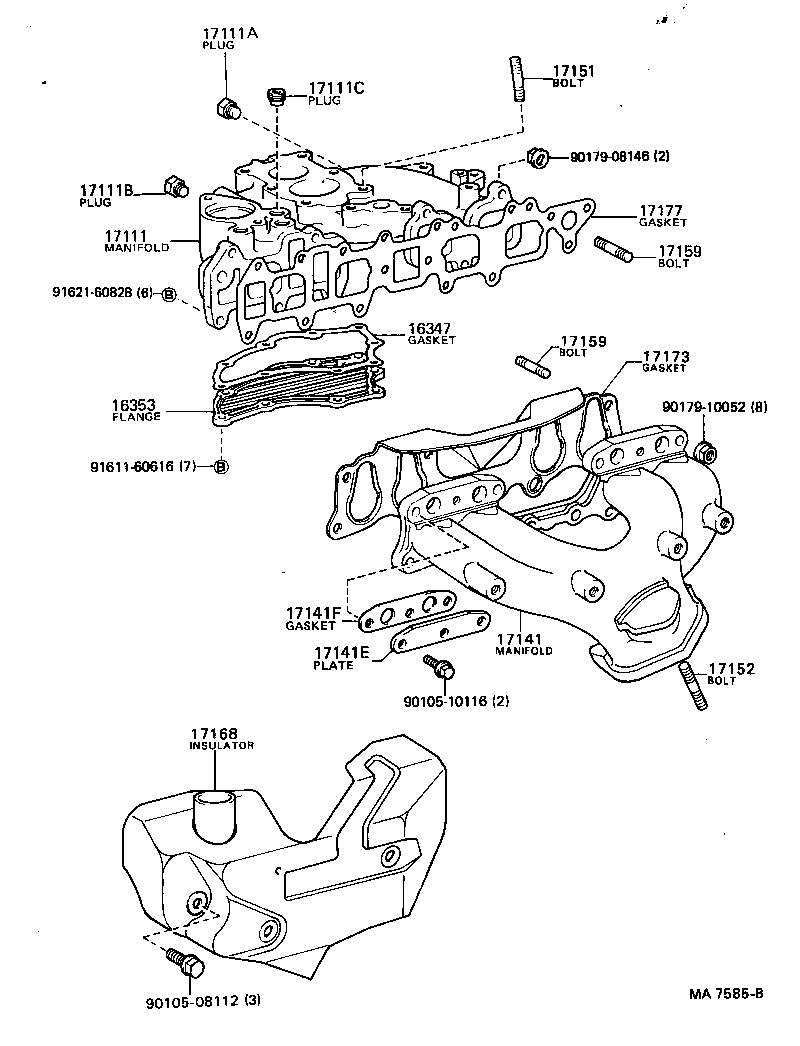

diagram 16347 16353 17111 17111A 17111B 17111C 17141 17141E 17141F 17151 17152 17159 17159 17168 17173 17177 9010508112 9010510116 9017908146 9017910052 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35030

21R,22R..RX7#

 1
16353 - FLANGE, WATER BY-PASS
16353-35030

21R,22R..RX7#

 1
17111 - MANIFOLD, INTAKE
17111-35040

21R,22R..RX7#

 1
17111A - PLUG, NO.1
90345-51025

21R,22R..RX7#

 1
17111B - PLUG, NO.2
90345-53007

21R,22R..RX7#

 3
17111C - PLUG, NO.3
90340-16002

21R,22R..RX7#

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

21R,22R..RX7#

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087

21R,22R..RX7#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

21R,22R..RX7#

INTAKE MANIFOLD

 2
90116-10067

21R,22R..RX7#

EXHAUST MANIFOLD,UPR

 4
90116-10064

21R,22R..RX7#

EXHAUST MANIFOLD,LWR

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08172

21R,22R..RX7#

INTAKE MANIFOLD

 2
90116-10067

21R,22R..RX7#

EXHAUST MANIFOLD,UPR

 4
90116-10064

21R,22R..RX7#

EXHAUST MANIFOLD,LWR

 4
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17167-35090

21R,22R..RX7#

 1
17167-35070

21R,22R..RX7#..GEN

W/HOT AIR INTAKE

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35040

21R,22R..RX7#..GEN,SA

 1
Common parts
90105-08112
90105-10116
90179-08146
90179-10052
91611-60616
91621-60828
