RX72L-XEPES (1987)

Toyota Cressida

Production May 1987 - Aug 1988
Engine 22R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

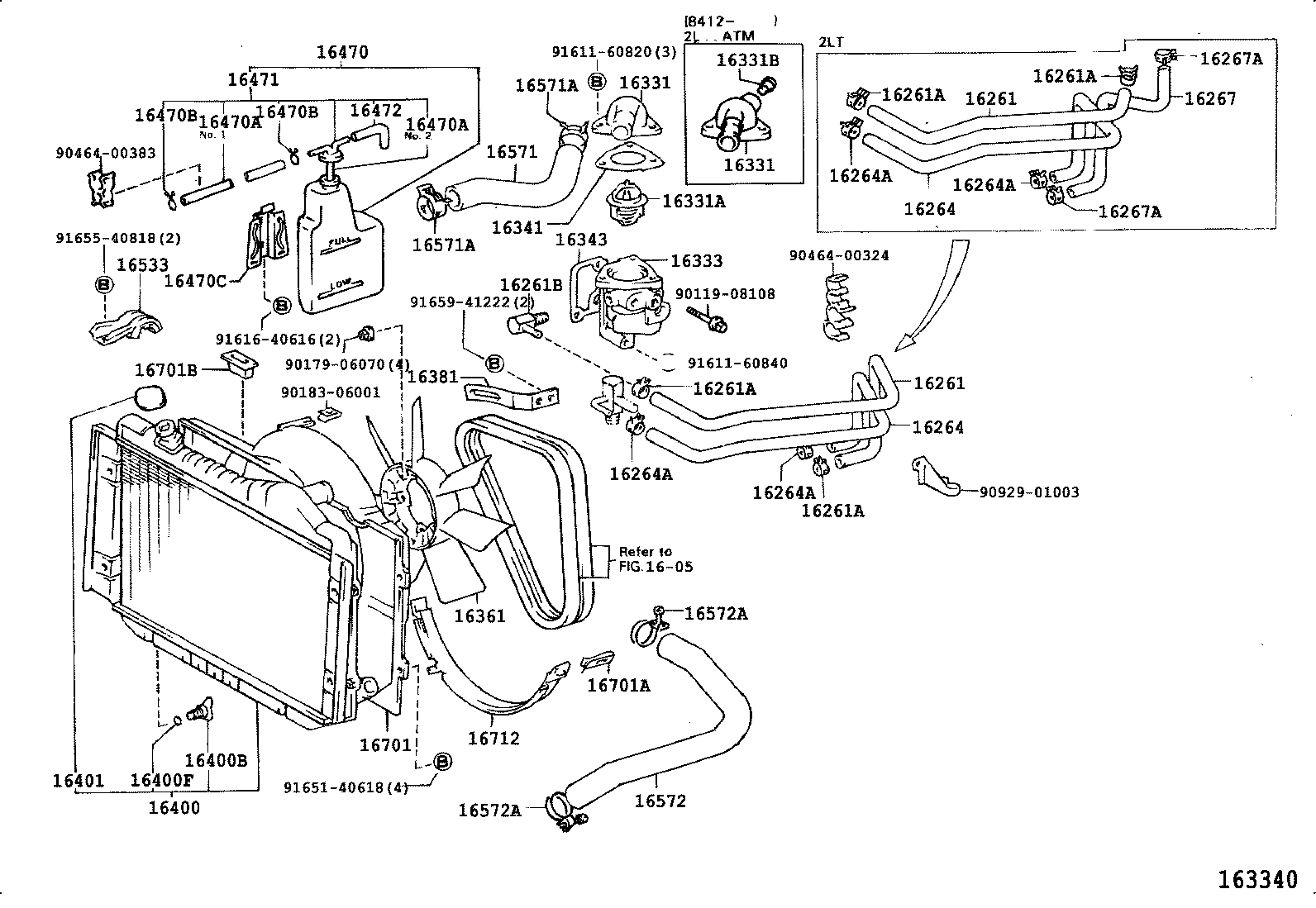

(8408- )2L#

Click highlighted areas on diagram

diagram 1605 16261 16261 16261A 16261A 16261A 16261A 16261B 16264 16264 16264A 16264A 16264A 16264A 16267 16267A 16267A 16331 16331 16331A 16331B 16333 16341 16343 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16470C 16471 16472 16533 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16701B 16712 9011908108 9017906070 9018306001 9046400324 9046400383 9092901003 9161160820 9161160840 9161640616 9165140618 9165540818 9165941222
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-35040

21R,22R..RX7#

 1
16261 - HOSE, WATER BY-PASS
16261-35040

21R,22R..RX7#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

21R,22R..RX7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

21R,22R..RX7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

21R,22R..RX7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

21R,22R..RX7#

 2
16331 - OUTLET, WATER
16331-35050

21R,22R..RX7#

 1
16331 - OUTLET, WATER
16331-35050

21R,22R..RX7#

 1
16341 - GASKET, WATER OUTLET
16341-35010

21R,22R..RX7#

 1
16361 - FAN
16361-38010

21R,22R..RX7#

7 BLADES,OD=380

 1
16381 - BAR, FAN BELT ADJUSTING
16381-35010

21R,22R..RX7#

 1
16400 - RADIATOR ASSY
16400-35430

22R..RX72..4FC..(GEN,SA)

SINGLE ROW

 1
16400-37171

22R..RX72..LHD..4FC..GEN

DOUBLE ROW

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

21R,22R..RX7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

21R,22R..RX7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

21R,22R..RX7#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-72010

21R,22R..RX7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

21R,22R..RX7#

*H,L=200,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

21R,22R..RX7#

*H,L=200,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R,22R..RX7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R,22R..RX7#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-72010

21R,22R..RX7#

 1
16472 - HOSE, BREATHER
85338-95A01

21R,22R..RX7#

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-70010

21R,22R..RX7#

 2
16571 - HOSE, RADIATOR, INLET
16571-37060

21R,22R..RX7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

21R,22R..RX7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

21R,22R..RX7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-37050

21R,22R..RX7#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

21R,22R..RX7#

RADIATOR SIDE

 1
96111-10480

21R,22R..RX7#

PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

21R,22R..RX7#

RADIATOR SIDE

 1
96111-10480

21R,22R..RX7#

PUMP SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-37030

21R,22R..RX7#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

21R,22R..RX7#

W/COOLER

 2
16701B - CUSHION, FAN SHROUD
90541-11002

21R,22R..RX7#

 2
16712 - SHROUD, FAN, NO.2
16712-34070

21R,22R..RX7#

W/COOLER

 1
Common parts
90119-08108
90179-06070
90183-06001
90464-00324
90464-00383
90929-01003
91611-60820
91611-60840
91616-40616
91651-40618
91655-40818
91659-41222

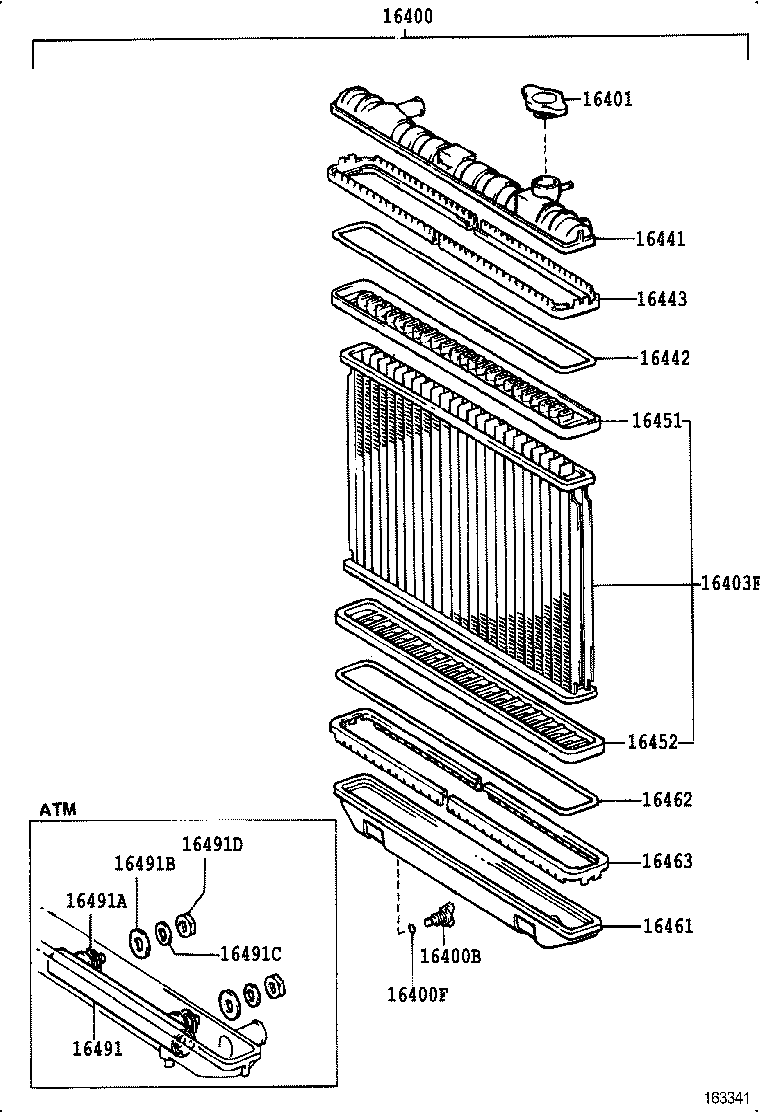

Linked diagrams
1605

(8408- )21R,22R

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16403F 16441 16442 16443 16451 16452 16461 16462 16463 16491 16491A 16491B 16491C 16491D
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-35430

22R..RX72..4FC..(GEN,SA)

SINGLE ROW

 1
16400-37171

22R..RX72..LHD..4FC..GEN

DOUBLE ROW

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-54010

21R,22R..RX7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

21R,22R..RX7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

21R,22R..RX7#

 1
16403F - CORE SUB-ASSY, RADIATOR
16403-37160

21R,22R..RX7#..LHD

DOUBLE ROW

 1
16403-37090

22R..RX72..4FC..(GEN,SA)

SINGLE ROW

 1
16441 - TANK, RADIATOR, UPPER
16441-37160

21R,22R..RX7#..LHD

DOUBLE ROW

 1
16441-73060

21R,22R..RX7#..GEN,SA

SINGLE ROW

 1
16442 - RING, O(FOR RADIATOR UPPER TANK)
16442-35070

21R,22R..RX7#..GEN,SA

SINGLE ROW

 1
16462-35070

21R,22R..RX7#..LHD

DOUBLE ROW

 1
16443 - PLATE, RADIATOR TANK, LOCK, UPPER
16463-35160

21R,22R..RX7#..LHD

DOUBLE ROW

 2
16443-35161

21R,22R..RX7#..GEN,SA

SINGLE ROW

 2
16451 - PLATE, RADIATOR CORE, UPPER
16452-37160

21R,22R..RX7#..LHD

DOUBLE ROW

 1
16451-35070

21R,22R..RX7#..GEN,SA

SINGLE ROW

 1
16452 - PLATE, RADIATOR CORE, LOWER
16452-35070

21R,22R..RX7#..GEN,SA

SINGLE ROW

 1
16452-37160

21R,22R..RX7#..LHD

DOUBLE ROW

 1
16461 - TANK, RADIATOR, LOWER
16461-63150

21R,22R..RX70,72..4FC

 1
16462 - RING, O(FOR RADIATOR LOWER TANK)
16462-35070

21R,22R..RX7#

 1
16463 - PLATE, RADIATOR TANK, LOCK, LOWER
16463-35160

21R,22R..RX7#

 2
16491 - COOLER, OIL(FOR ATM)
16491-37171

22R..RX72..4FC

 1
16491A - RING, O(FOR ATM OIL COOLER)
16492-35080

21R,22R..RX70,72..4FC

 2
16491B - WASHER, PLATE(FOR ATM OIL COOLER)
16493-15130

21R,22R..RX70,72..4FC

 2
16491C - WASHER, SPRING(FOR ATM OIL COOLER)
16494-15130

21R,22R..RX70,72..4FC

 2
16491D - NUT(FOR ATM OIL COOLER)
16496-15130

21R,22R..RX70,72..4FC

 2

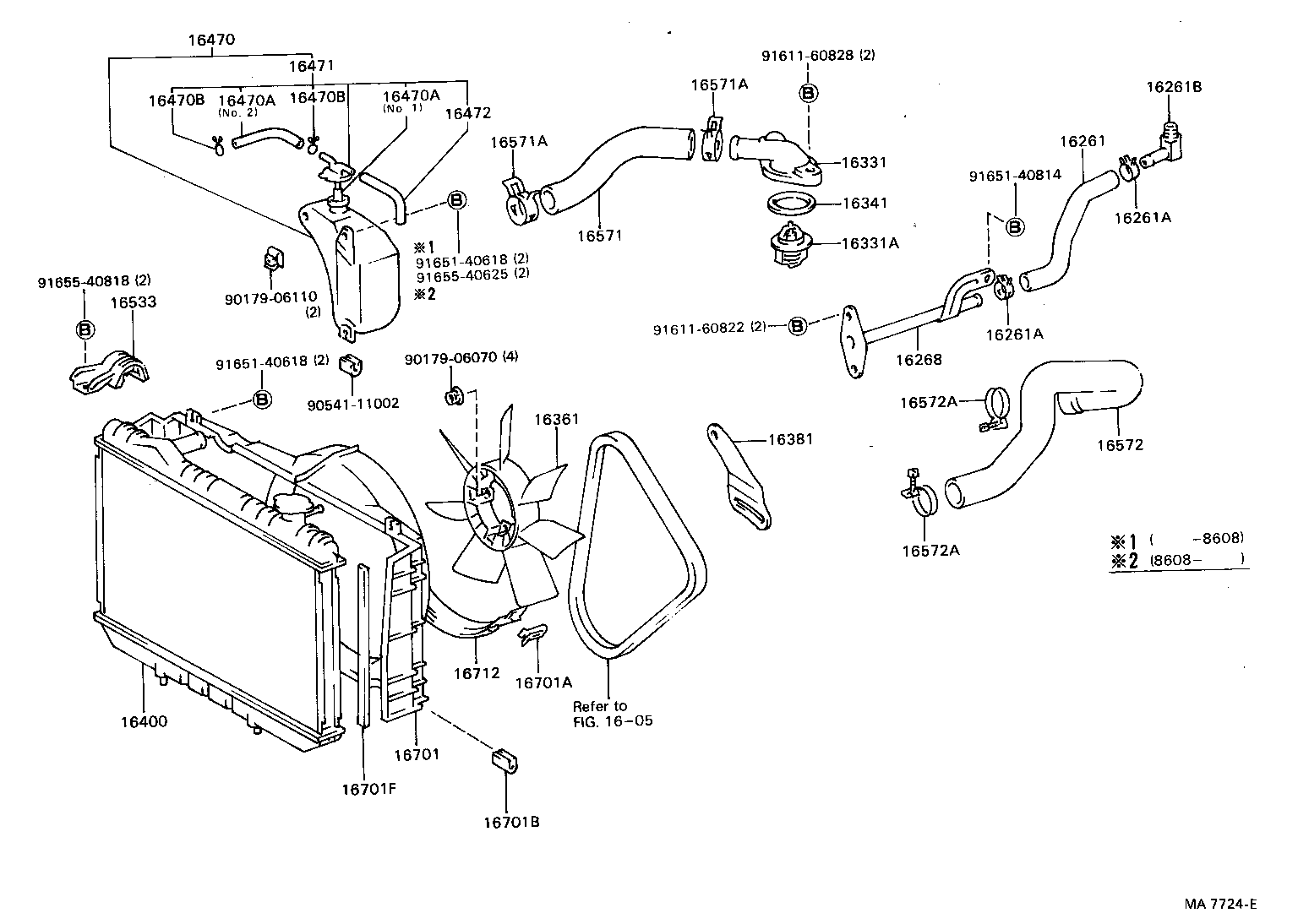

(8408- )21R,22R

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16261B 16268 16331 16331A 16341 16361 16381 16400 16470 16470A 16470A 16470B 16470B 16471 16472 16533 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16701B 16701F 16712 9017906070 9017906110 9054111002 9161160822 9161160828 9165140618 9165140618 9165140814 9165540625 9165540818
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-35040

21R,22R..RX7#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

21R,22R..RX7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

21R,22R..RX7#

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-35010

21R,22R..RX7#

 1
16331 - OUTLET, WATER
16331-35050

21R,22R..RX7#

 1
16341 - GASKET, WATER OUTLET
16341-35010

21R,22R..RX7#

 1
16361 - FAN
16361-38010

21R,22R..RX7#

7 BLADES,OD=380

 1
16381 - BAR, FAN BELT ADJUSTING
16381-35010

21R,22R..RX7#

 1
16400 - RADIATOR ASSY
16400-35430

22R..RX72..4FC..(GEN,SA)

SINGLE ROW

 1
16400-37171

22R..RX72..LHD..4FC..GEN

DOUBLE ROW

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-72010

21R,22R..RX7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

21R,22R..RX7#

*H,L=200,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

21R,22R..RX7#

*H,L=200,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R,22R..RX7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21R,22R..RX7#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-72010

21R,22R..RX7#

 1
16472 - HOSE, BREATHER
85338-95A01

21R,22R..RX7#

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-70010

21R,22R..RX7#

 2
16571 - HOSE, RADIATOR, INLET
16571-37060

21R,22R..RX7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

21R,22R..RX7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

21R,22R..RX7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-37050

21R,22R..RX7#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

21R,22R..RX7#

RADIATOR SIDE

 1
96111-10480

21R,22R..RX7#

PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

21R,22R..RX7#

RADIATOR SIDE

 1
96111-10480

21R,22R..RX7#

PUMP SIDE

 1
16701 - SHROUD SUB-ASSY, FAN
16711-37030

21R,22R..RX7#

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

21R,22R..RX7#

W/COOLER

 2
16701B - CUSHION, FAN SHROUD
90541-11002

21R,22R..RX7#

 2
16701F - SEAL(FOR FAN SHROUD)
16832-41010

21R,22R..RX7#

 2
16712 - SHROUD, FAN, NO.2
16712-34070

21R,22R..RX7#

W/COOLER

 1
Common parts
90179-06070
90179-06110
90541-11002
91611-60822
91611-60828
91651-40618
91651-40814
91655-40625
91655-40818
Linked diagrams
1605
