RX72L-XEMESV (1986)
Toyota Cressida
Production
Aug 1986
-
Aug 1988
Engine
22R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )22R

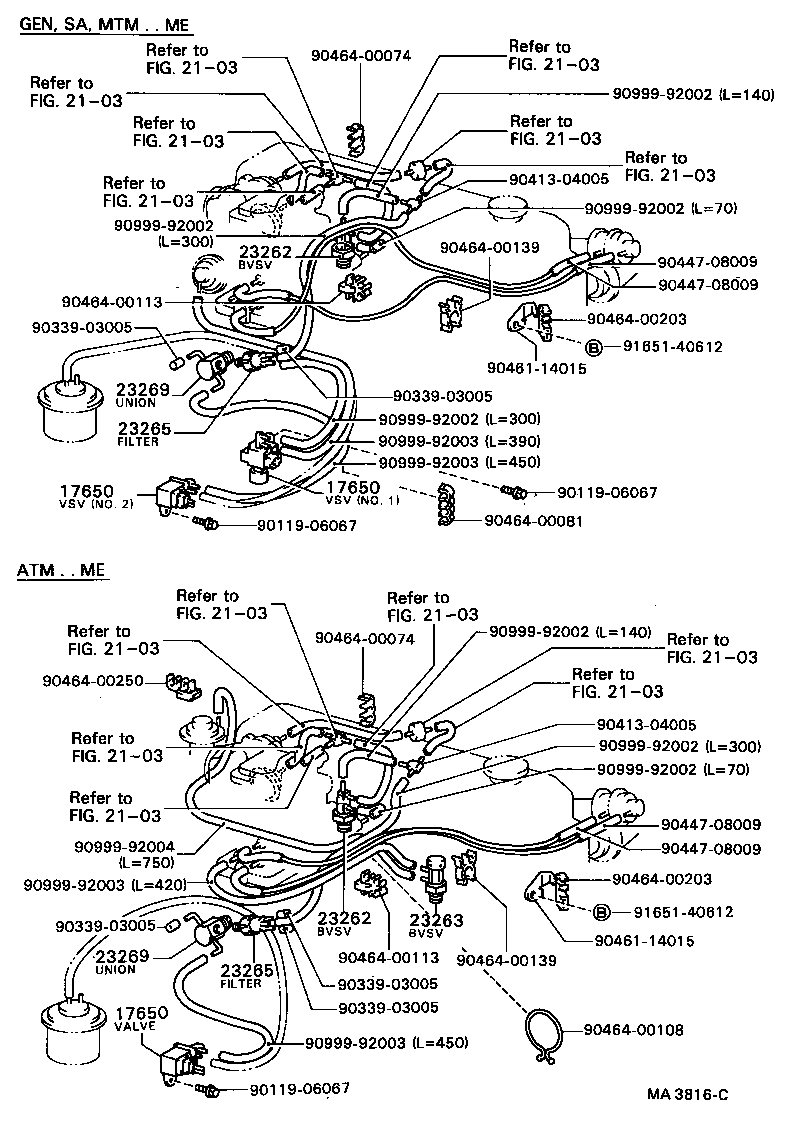

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12040 |
22R..RX72..5F..ME NO.2 |
1 | ||
| 89570-22150 |
22R..RX72..5F..ME NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12040 |
22R..RX72..5F..ME NO.2 |
1 | ||
| 89570-22150 |
22R..RX72..5F..ME NO.1 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12040 |
22R..RX72..5F..ME NO.2 |
1 | ||
| 89570-22150 |
22R..RX72..5F..ME NO.1 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
21R,22R..RX7# |
1 | ||
| 90925-05080 |
22R..RX7# |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-27010 |
21R,22R..RX7# |
1 | ||
| 90925-05080 |
22R..RX7# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R,22R..RX7# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R,22R..RX7# |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54030 |
22R..RX72..ME |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54030 |
22R..RX72..ME |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90447-08009 | ||||
| 90461-14015 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00108 | ||||
| 90464-00113 | ||||
| 90464-00139 | ||||
| 90464-00203 | ||||
| 90464-00250 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 2103 | ||||
