RX70RG-XWMNS (1984)
Toyota Cressida
Production
Nov 1984
-
May 1987
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )WG

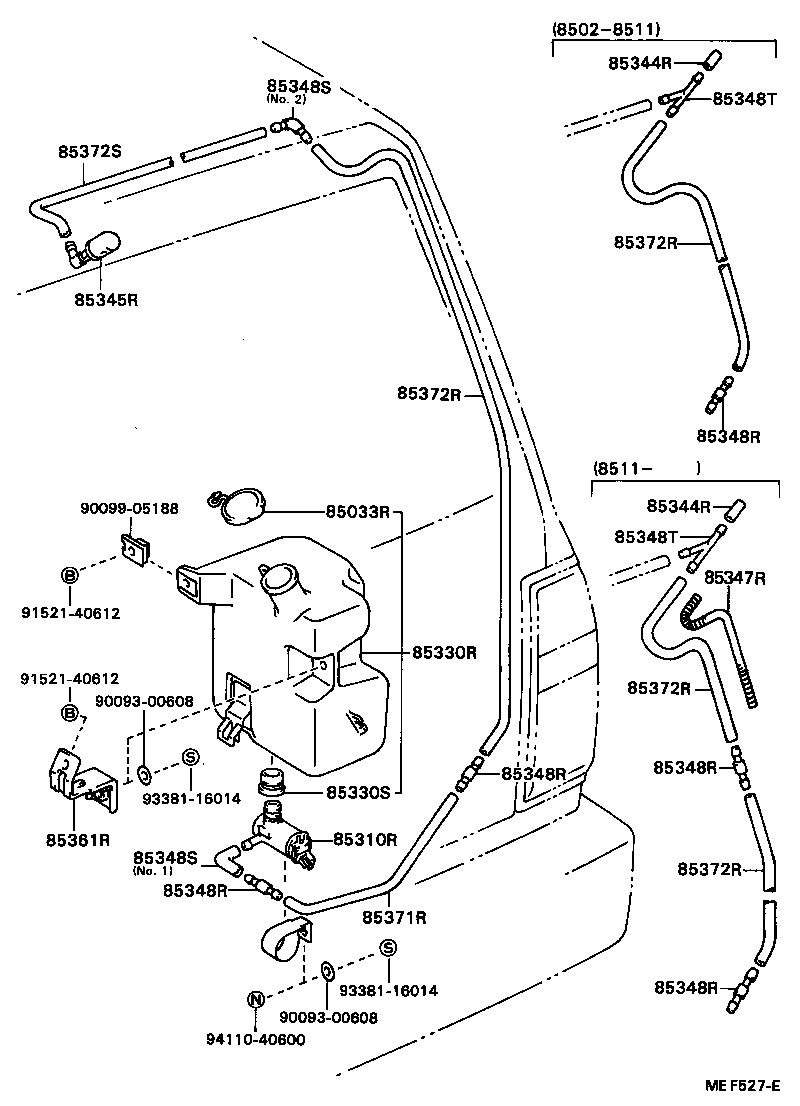

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
RX70..WG..(GEN,SA) |
2 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
RX70..WG..(GEN,SA) |
2 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
RX70..WG..(GEN,SA) |
2 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
RX70..WG..(GEN,SA) |
2 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
RX70..WG..(GEN,SA) |
2 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
RX70..WG..GEN NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
RX70..WG..GEN NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
RX70..WG..GEN *H,L=1700 |
1 | ||
| 90446-07001 |
RX70..WG..(GEN,SA) *H,L=1525 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
RX70..WG..GEN *H,L=1700 |
1 | ||
| 90446-07001 |
RX70..WG..(GEN,SA) *H,L=1525 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
RX70..WG..GEN *H,L=1700 |
1 | ||
| 90446-07001 |
RX70..WG..(GEN,SA) *H,L=1525 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
RX70..WG..GEN *H,L=1700 |
1 | ||
| 90446-07001 |
RX70..WG..(GEN,SA) *H,L=1525 |
1 | ||
| Common parts | ||||
| 90093-00608 | ||||
| 90099-05188 | ||||
| 91521-40612 | ||||
| 93381-16014 | ||||
| 94110-40600 | ||||
