RX70R-XEPNSN (1985)
Toyota Cressida
Production
Feb 1985
-
May 1987
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8502-8608)21R..SA ; (8608-8705)21R,22R..RX70,72..ME,SA ; (8705- )22R

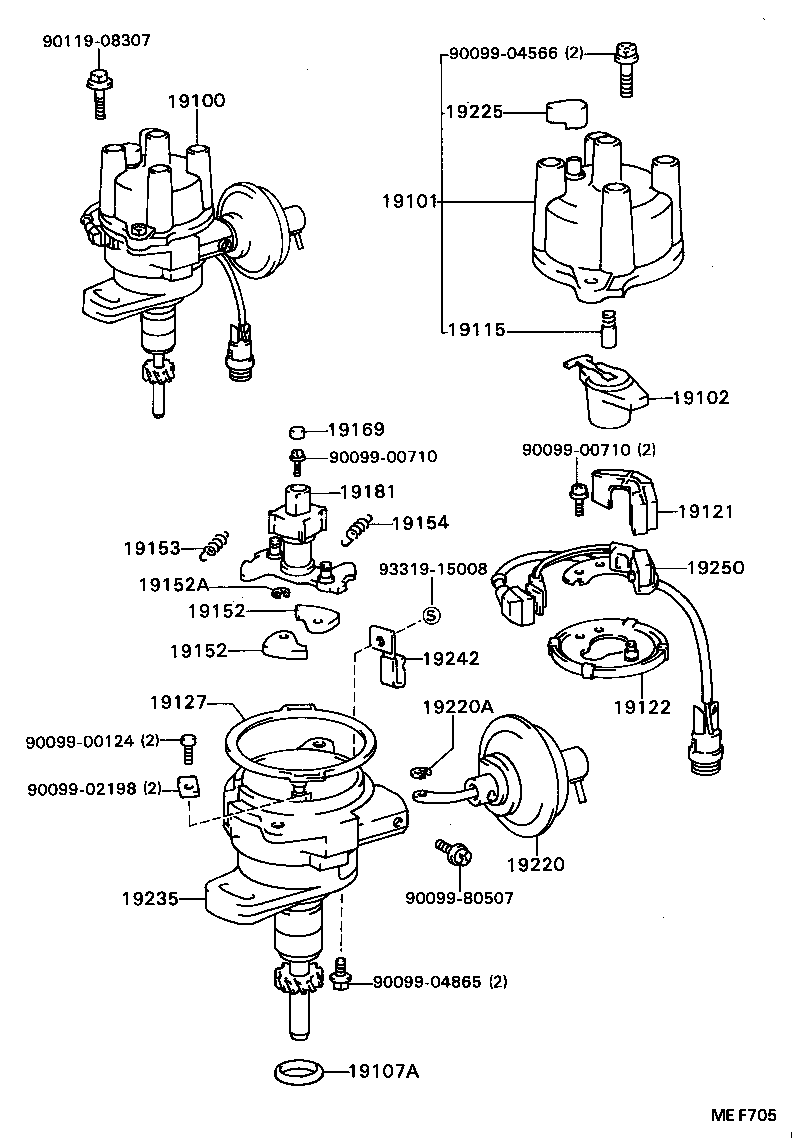

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-37170 |
21R..RX70..SA |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-37051 |
21R..RX70,71 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33012 |
21R..RX70,71 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
21R,22R..RX7# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
21R,22R..RX7# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-13260 |
21R..RX70..SA |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-88263 |
21R..RX70..SA |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-38150 |
21R..RX70,71 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-71010 |
21R..RX70..SA |
2 | ||
| 19152-63010 |
21R..RX70..SA |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-71010 |
21R..RX70..SA |
2 | ||
| 19152-63010 |
21R..RX70..SA |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
21R..RX70..SA |
2 | ||
| 90099-07122 |
21R,22R..RX70,72..ME,SA |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-37170 |
21R..RX70..SA |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-37170 |
21R..RX70..SA |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
21R,22R..RX7# |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-13020 |
21R..RX70..SA |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-37140 |
21R..RX70..SA |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
21R,22R..RX7# |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-41140 |
21R,22R..RX7# |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-37140 |
21R..RX70..SA |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-37080 |
21R,22R..RX70,72..ME,SA |
1 | ||
| 19242-37080 |
21R..RX70..SA |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-37170 |
21R..RX70..SA |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-02198 | ||||
| 90099-04566 | ||||
| 90099-04865 | ||||
| 90099-80507 | ||||
| 90119-08307 | ||||
| 93319-15008 | ||||
