RX70R-XEMNS (1984)

Toyota Cressida

Production Aug 1984 - May 1987
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )RX7#..MTM

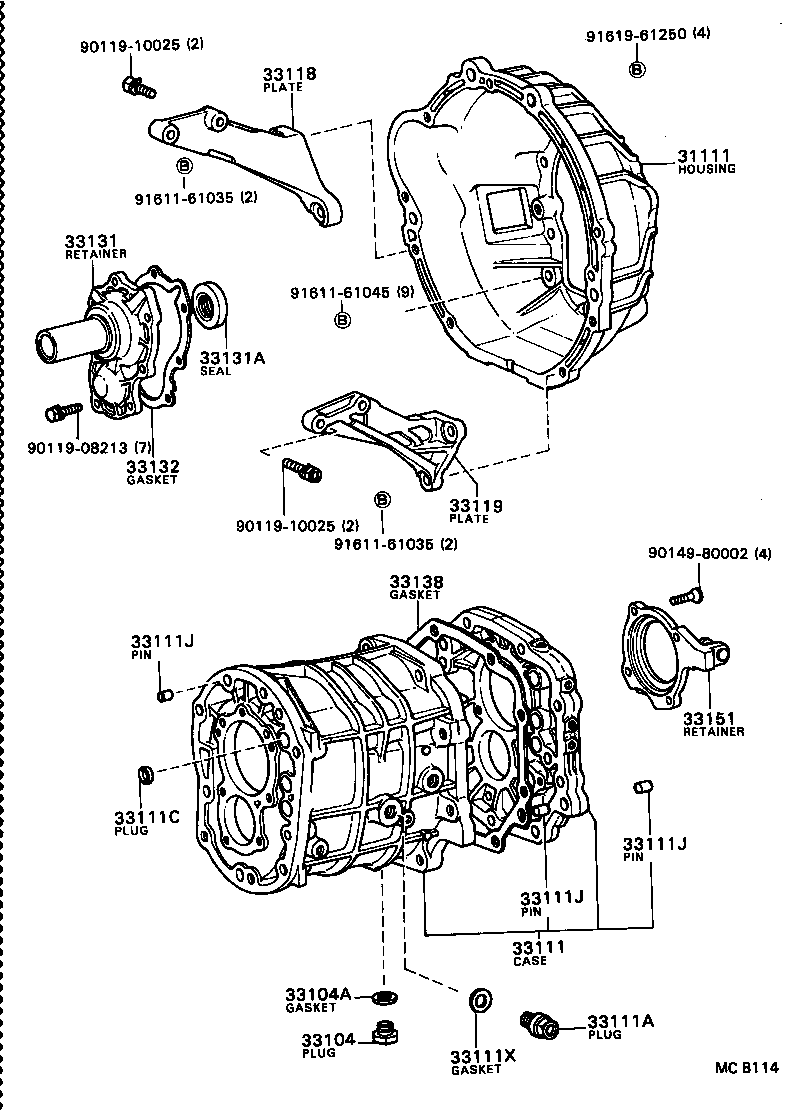

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111J 33111X 33118 33119 33131 33131A 33132 33138 33151 9011908213 9011910025 9011910025 9014980002 9161161035 9161161035 9161161045 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20171

RX7#..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-22021

GX71,MX73,RX70..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

GX71,LX7#,MX73,RX7#,YX70..MTM

OD=14

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX71,LX7#,MX73,RX7#,YX70..MTM

L=16,OD=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX71,LX7#,MX73,RX7#,YX70..MTM

L=16,OD=12

 6
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

GX71,LX7#,MX73,RX7#,YX70..MTM

L=16,OD=12

 6
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22030

RX7#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22021

RX7#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-22020

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-22010

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-22010

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33107-22010

GX71,LX7#,MX73,RX7#,YX70..MTM

 1
Common parts
90119-08213
90119-10025
90149-80002
91611-61035
91611-61045
91619-61250
