RX70LG-XWKNSV (1984)
Toyota Cressida
(8411- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
GX71,MX7#,RX70,YX70 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-14010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22110 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29185 |
RX70..WG |
1 | ||
| 77001-29186 |
RX70..WG |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-23050 |
LX70,MX72,RX70..WG |
1 | ||
| 77201-23040 |
LX70,MX72,RX70..WG |
1 | ||
| 77201-23010 |
LX70,MX72,RX70..WG |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-14090 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-23020 |
LX70,MX72,RX70..WG |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-22020 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-22020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-23010 |
LX70,MX72,RX70..WG..LHD |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-22060 |
GX71,LX7#,MX7#,RX70,YX70..SED,WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22030 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-23010 |
LX70,MX72,RX70..WG |
1 | ||
| Common parts | ||||
| 90119-06074 | ||||
| 90119-06120 | ||||
| 90119-08499 | ||||
| 90119-10086 | ||||
| 90159-50047 | ||||
| 90159-50160 | ||||
| 90159-50161 | ||||
| 90159-60008 | ||||
| 90159-60262 | ||||
| 90179-05020 | ||||
| 90179-06085 | ||||
| 90179-10037 | ||||
| 90179-10074 | ||||
| 90183-06006 | ||||
| 90189-06006 | ||||
| 90460-63008 | ||||
| 90464-00355 | ||||
| 90541-08013 | ||||
| 93319-14010 | ||||
| 96132-30600 | ||||

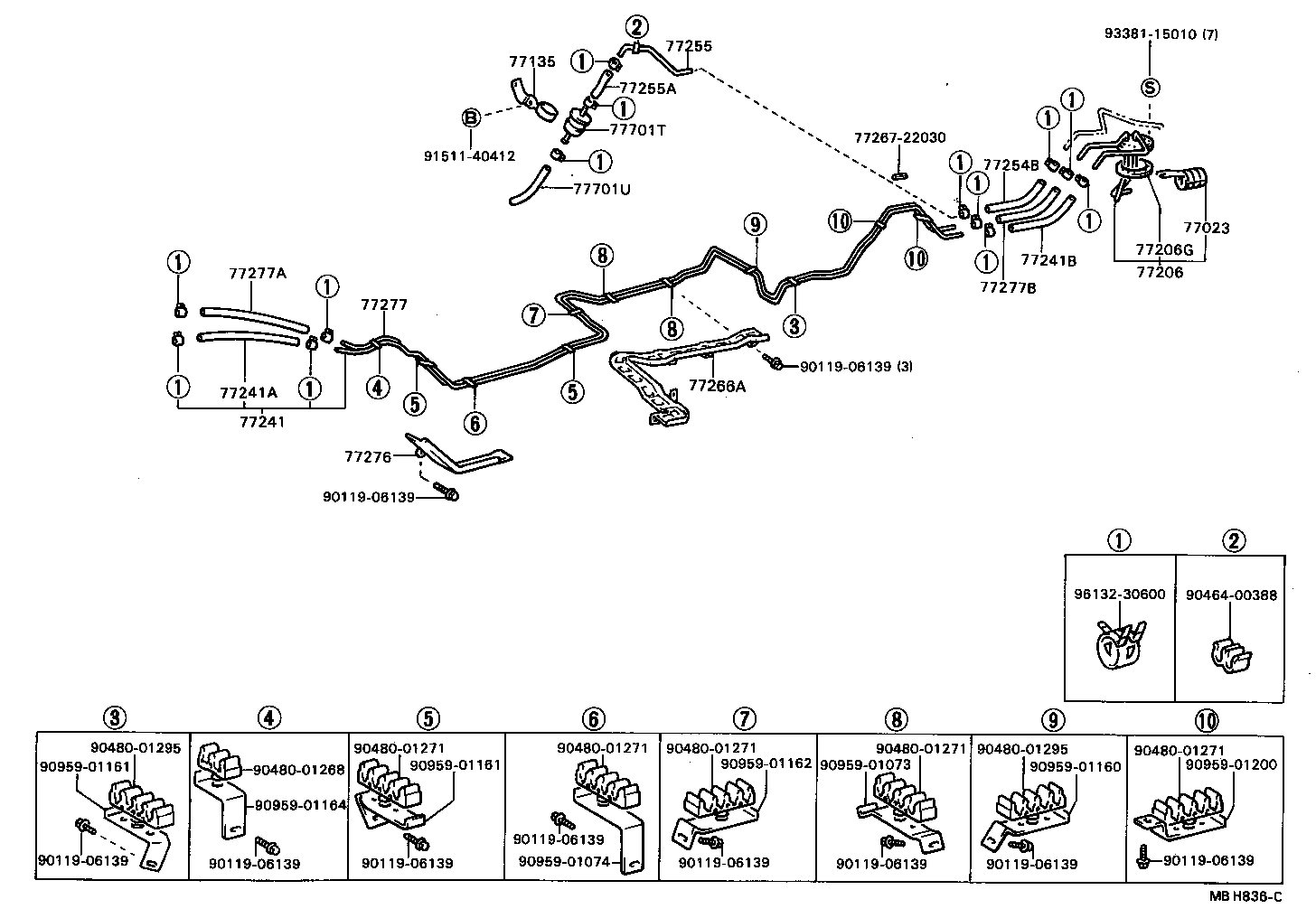

(8411-8508)RX70..WG ; (8508- )WG..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
RX7#,YX70 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-23010 |
RX70..WG |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
LX7#,RX7#,YX70 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
RX72..ME;RX70,71,YX70 *H,L=280 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
LX70,MX72,RX70..WG *H,L=280 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06010 |
GX71,RX70..ME *H,L=60,EXCL/SAUDI ARABIA SPEC |
1 | ||
| 95332-06006 |
GX71,RX70..ME *H,L=60,EXCL/SAUDI ARABIA SPEC |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22030 |
RX7# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12040 |
RX7# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
GX71,RX70..ME EXCL/SAUDI ARABIA |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06010 |
RX70..WG *H,L=80,EXCL/SAUDI ARABIA SPEC |
1 | ||
| Common parts | ||||
| 77267-22030 | ||||
| 90119-06139 | ||||
| 90464-00388 | ||||
| 90480-01268 | ||||
| 90480-01271 | ||||
| 90480-01295 | ||||
| 90959-01073 | ||||
| 90959-01074 | ||||
| 90959-01160 | ||||
| 90959-01161 | ||||
| 90959-01162 | ||||
| 90959-01164 | ||||
| 90959-01200 | ||||
| 91511-40412 | ||||
| 93381-15010 | ||||
| 96132-30600 | ||||
(8411- )WG..ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-14030 |
RX7#,YX70 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14010 |
LX7#,RX7#,YX70 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
RX72..ME;RX70,71,YX70 *H,L=280 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77019-23040 |
RX70..WG..ME SAUDI ARABIA SPEC |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
RX70..WG..ME *H,L=280,SAUDI ARABIA SPEC |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
LX70,MX72,RX70..WG *H,L=280 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22030 |
RX7# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12040 |
RX7# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-22310 |
RX70..ME |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19930 |
RX70..ME *H,L=280,MARK=#*,SAUDI ARABIA SPEC |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 77264-22060 |
MX73,RX70..ME |
1 | ||
| Common parts | ||||
| 90119-06139 | ||||
| 90464-00141 | ||||
| 90464-00388 | ||||
| 90467-12011 | ||||
| 90480-01268 | ||||
| 90480-01271 | ||||
| 90480-01295 | ||||
| 90480-14470 | ||||
| 90959-01073 | ||||
| 90959-01074 | ||||
| 90959-01160 | ||||
| 90959-01161 | ||||
| 90959-01162 | ||||
| 90959-01164 | ||||
| 90959-01200 | ||||
| 91651-40614 | ||||
| 93381-15010 | ||||
| 96132-30060 | ||||
