RX70L-XTPESV (1985)

Toyota Cressida

Production Apr 1985 - Aug 1986
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8504- )HT

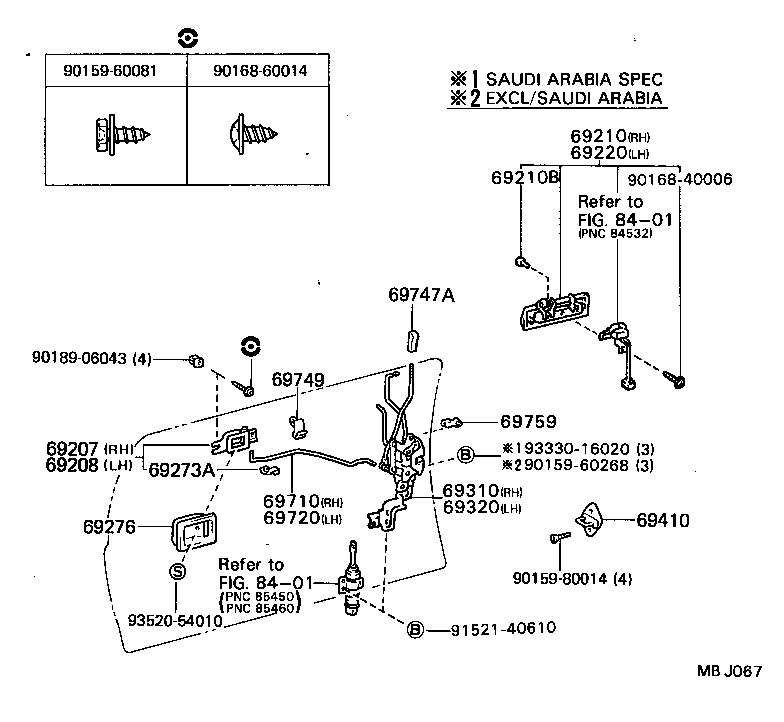

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273A 69276 69310 69320 69410 69710 69720 69747A 69749 69759 8401 8401 9015960081 9015960268 9015980014 9016840006 9016860014 9018906843 9152140610 9333016020 9352054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-22030

GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-22030

GX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-22080

RX70,YX70;MX73..EUR,ME;GX71,LX7#,MX72..LHD

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GX71,LX7#,MX7#,RX7#,YX70

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-22070

LX7#,MX7#,RX7#,YX70..GL,GLX,GT,STD,XL

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20110

GX71,LX7#,MX73,RX70..GL,GLX

RH

 1
69759-20100

GX71,LX7#,MX73,RX70..GL,GLX

LH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-2205002

GX71,LX7#,MX7#,RX70

MAROON,RED

 2
69277-2205003

GX71,LX7#,MX7#,RX70,YX70

GRAY,COOL GRAY

 2
69277-2205005

GX71,LX7#,MX7#,RX70,YX70

BEIGE,BEIGE

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-22300

GX71,MX73,RX70..HT

EXCL/SAUDI ARABIA

 1
69310-22290

GX71,MX73,RX70..HT

SAUDI ARABIA SPEC

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-22290

GX71,MX73,RX70..HT

EXCL/SAUDI ARABIA

 1
69320-22280

GX71,MX73,RX70..HT

SAUDI ARABIA SPEC

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

GX71,LX7#,MX7#,RX7#,YX70

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010

GX71,LX7#,MX7#,RX7#,YX70

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

GX71,LX7#,MX7#,RX7#,YX70

LH

 1
69759-20050

GX71,LX7#,MX7#,RX7#,YX70

RH

 1
Common parts
90159-60081
90159-60268
90159-80014
90168-40006
90168-60014
90189-06843
91521-40610
93330-16020
93520-54010
Linked diagrams
8401
