RX70L-XTMESV (1985)

Toyota Cressida

Production Apr 1985 - Aug 1986
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8504- )HT

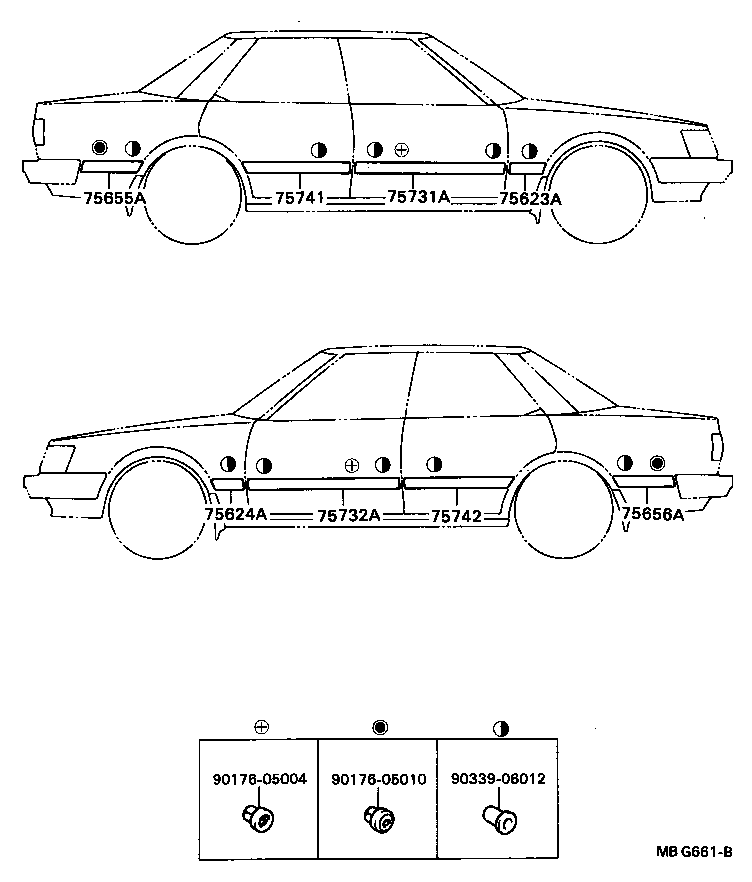

Click highlighted areas on diagram

diagram 75623A 75624A 75655A 75656A 75731A 75732A 75741 75742 9017605004 9017605010 9033906012
Part # Description Qty Price
Common parts
90176-05004
90176-05010
90339-06012

(8504- )HT

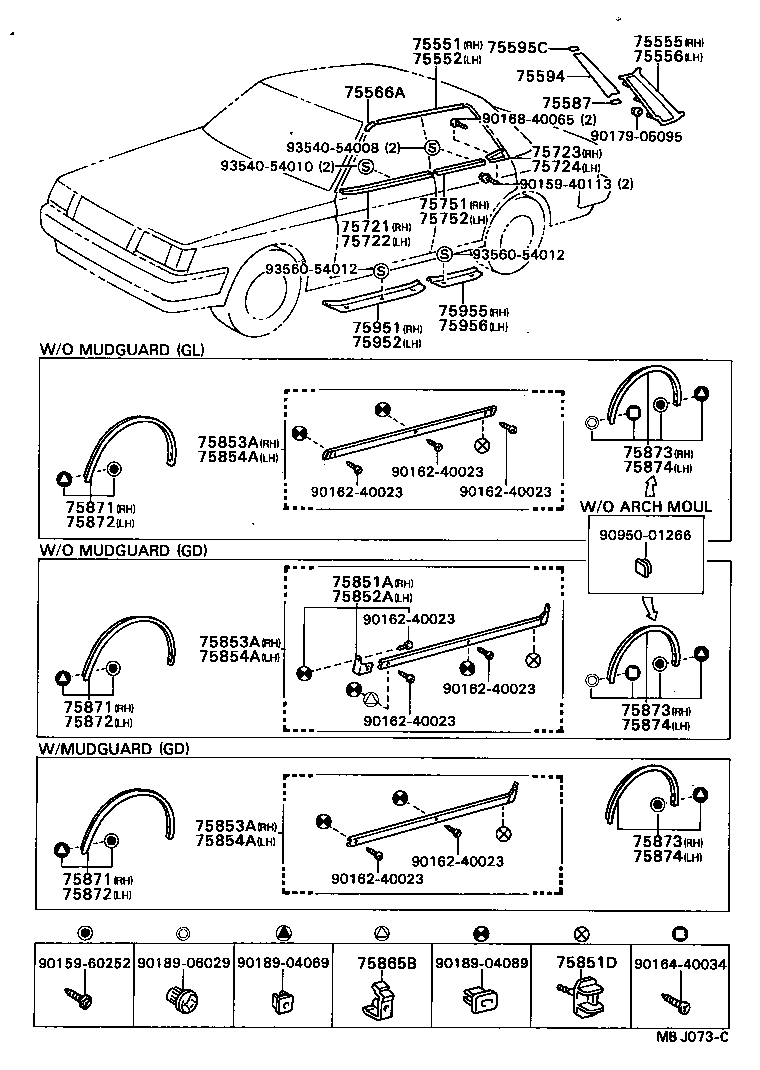

Click highlighted areas on diagram

diagram 75551 75552 75555 75556 75566A 75587 75594 75595C 75721 75722 75723 75724 75751 75752 75851A 75851D 75852A 75853A 75853A 75853A 75854A 75854A 75854A 75865B 75871 75871 75871 75872 75872 75872 75873 75873 75873 75874 75874 75874 75951 75952 75955 75956 9015940113 9015960252 9016240023 9016240023 9016240023 9016240023 9016240023 9016240023 9016240023 9016240023 9016440034 9016840065 9017905095 9018904069 9018904089 9018906029 9095001266 9354054008 9354054010 9356054012 9356054012
Part # Description Qty Price
75555 - MOULDING, ROOF DRIP SIDE FINISH, REAR RH
75055-22020

GX71,RX70..HT

 1
75055-22050

GX71,RX70..HT

TWO TONE

 1
75556 - MOULDING, ROOF DRIP SIDE FINISH, REAR LH
75056-22020

GX71,RX70..HT

 1
75056-22050

GX71,RX70..HT

TWO TONE

 1
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75867-22050

GX71,LX7#,MX7#,RX7#,YX70..GL,STD,XL

 8
75853A - MOULDING, ROCKER PANEL, CENTER RH
75850-29165

GX71,LX7#,MX7#,RX70..GL,XL

 1
75853A - MOULDING, ROCKER PANEL, CENTER RH
75850-29165

GX71,LX7#,MX7#,RX70..GL,XL

 1
75853A - MOULDING, ROCKER PANEL, CENTER RH
75850-29165

GX71,LX7#,MX7#,RX70..GL,XL

 1
75854A - MOULDING, ROCKER PANEL, CENTER LH
75860-29095

GX71,LX7#,MX7#,RX70..GL,XL

 1
75854A - MOULDING, ROCKER PANEL, CENTER LH
75860-29095

GX71,LX7#,MX7#,RX70..GL,XL

 1
75854A - MOULDING, ROCKER PANEL, CENTER LH
75860-29095

GX71,LX7#,MX7#,RX70..GL,XL

 1
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75871-29055

GX71,LX70,RX70..GEN,ME

W/O MUDGUARD

 1
75871-29065

GX71,LX70,MX73,RX70..GEN,ME

W/MUDGUARD

 1
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75871-29055

GX71,LX70,RX70..GEN,ME

W/O MUDGUARD

 1
75871-29065

GX71,LX70,MX73,RX70..GEN,ME

W/MUDGUARD

 1
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75871-29055

GX71,LX70,RX70..GEN,ME

W/O MUDGUARD

 1
75871-29065

GX71,LX70,MX73,RX70..GEN,ME

W/MUDGUARD

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75872-29045

GX71,LX70,RX70..GEN,ME

W/O MUDGUARD

 1
75872-29055

GX71,LX70,MX73,RX70..GEN,ME

W/MUDGUARD

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75872-29045

GX71,LX70,RX70..GEN,ME

W/O MUDGUARD

 1
75872-29055

GX71,LX70,MX73,RX70..GEN,ME

W/MUDGUARD

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75872-29045

GX71,LX70,RX70..GEN,ME

W/O MUDGUARD

 1
75872-29055

GX71,LX70,MX73,RX70..GEN,ME

W/MUDGUARD

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-29085

GX71,MX73,RX70..HT

W/O MUDGUARD

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-29085

GX71,MX73,RX70..HT

W/O MUDGUARD

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-29085

GX71,MX73,RX70..HT

W/O MUDGUARD

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-29085

GX71,MX73,RX70..HT

W/O MUDGUARD

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-29085

GX71,MX73,RX70..HT

W/O MUDGUARD

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-29085

GX71,MX73,RX70..HT

W/O MUDGUARD

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-2206002

GX71,LX7#,MX7#,RX7#

MAROON,MAROON

 1
67913-2206005

GX71,LX7#,MX7#,RX70,YX70

BEIGE,BEIGE

 1
67913-2206003

GX71,LX7#,MX7#,RX70,YX70

GRAY,COOL GRAY

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-2206005

GX71,LX7#,MX7#,RX70,YX70

BEIGE,BEIGE

 1
67913-2206003

GX71,LX7#,MX7#,RX70,YX70

GRAY,COOL GRAY

 1
67913-2206002

GX71,LX7#,MX7#,RX7#

MAROON,MAROON

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-2206003

GX71,LX7#,MX7#,RX70,YX70

GRAY,COOL GRAY

 1
67917-2206002

GX71,LX7#,MX7#,RX7#

MAROON,MAROON

 1
67917-2206005

GX71,LX7#,MX7#,RX70,YX70

BEIGE,BEIGE

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67918-2206005

GX71,LX7#,MX7#,RX70,YX70

BEIGE,BEIGE

 1
67918-2206002

GX71,LX7#,MX7#,RX7#

MAROON,MAROON

 1
67918-2206003

GX71,LX7#,MX7#,RX70,YX70

GRAY,COOL GRAY

 1
Common parts
90159-40113
90159-60252
90162-40023
90164-40034
90168-40065
90179-05095
90189-04069
90189-04089
90189-06029
90950-01266
93540-54008
93540-54010
93560-54012
