RX60RG-XWYDS (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)RHD..3H

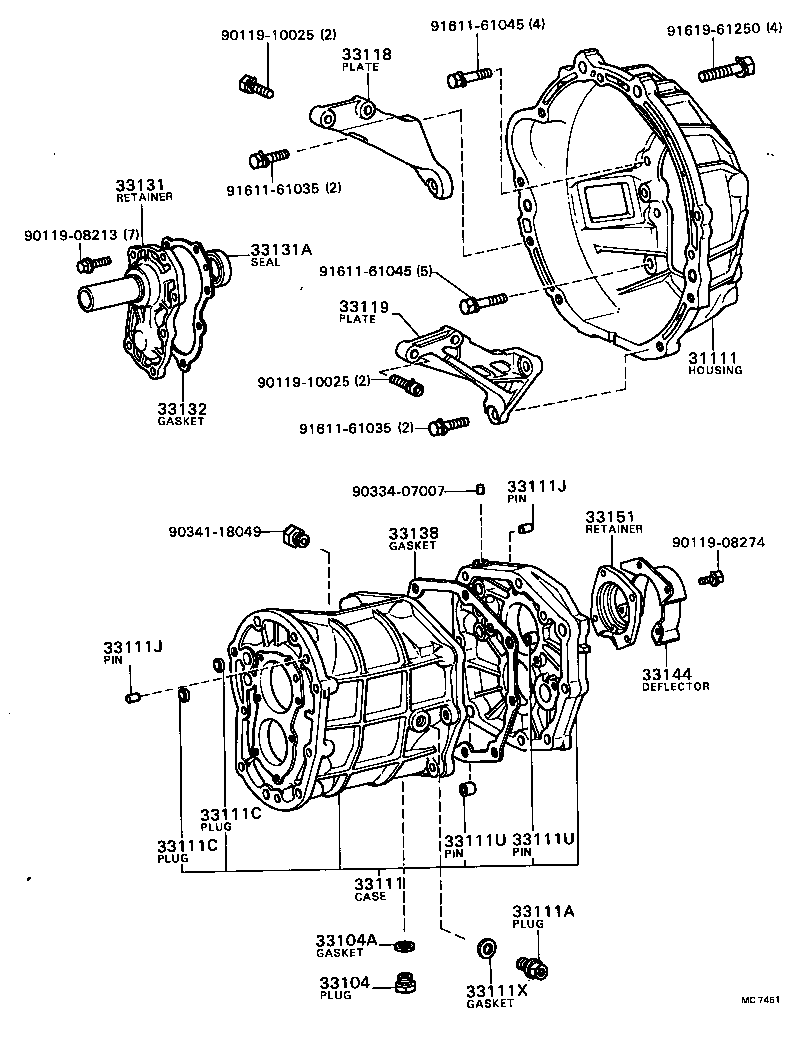

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111C 33111J 33111J 33111U 33111U 33111X 33118 33119 33131 33131A 33132 33138 33144 33151 9011908213 9011908274 9011910025 9011910025 9033407007 9034118049 9161161035 9161161035 9161161045 9161161045 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20170

RX60..4F,5F;RX60..RHD..3H

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GX6#,LX60,RX6#,TX62..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

LX60,RX6#,TX62..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-30030

RX60..RHD..3H

 1
33101-30031

RX60..3H

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

GX6#,LX60,RX6#,TX62..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,5F

OD=14

 3
33111C - PLUG(FOR TRANSMISSION CASE)
90331-14004

RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,5F

OD=14

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

RX60..RHD..3H;LX60,RX6#,TX62..4F,5F

L=16,OD=12,L=16,D=12

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

RX60..RHD..3H;LX60,RX6#,TX62..4F,5F

L=16,OD=12,L=16,D=12

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

RX60..RHD..3H

L=14,OD=15

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

RX60..RHD..3H

L=14,OD=15

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

LX60,RX6#,TX62..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22030

RX6#..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22021

RX6#..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-30050

RX60..RHD..3H

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,4H,5F

 1
33132 - GASKET, FRONT BEARING RETAINER(MTM)
33132-30050

RX60..RHD..3H

 1
33138 - GASKET, INTERMEDIATE PLATE
33138-30010

RX60..RHD..3H

 1
33144 - DEFLECTOR, EXTENSION HOUSING OIL(MTM)
33144-30022

RX60..RHD..3H

 1
33144-30021

RX60..RHD..3H

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-30040

RX60..RHD..3H

 1
Common parts
90119-08213
90119-08274
90119-10025
90334-07007
90341-18049
91611-61035
91611-61045
91619-61250
