RX60RG-XWMDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )RX6#,TX62

Click highlighted areas on diagram

diagram 87019A 87107 87116 87150 9017906162 9017906162 9017906162
Part # Description Qty Price
87019A - ATTACHMENT, HEATER
87019-32010

GX6#,LX60,MX6#,RX6#,TX62

 2
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22100

RX6#,TX62..RHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GX6#,LX60,MX6#,RX6#,TX62

 7
87150 - RADIATOR ASSY, HEATER
87150-22091

RX6#,TX62..RHD

 1
Common parts
90179-06162

(8009- )RX60..LHD..EUG ; (8009- )RX60..RHD..EUR,GEN ; (8009- )RX60..LHD..G

Click highlighted areas on diagram

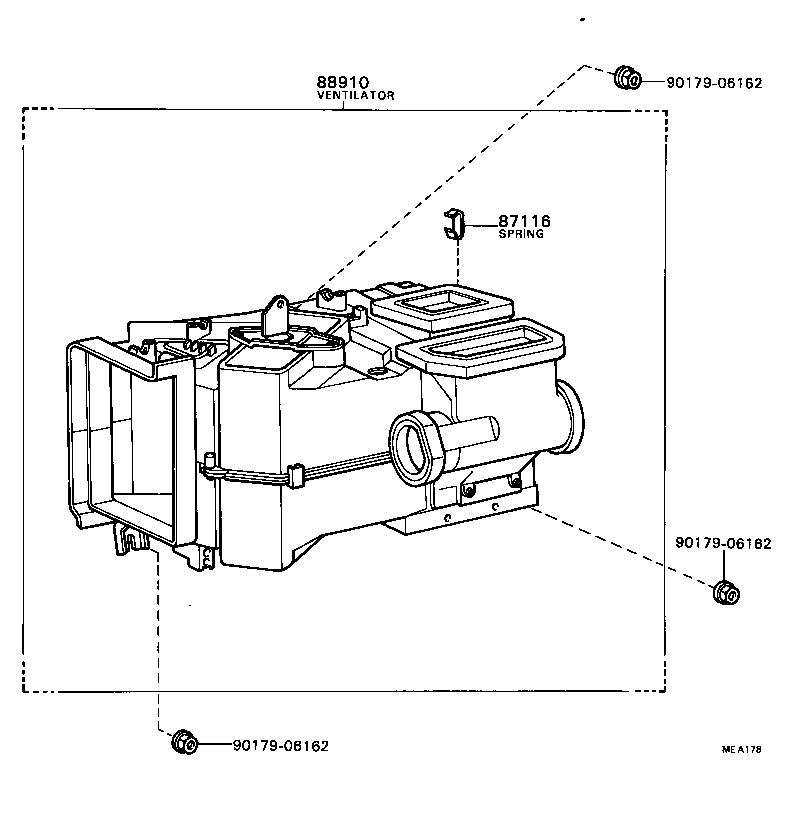

diagram 87116 88910 9017906162 9017906162 9017906162
Part # Description Qty Price
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GX6#,LX60,MX6#,RX6#,TX62

 7
Common parts
90179-06162

(8009- )

Click highlighted areas on diagram

diagram 87104 87105 87116 87130 87138 8717 87188 9009900932 9009902133 9009902134 9009902135 9017906115 9017906115 9017906162 9017906162 9411540500
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22100

GX6#,LX60,MX6#,RX6#,TX62..RHD

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

GX6#,LX60,MX6#,RX6#,TX62..RHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

GX6#,LX60,MX6#,RX6#,TX62

 7
87130 - BLOWER ASSY, HEATER, FRONT
87130-22030

GX6#,LX60,MX6#,RX6#,TX62..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-22040

GX6#,LX60,MX6#,RX6#,TX62

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

GX6#,LX60,MX6#,RX6#,TX62

 1
Common parts
90099-00932
90099-02133
90099-02134
90099-02135
90179-06115
90179-06162
94115-40500
Linked diagrams
8717
