RX60RG-XWMDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )WG

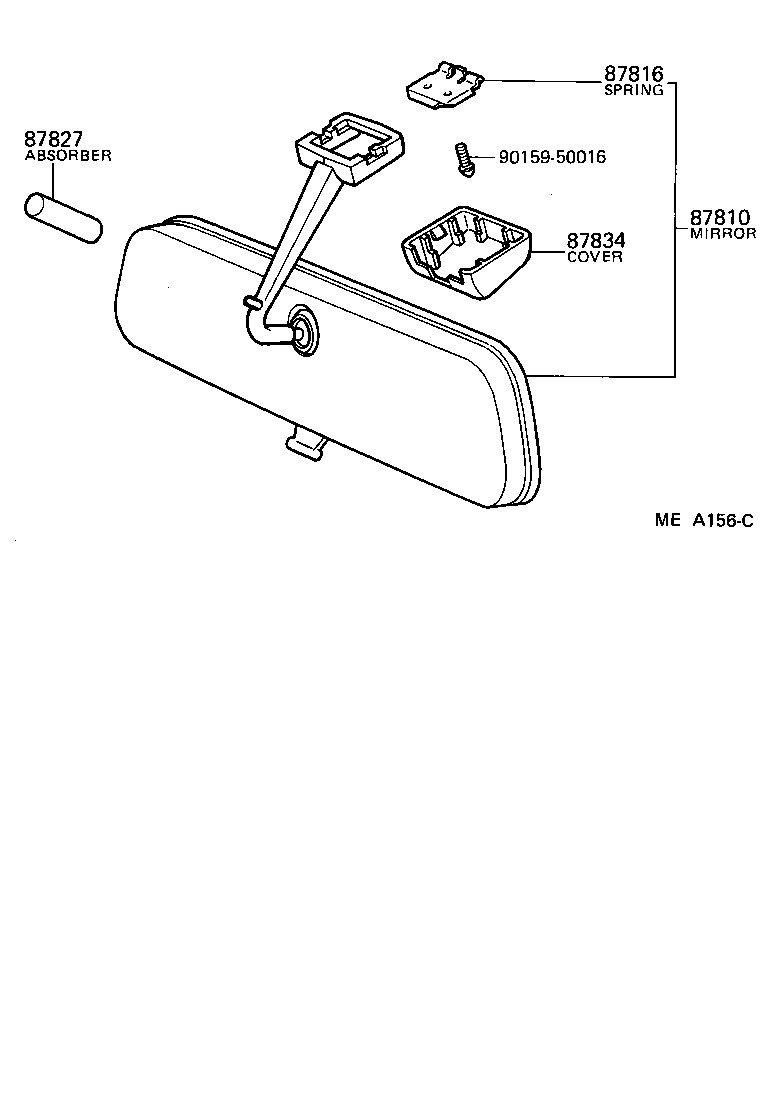

Click highlighted areas on diagram

diagram 87810 87816 87827 87834 9015950016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2216104

LX60,RX6#,TX62..EUR,ME,SA,SAA

BLUE,BLUE,TRIM8#

 1
87810-2216101

LX60,RX6#,TX62..EUR,ME,SA,SAA

BLACK,BLACK,TRIM2#

 1
87810-2216126

LX60,RX6#,TX62..EUR,ME,SA,SAA

DARK BROWN,BROWN,TRIM0#,4#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

GX6#,LX60,MX6#,RX6#,TX62

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008008

LX60,MX6#,RX6#,TX62

IVORY,IVORY,TRIM0#,2#,3#,4#

 1
87834-2008004

LX60,MX62,RX6#,TX62

BLUE,BLUE,TRIM8#

 1
Common parts
90159-50016

(8009-8307) ; (8307-8312)RHD ; (8307- )LHD..EUR ; (8312- )GX6#,LX60,MX63,RX60

Click highlighted areas on diagram

diagram 8271130340 87910 87910 87910 87911 87911 87914A 87918 87927 87927 87927 87927 87940 87940 87940 87941 87941 9015950016 9015950016 9331514016 9331915010
Part # Description Qty Price
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-30271

LX60,RX6#,TX62..RHD..(DLX,STD,XL)

DOOR TYPE

 1
87910-30281

LX60,RX60..RHD..(DLX,GL)..(EUR,GEN)

DOOR *RC,MANUAL TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-30271

LX60,RX6#,TX62..RHD..(DLX,STD,XL)

DOOR TYPE

 1
87910-30281

LX60,RX60..RHD..(DLX,GL)..(EUR,GEN)

DOOR *RC,MANUAL TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-30271

LX60,RX6#,TX62..RHD..(DLX,STD,XL)

DOOR TYPE

 1
87910-30281

LX60,RX60..RHD..(DLX,GL)..(EUR,GEN)

DOOR *RC,MANUAL TYPE

 1
87914A - COVER, OUTER MIRROR KNOB
87914-30010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN)

 1
87914-14010

LX60,MX62,RX6#,TX62

 2
87918 - KNOB, CONTROL OUTER MIRROR
87918-39015

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN)

 1
87918-19015

LX60,MX62,RX6#,TX62

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-30211

LX60,RX6#,TX62..RHD

DOOR TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-30211

LX60,RX6#,TX62..RHD

DOOR TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-30211

LX60,RX6#,TX62..RHD

DOOR TYPE

 1
Common parts
82711-30340
90159-50016
93315-14016
93319-15010
