RX60RG-XWMDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )WG

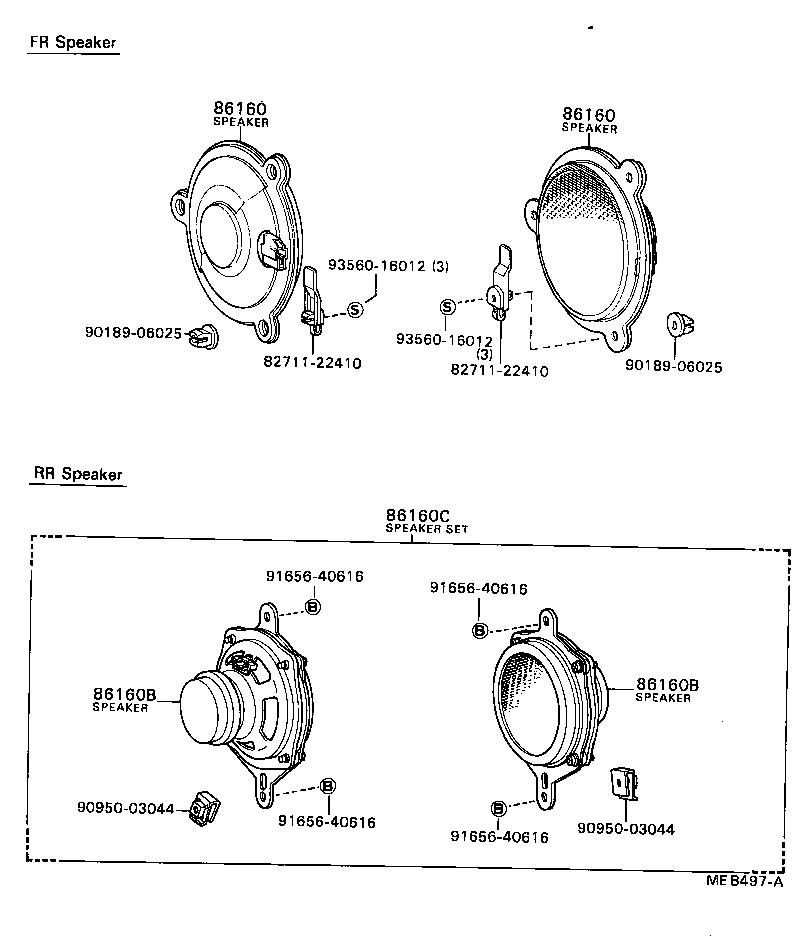

Click highlighted areas on diagram

diagram 8271122410 8271122410 86160 86160 86160B 86160B 86160C 9018906025 9018906025 9095003044 9095003044 9165640616 9165640616 9165640616 9165640616 9356016012 9356016012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-22060

LX60,MX62;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..SED..LHD..(GEN,ME,SAA)

RH

 1
86160-22070

LX60,MX62;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..SED..LHD..(GEN,ME,SAA)

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-22060

LX60,MX62;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..SED..LHD..(GEN,ME,SAA)

RH

 1
86160-22070

LX60,MX62;RX60..WG..LHD;RX60..SED..LHD..EUG;RX60..RHD..(EUR,GEN);RX60..SED..LHD..(GEN,ME,SAA)

LH

 1
86160B - SPEAKER ASSY, REAR
86160-91601

LX60,MX62,RX60..WG..DLX..(ARL,EUR,GEN)

 2
86160B - SPEAKER ASSY, REAR
86160-91601

LX60,MX62,RX60..WG..DLX..(ARL,EUR,GEN)

 2
86160C - SPEAKER SET, REAR
86160-29255

LX60,MX62,RX60..WG..DLX..(ARL,EUR,GEN)

 1
Common parts
82711-22410
90189-06025
90950-03044
91656-40616
93560-16012
