RX60RG-XWMDSW (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )WG..ARL,EUR,GEN,SA ; (8308- )WG..ME

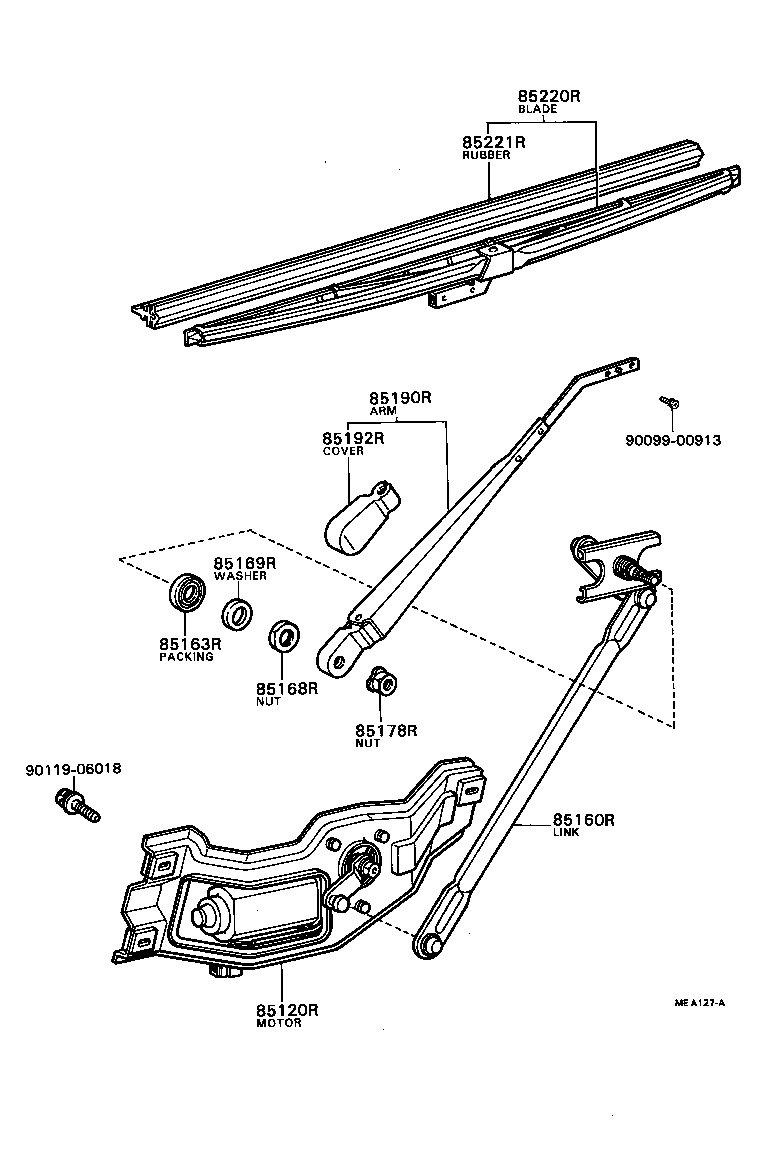

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85120R - MOTOR AND BRACKET ASSY, REAR WIPER | ||||
| 85120-91601 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85160R - LINK ASSY, REAR WIPER | ||||
| 85160-91601 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85163R - PACKING, REAR WIPER PIVOT, NO.1 | ||||
| 85174-21010 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05134 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-01435 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-91601 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-14020 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-91601 |
LX60,RX60..WG..EUG |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-91601 |
LX60,RX60..WG..EUG L=363 |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90119-06018 | ||||
