RX60RG-XWMDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )WG

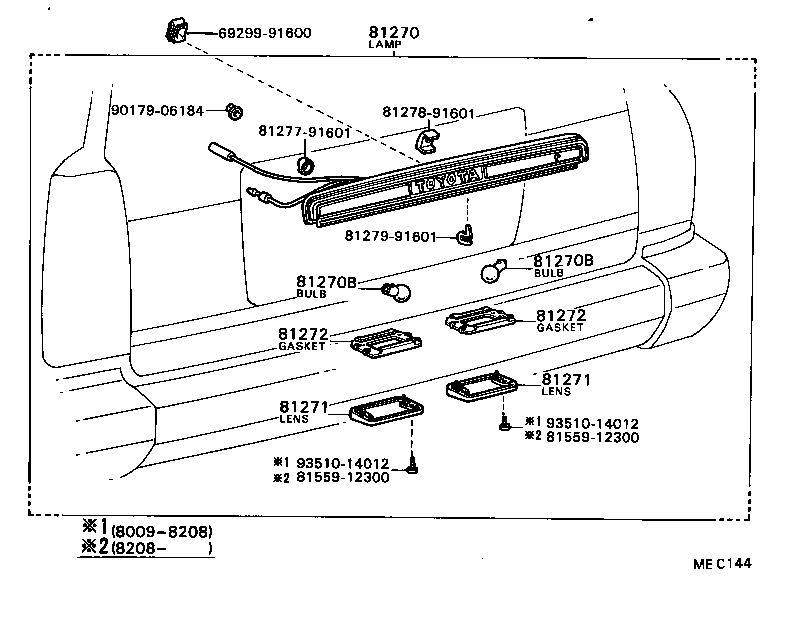

Click highlighted areas on diagram

diagram 6929991600 81270 81270B 81270B 81271 81271 81272 81272 8127791601 8127891601 8127991601 8155912300 8157912300 9017906184 9351014012 9351014012
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29615

LX60,MX62,RX6#..WG

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

LX60,MX62,RX6#..WG

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11050

LX60,MX62,RX6#..WG

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-91601

LX60,MX62,RX6#..WG

 2
81271 - LENS, LICENSE PLATE LAMP
81271-91601

LX60,MX62,RX6#..WG

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-91601

LX60,MX62,RX6#..WG

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-91601

LX60,MX62,RX6#..WG

 2
Common parts
69299-91600
81277-91601
81278-91601
81279-91601
81559-12300
81579-12300
90179-06184
93510-14012
