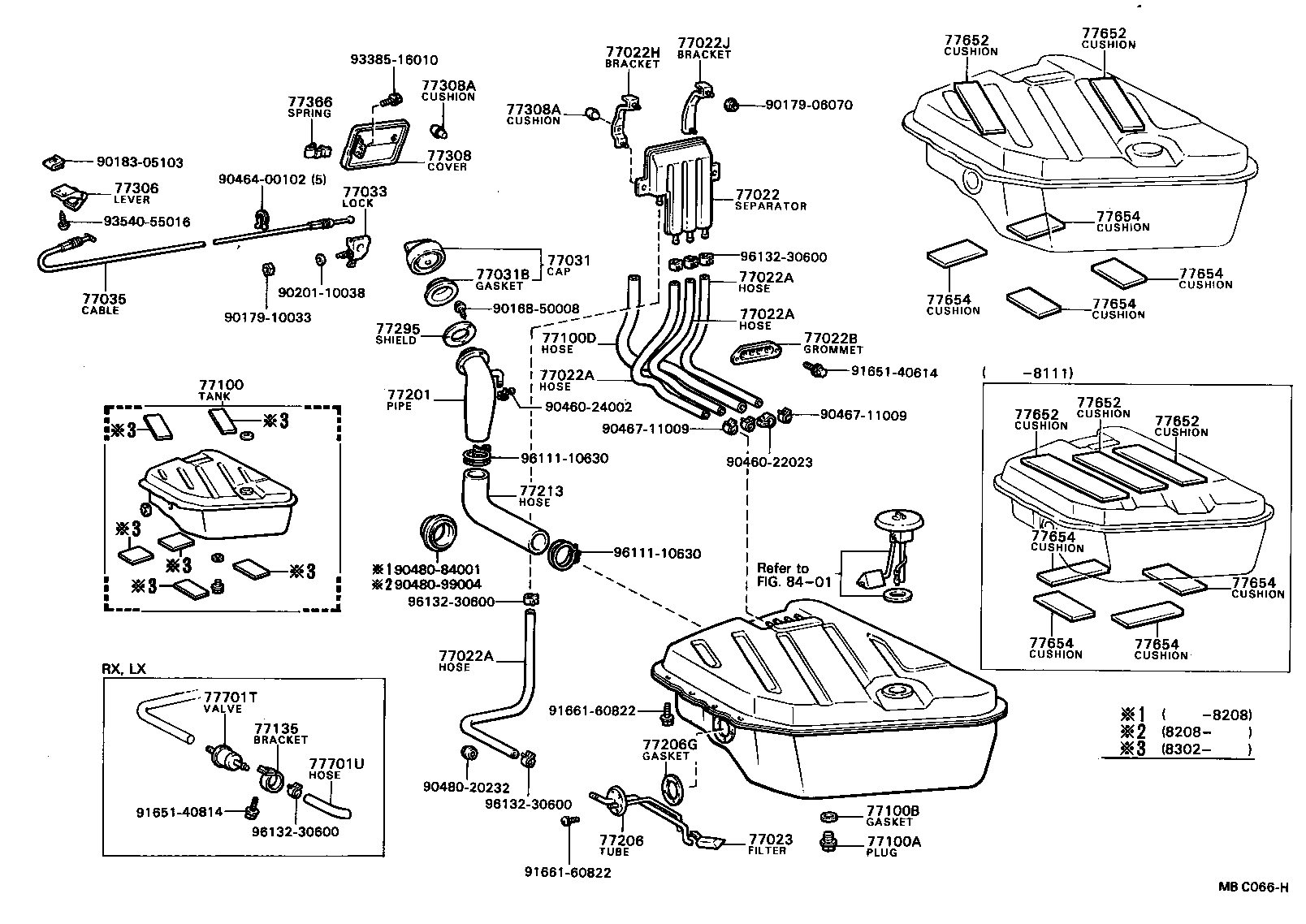

RX60RG-XWMDSW (1980)
Toyota Cressida
(8009- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE | ||||
| 77271-13010 |
LX60,MX62,RX6#..WG |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06080 |
LX60,MX62,RX60..WG *H,L=700 |
3 | ||
| 95332-06060 |
LX60,MX62,RX6#..WG *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06080 |
LX60,MX62,RX60..WG *H,L=700 |
3 | ||
| 95332-06060 |
LX60,MX62,RX6#..WG *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06080 |
LX60,MX62,RX60..WG *H,L=700 |
3 | ||
| 95332-06060 |
LX60,MX62,RX6#..WG *H,L=600 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06080 |
LX60,MX62,RX60..WG *H,L=700 |
3 | ||
| 95332-06060 |
LX60,MX62,RX6#..WG *H,L=600 |
1 | ||
| 77022B - GROMMET(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) | ||||
| 77290-91600 |
LX60,RX6#..WG |
1 | ||
| 77022H - BRACKET, FUEL VAPOR LIQUID SEPARATOR, FRONT | ||||
| 65103-91601 |
LX60,MX62,RX6#..WG |
1 | ||
| 77022J - BRACKET, FUEL VAPOR LIQUID SEPARATOR, REAR | ||||
| 65105-91601 |
LX60,MX62,RX6#..WG |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
RX6#,TX62 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 77310-12090 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12010 |
TX62;GX6#,LX60,MX6#,RX6#..DLX,GL,SXL,XL |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-91602 |
LX60,MX62,RX6#..WG..RHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29025 |
RX60..WG..(EUR,GEN,ME) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LX60,MX62,RX6#..WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LX60,MX62,RX6#..WG |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22018 |
LX60,MX62,RX6#..WG |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-91600 |
LX60,RX6#..WG |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-91258 |
MX62,RX6#..WG |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-91608 |
RX60..WG |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 83361-20030 |
LX60,MX62,RX6#..WG |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-91607 |
LX60,MX62,RX6#..WG |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77291-12010 |
LX60,MX62,RX60..WG |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77051-2201006 |
TX62;LX60,MX62,RX6#..DLX,GL,SXL,XL DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 77051-2201001 |
TX62;LX60,RX6#..DLX,GL,SXL,XL BLACK,BLACK,TRIM2# |
1 | ||
| 77051-2201001 |
TX62;LX60,MX62,RX6#..DLX,GL,SXL,XL BLACK,BLACK,TRIM2# |
1 | ||
| 77051-2201004 |
TX62;LX60,MX62,RX6#..DLX,GL,SXL,XL BLUE,BLUE,TRIM8# |
1 | ||
| 77051-2201004 |
TX62;LX60,RX6#..DLX,GL,SXL,XL BLUE,BLUE,TRIM8# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-91602 |
LX60,MX62,RX6#..WG |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-91601 |
LX60,MX62,RX60..WG 110X475 |
2 | ||
| 77651-91602 |
LX60,MX62,RX6#..WG 100X550 |
1 | ||
| 77651-91601 |
LX60,MX62,RX60..WG 110X600 |
1 | ||
| 77653-91602 |
LX60,MX62,RX6#..WG 100X450 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-91601 |
LX60,MX62,RX60..WG 110X475 |
2 | ||
| 77651-91602 |
LX60,MX62,RX6#..WG 100X550 |
1 | ||
| 77651-91601 |
LX60,MX62,RX60..WG 110X600 |
1 | ||
| 77653-91602 |
LX60,MX62,RX6#..WG 100X450 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-91601 |
LX60,MX62,RX60..WG 110X475 |
2 | ||
| 77651-91602 |
LX60,MX62,RX6#..WG 100X550 |
1 | ||
| 77651-91601 |
LX60,MX62,RX60..WG 110X600 |
1 | ||
| 77653-91602 |
LX60,MX62,RX6#..WG 100X450 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-91601 |
LX60,MX62,RX60..WG 110X475 |
2 | ||
| 77651-91602 |
LX60,MX62,RX6#..WG 100X550 |
1 | ||
| 77651-91601 |
LX60,MX62,RX60..WG 110X600 |
1 | ||
| 77653-91602 |
LX60,MX62,RX6#..WG 100X450 |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77653-91601 |
LX60,MX62,RX60..WG 110X475 |
2 | ||
| 77651-91602 |
LX60,MX62,RX6#..WG 100X550 |
1 | ||
| 77651-91601 |
LX60,MX62,RX60..WG 110X600 |
1 | ||
| 77653-91602 |
LX60,MX62,RX6#..WG 100X450 |
2 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-91601 |
LX60,MX62,RX60..WG 100X260 |
4 | ||
| 77652-91602 |
LX60,MX62,RX6#..WG 100X200 |
4 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
GX6#,LX60,RX6#,TX62 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06010 |
GX6#,LX60,MX63,RX60,TX62 *H,L=90 |
1 | ||
| 95332-06020 |
LX60,RX6#..WG *H,L=130 |
1 | ||
| Common parts | ||||
| 90168-50008 | ||||
| 90179-06070 | ||||
| 90179-10033 | ||||
| 90183-05103 | ||||
| 90201-10038 | ||||
| 90460-22023 | ||||
| 90460-24002 | ||||
| 90464-00102 | ||||
| 90467-11009 | ||||
| 90480-20232 | ||||
| 90480-84001 | ||||
| 90480-99004 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91661-60822 | ||||
| 93385-16010 | ||||
| 93540-55016 | ||||
| 96111-10630 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

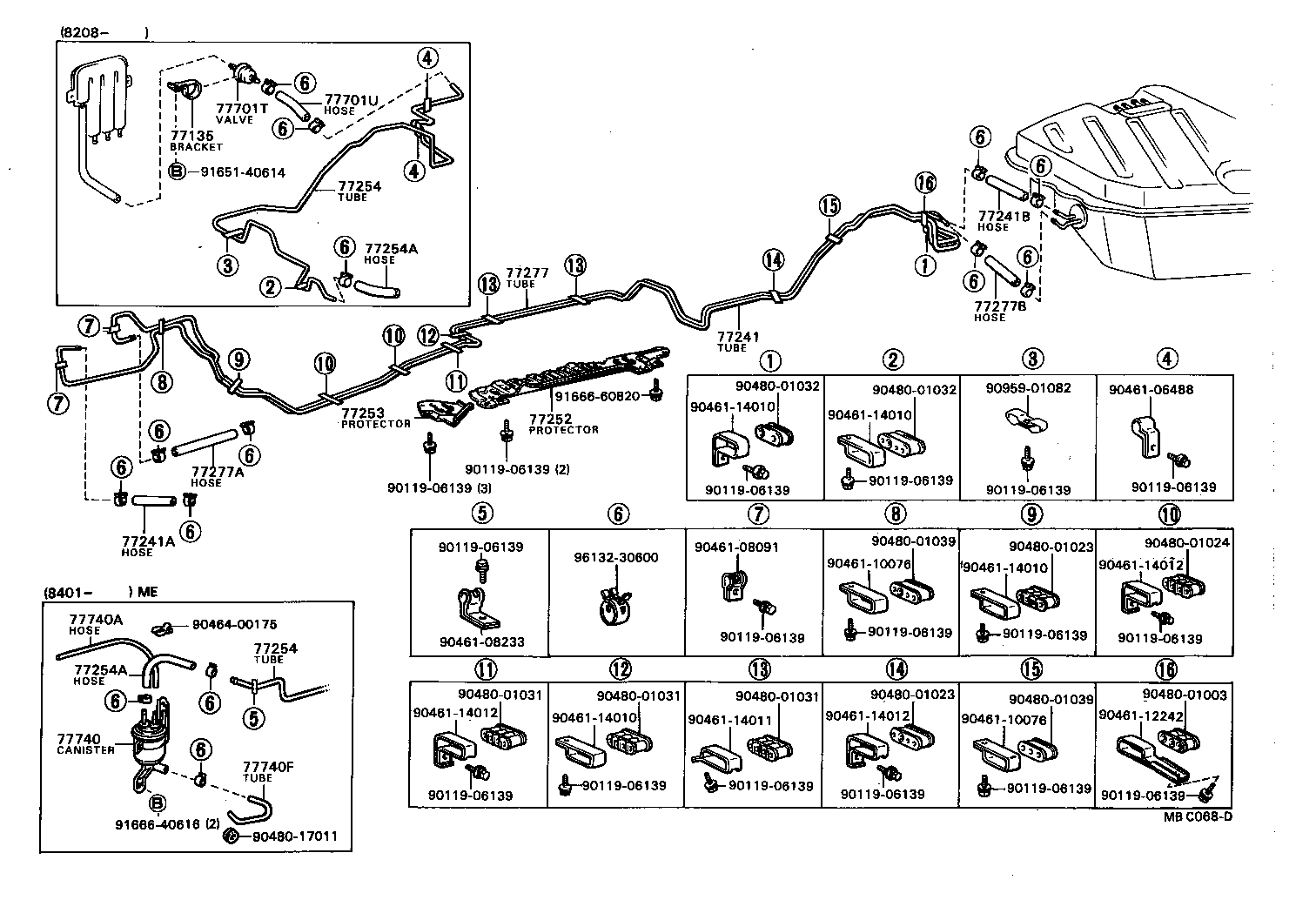

(8009- )RX60..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-91600 |
LX60,RX6#..WG |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-91621 |
RX60..WG |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RX6#,TX62 *H,L=140 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RX60..WG *H,L=120 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-22030 |
RX6#,TX62 |
1 | ||
| 77253 - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-22020 |
RX6#,TX62 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-91610 |
RX60..WG |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06060 |
RX60 *H,L=550 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
LX60,RX60..WG *H,L=120 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
GX6#,LX60,RX6#,TX62 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95332-06010 |
GX6#,LX60,MX63,RX60,TX62 *H,L=90 |
1 | ||
| 95332-06020 |
LX60,RX6#..WG *H,L=130 |
1 | ||
| Common parts | ||||
| 90119-06139 | ||||
| 90461-06488 | ||||
| 90461-08091 | ||||
| 90461-08233 | ||||
| 90461-10076 | ||||
| 90461-12242 | ||||
| 90461-14010 | ||||
| 90461-14011 | ||||
| 90461-14012 | ||||
| 90464-00175 | ||||
| 90480-01003 | ||||
| 90480-01023 | ||||
| 90480-01024 | ||||
| 90480-01031 | ||||
| 90480-01032 | ||||
| 90480-01039 | ||||
| 90480-17011 | ||||
| 90959-01082 | ||||
| 91651-40614 | ||||
| 91666-40616 | ||||
| 91666-60820 | ||||
| 96132-30600 | ||||
