RX60RG-XWMDSW (1980)
Toyota Cressida
(8009- )RHD..3FC,4F,4FC,5F

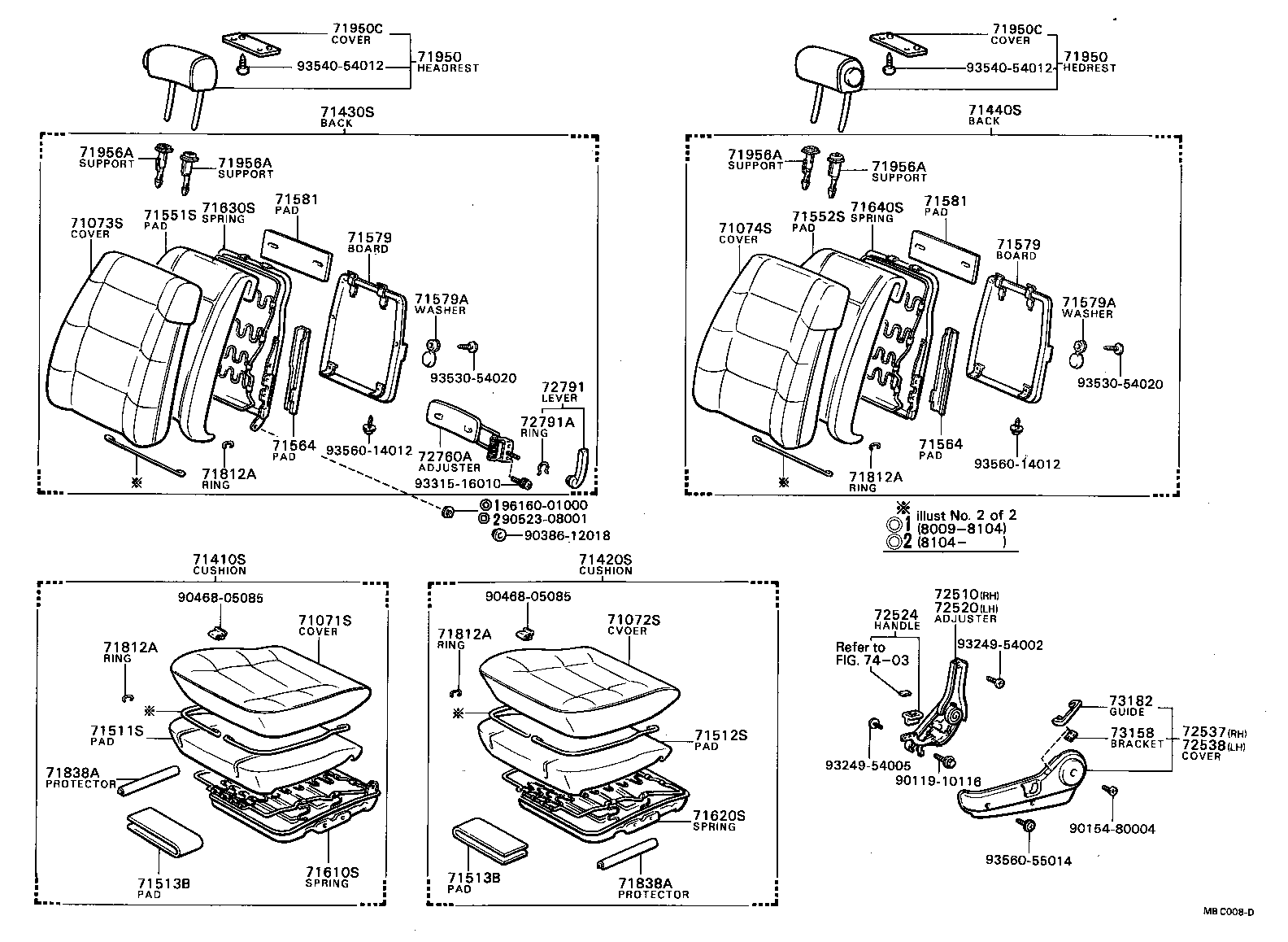

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2270003 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-2270008 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,IVORY,IVORY,TRIM0# |
1 | ||
| 71071-2270008 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,IVORY,IVORY,TRIM0# |
1 | ||
| 71071-2270004 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-2270005 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2240008 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,IVORY,IVORY,TRIM0# |
1 | ||
| 71072-2240003 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-2240005 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71072-2240004 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2240008 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,IVORY,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A02008 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,IVORY,IVORY,TRIM0# |
1 | ||
| 71073-2A02008 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,IVORY,IVORY,TRIM0# |
1 | ||
| 71073-2A02003 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A02004 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A02005 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2A02008 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,IVORY,IVORY,TRIM0# |
1 | ||
| 71073-2A02003 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-2A02005 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71073-2A02008 |
LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,IVORY,IVORY,TRIM0# |
1 | ||
| 71073-2A02004 |
LX60..STD..EUG;LX60..SED..STD..GEN;LX60,MX62,RX6#..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,BLUE,BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2268003 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,VERTICAL,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-2268004 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2268008 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,VERTICAL,IVORY,IVORY,TRIM0# |
1 | ||
| 71410-2268005 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,VERTICAL,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2244004 |
LX60,RX60..RHD..DLX..EUG FB-E,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2244003 |
LX60,RX60..RHD..DLX..EUG FB-E,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-2244005 |
LX60,RX60..RHD..DLX..EUG FB-E,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71420-2244008 |
LX60,RX60..RHD..DLX..EUG FB-E,IVORY,IVORY,TRIM0# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2A19003 |
LX60,MX62,RX6#..WG..RHD..(3FC,4F,4FC,5F) FB-E,*HR,RUMBER SUPPORT,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-2A19004 |
LX60,MX62,RX6#..WG..RHD..(3FC,4F,4FC,5F) FB-E,*HR,RUMBER SUPPORT,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-2A19005 |
LX60,MX62,RX6#..WG..RHD..(3FC,4F,4FC,5F) FB-E,*HR,RUMBER SUPPORT,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2277008 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,*HR,IVORY,IVORY,TRIM0# |
1 | ||
| 71440-2277004 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,*HR,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2277003 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,*HR,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-2277005 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,STD,XL) FB-E,*HR,GREIGE,BEIGE,TRIM4# |
1 | ||
| 71440-2277008 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,XL) FB-E,*HR,IVORY,IVORY,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22200 |
LX60,MX62,RX6#,TX62..(3FC,4F,4FC,5F)..(DLX,STD,XL) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22200 |
LX60,MX62,RX6#,TX62..(3FC,4F,4FC,5F)..(DLX,STD,XL) |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 400 |
2 | ||
| 71522-22100 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 750 |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 400 |
2 | ||
| 71522-22100 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F 100 X 750 |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22150 |
LX60,MX62,RX6#,TX62..(3FC,4F,4FC,5F)..(DLX,STD,XL) |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71583-22070 |
LX60,MX62,RX6#,TX62..DLX,STD,XL RH |
2 | ||
| 71584-22060 |
LX60,MX62,RX6#,TX62..DLX,STD,XL LH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71583-22070 |
LX60,MX62,RX6#,TX62..DLX,STD,XL RH |
2 | ||
| 71584-22060 |
LX60,MX62,RX6#,TX62..DLX,STD,XL LH |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22150 |
LX60,MX62,RX60..RHD..(3FC,4F,4FC,5F)..(DLX,GL) W/VERTICAL |
1 | ||
| 71610-20240 |
LX60..RHD..DLX;MX62,RX6#,TX62..RHD..(3FC,4F,4FC,5F) W/VERTICAL |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22090 |
LX60,MX62,RX60..RHD..(3FC,4F,4FC,5F) |
1 | ||
| 71620-20100 |
LX60,MX62,RX6#,TX62..RHD..(3FC,4F,4FC,5F) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22180 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F)..(DLX,STD,XL) W/RUMBER SUPPORT |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22140 |
LX60,MX62,RX6#,TX62..RHD..(3FC,4F,4FC,5F)..(DLX,STD,XL) |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
2 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2236001 |
LX60,MX62,RX60..(DLX,STD)..(ARL,EUR) BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2236004 |
LX60,MX62,RX60..(DLX,STD)..(ARL,EUR) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2236006 |
LX60,MX62,RX60..(DLX,STD)..(ARL,EUR) D-BROWN,BROWN,TRIM4# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2236001 |
LX60,MX62,RX60..(DLX,STD)..(ARL,EUR) BLACK,BLACK,TRIM2# |
2 | ||
| 71910-2236004 |
LX60,MX62,RX60..(DLX,STD)..(ARL,EUR) BLUE,BLUE,TRIM8# |
2 | ||
| 71910-2236006 |
LX60,MX62,RX60..(DLX,STD)..(ARL,EUR) D-BROWN,BROWN,TRIM4# |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2205006 |
LX60,MX62,RX60..ARL,EUR D-BROWN,BROWN,TRIM0#,4# |
2 | ||
| 71922-2205004 |
LX60,MX62,RX60..ARL,EUR BLUE,BLUE,TRIM8# |
2 | ||
| 71922-2205001 |
LX60,MX62,RX60..ARL,EUR BLACK,BLACK,TRIM2# |
2 | ||
| 71950C - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2205006 |
LX60,MX62,RX60..ARL,EUR D-BROWN,BROWN,TRIM0#,4# |
2 | ||
| 71922-2205004 |
LX60,MX62,RX60..ARL,EUR BLUE,BLUE,TRIM8# |
2 | ||
| 71922-2205001 |
LX60,MX62,RX60..ARL,EUR BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
LX60,MX62,RX6#,TX62 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
LX60,MX62,RX6#,TX62 W/O(LOCK),W/O LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006004 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001016 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71930-1006016 |
GX6#,LX60,MX6#,RX6#,TX62 W(LOCK),W/LOCK,D-BROWN,SABLE,TRIM0#,4# |
2 | ||
| 71931-1001004 |
GX6#,LX60,MX6#,RX6#,TX62 W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22080 |
LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22080 |
LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-2004001 |
LX60,MX62,RX6#,TX62 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005001 |
LX60,MX62,RX6#,TX62 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005006 |
GX6#,LX60,MX6#,RX6#,TX62 RH,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72526-2004006 |
GX6#,LX60,MX6#,RX6#,TX62 LH,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72525-2005004 |
LX60,MX62,RX6#,TX62 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
LX60,MX62,RX6#,TX62 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72537 - COVER, RECLINING HINGE OUTER, RH | ||||
| 71811-2210004 |
LX60,MX62,RX6#,TX62..RHD..(ARL,EUR,SA) VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71811-2210001 |
LX60,MX62,RX6#,TX62..RHD..(ARL,EUR,SA) VERTICAL,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-2210006 |
LX60,MX62,RX6#,TX62..RHD..(ARL,EUR,SA) VERTICAL,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72538 - COVER, RECLINING HINGE OUTER, LH | ||||
| 71812-2206004 |
LX60,MX62,RX6#,TX62..RHD..(ARL,EUR,SA) VERTICAL,BLUE,BLUE,TRIM8# |
1 | ||
| 71812-2206006 |
LX60,MX62,RX6#,TX62..RHD..(ARL,EUR,SA) VERTICAL,D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 71812-2206001 |
LX60,MX62,RX6#,TX62..RHD..(ARL,EUR,SA) VERTICAL,BLACK,BLACK,TRIM2# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-22020 |
LX60,MX62,RX6#..RHD..(3FC,4F,4FC,5F) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3003001 |
LX60,MX62,RX6#..3FC,4F,4FC,5F BLACK,BLACK,TRIM2# |
1 | ||
| 72791-3003004 |
LX60,MX62,RX6#..3FC,4F,4FC,5F BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3003006 |
GX6#,LX60,MX6#,RX6#..3FC,4F,4FC,5F D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GX6#,LX60,MX6#,RX6#..3FC,4F,4FC,5F |
1 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90154-80004 | ||||
| 90386-12018 | ||||
| 90468-05085 | ||||
| 90523-08001 | ||||
| 93249-54002 | ||||
| 93249-54005 | ||||
| 93315-16010 | ||||
| 93530-54020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
| 96160-01000 | ||||
| Linked diagrams | ||||
| 7403 | ||||
(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-20011 | ||||
| 90580-20015 | ||||
| 90580-20019 | ||||
| 90580-20021 | ||||
| 90580-20032 | ||||
| 90580-20096 | ||||
| 90580-20126 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
