RX60RG-XWMDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )WG

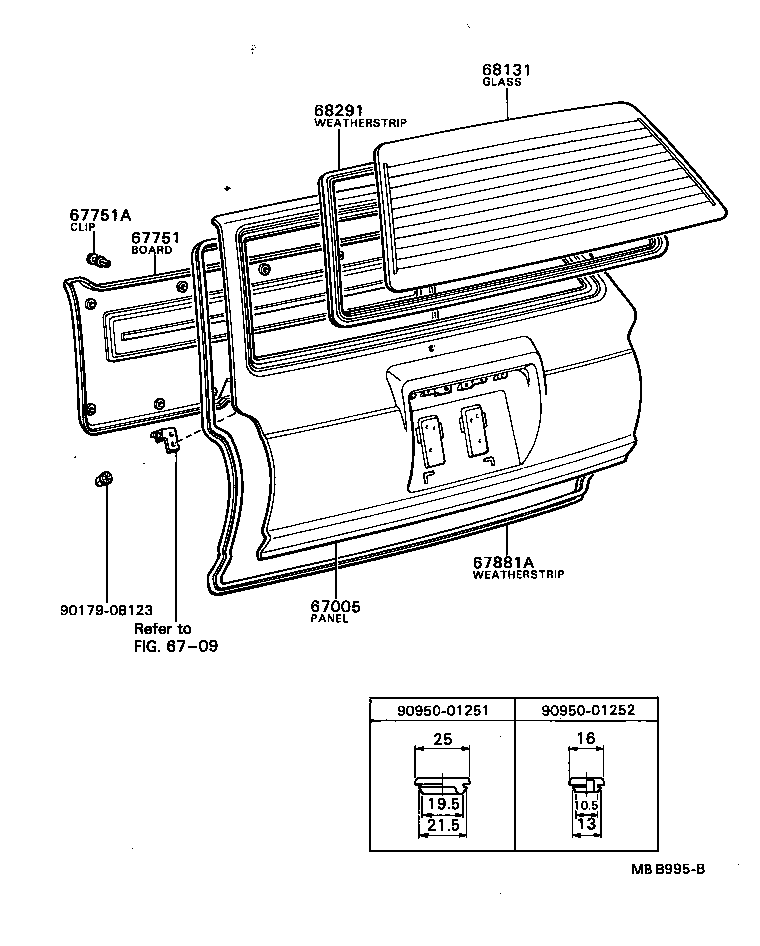

Click highlighted areas on diagram

diagram 67005 6709 67751 67751A 67881A 68131 68291 9017908123 9095001251 9095001252
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-91A01

LX60,MX62,RX6#..WG

W/REAR WIPER

 1
67751 - BOARD, BACK DOOR TRIM
67750-9160104

LX60,MX62,RX6#..WG

BLUE,BLUE,TRIM8#

 1
67750-9160106

LX60,MX62,RX6#..WG

D-BROWN,BROWN,TRIM4#

 1
67750-9160101

LX60,MX62,RX6#..WG

BLACK,BLACK,TRIM2#

 1
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-0811424

LX60,MX62,RX6#..WG

BLUE,BLUE,TRIM8#

 13
90467-0811436

LX60,MX62,RX6#..WG

D-BROWN,BROWN,TRIM4#

 13
90467-0811411

LX60,MX62,RX6#..WG

BLACK,BLACK,TRIM2#

 13
67881A - WEATHERSTRIP, BACK DOOR
67881-91255

LX60,MX62,RX6#..WG

 1
68131 - GLASS, BACK DOOR
68105-91612

RX60..WG..EUG;LX60,MX62,RX62..WG;RX60..WG..(GEN,ME,SA)

*EHTT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-91609

LX60,MX62,RX6#..WG..(DLX,GL,XL)

W/MOULDING

 1
Common parts
90179-08123
90950-01251
90950-01252
Linked diagrams
6709
