RX60RG-XWMDSW (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )WG

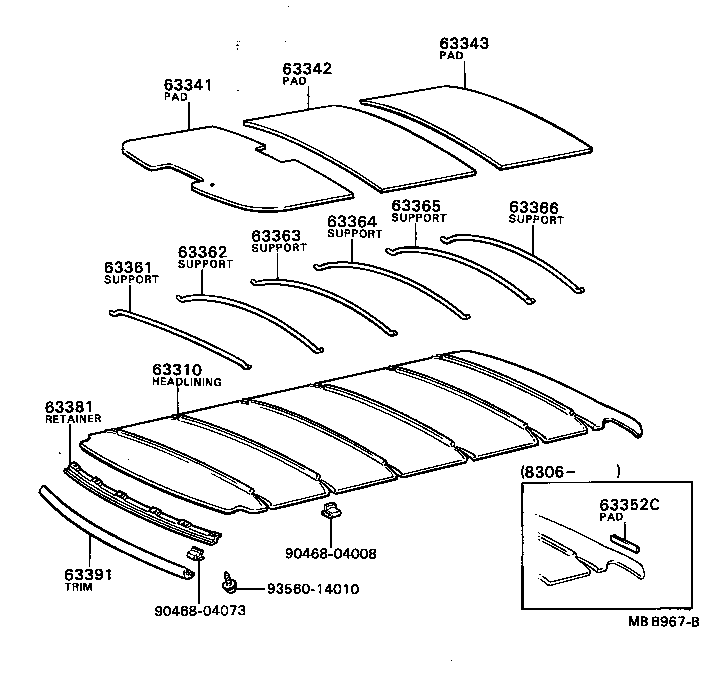

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-9161404 |
LX60,MX62,RX6#..WG BLUE,BLUE,TRIM8# |
1 | ||
| 63310-9161408 |
LX60,MX62,RX6#..WG IVORY,IVORY,TRIM2#,4# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-22090 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63343-91607 |
LX60,MX62,RX6#..WG |
1 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-91607 |
LX60,MX62,RX6#..WG |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22090 |
GX6#,LX60,MX6#,RX6#,TX62 L=1070 |
1 | ||
| 63361-22080 |
GX6#,LX60,MX6#,RX6#,TX62 MARK=BLACK,L=1063 |
1 | ||
| 63361-22070 |
GX6#,LX60,MX6#,RX6#,TX62 MARK=WHITE,L=1067 |
1 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63361-91606 |
LX60,MX62,RX6#..WG L=1066 |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63361-91606 |
LX60,MX62,RX6#..WG L=1066 |
1 | ||
| 63364 - SUPPORT, ROOF HEADLINING, NO.4 | ||||
| 63361-91606 |
LX60,MX62,RX6#..WG L=1066 |
1 | ||
| 63365 - SUPPORT, ROOF HEADLINING, NO.5 | ||||
| 63361-91606 |
LX60,MX62,RX6#..WG L=1066 |
1 | ||
| 63366 - SUPPORT, ROOF HEADLINING, NO.6 | ||||
| 63361-91606 |
LX60,MX62,RX6#..WG L=1066 |
1 | ||
| 63381 - RETAINER, HEADLINING, FRONT | ||||
| 63381-22030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 63391 - TRIM, ROOF HEADLINING, FRONT | ||||
| 63391-2203001 |
LX60,MX62,RX6#,TX62 BLACK,BLACK,TRIM2# |
1 | ||
| 63391-2203006 |
GX6#,LX60,MX6#,RX6#,TX62 D-BROWN,BROWN,TRIM0#,4# |
1 | ||
| 63391-2203004 |
LX60,MX62,RX6#,TX62 BLUE,BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90468-04008 | ||||
| 90468-04073 | ||||
| 93560-14010 | ||||
