RX60RG-XWMDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )WG

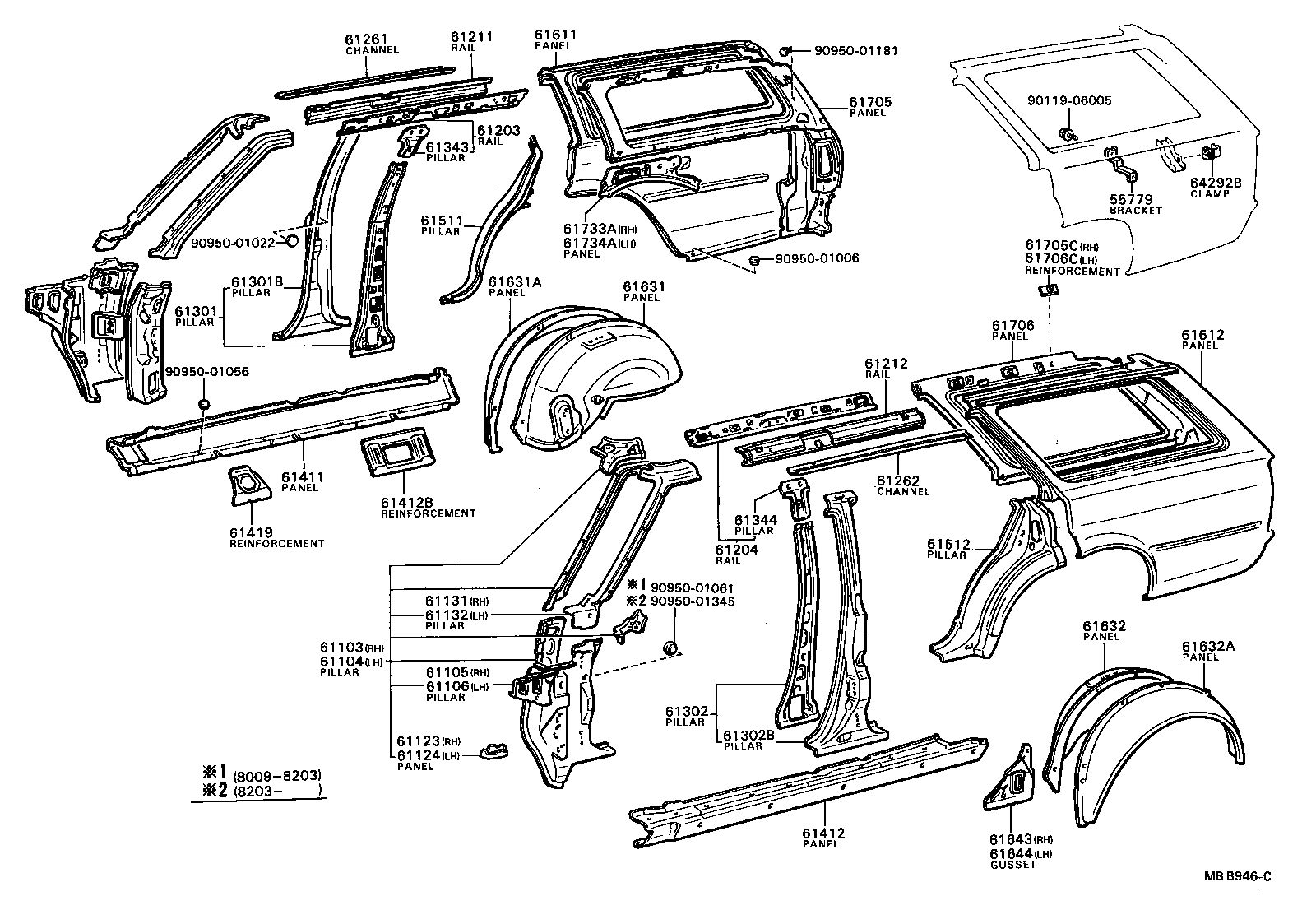

Click highlighted areas on diagram

diagram 55779 61103 61104 61105 61106 61123 61124 61131 61132 61203 61204 61211 61212 61261 61262 61301 61301B 61302 61302B 61343 61344 61411 61412 61412B 61419 61511 61512 61611 61612 61631 61631A 61632 61632A 61643 61644 61705 61705C 61706 61706C 61733A 61734A 64292B 9011906005 9095001006 9095001022 9095001056 9095001061 9095001181 9095001345
Part # Description Qty Price
55779 - BRACKET, WIRING HARNESS MOUNTING
55779-91601

RX6#..WG

 1
61103 - PILLAR SUB-ASSY, FRONT BODY, RH
61021-22030

RX6#..RHD

 1
61104 - PILLAR SUB-ASSY, FRONT BODY, LH
61022-22030

RX6#..RHD

 1
61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH
61025-22903

RX6#..RHD

 1
61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH
61026-22903

RX6#..RHD

 1
61123 - PANEL, COWL SIDE LOWER, RH
61123-22030

GX6#,LX60,MX6#,RX6#,TX62

 1
61124 - PANEL, COWL SIDE LOWER, LH
61124-22030

GX6#,LX60,MX6#,RX6#,TX62

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-22090

GX6#,LX60,MX6#,RX6#,TX62

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-22090

GX6#,LX60,MX6#,RX6#,TX62

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-91608

LX60,MX62,RX6#..WG

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-91605

LX60,MX62,RX6#..WG

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-91607

LX60,MX62,RX6#..WG

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-91607

LX60,MX62,RX6#..WG

 1
61261 - CHANNEL, ROOF DRIP, RH
61265-91602

LX60,MX62,RX6#..WG

 1
61262 - CHANNEL, ROOF DRIP, LH
61266-91602

LX60,MX62,RX6#..WG

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-22220

GX6#,LX60,MX63,RX6#,TX62

 1
61301B - PILLAR, CENTER BODY, OUTER RH
61301-22902

GX6#,LX60,MX6#,RX6#,TX62

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-22240

GX6#,LX60,MX63,RX6#,TX62

 1
61302B - PILLAR, CENTER BODY, OUTER LH
61302-22902

GX6#,LX60,MX6#,RX6#,TX62

 1
61343 - PILLAR, CENTER BODY, INNER UPPER RH
61341-22060

GX6#,LX60,MX6#,RX6#,TX62

 1
61344 - PILLAR, CENTER BODY, INNER UPPER LH
61342-22080

GX6#,LX60,MX6#,RX6#,TX62

 1
61411 - PANEL, ROCKER, OUTER RH
61411-22101

GX6#,LX60,MX6#,RX6#,TX62

 1
61412 - PANEL, ROCKER, OUTER LH
61412-22101

GX6#,LX60,MX6#,RX6#,TX62

 1
61412B - REINFORCEMENT, ROCKER PANEL, NO.2
61414-22010

GX6#,LX60,MX6#,RX6#,TX62

 2
61419 - REINFORCEMENT, ROCKER OUTER PANEL
61418-22010

GX6#,LX60,MX6#,RX6#,TX62

 2
61511 - PILLAR, QUARTER LOCK, RH
61501-22901

GX6#,LX60,MX6#,RX6#,TX62

 1
61512 - PILLAR, QUARTER LOCK, LH
61502-22901

GX6#,LX60,MX6#,RX6#,TX62

 1
61611 - PANEL, QUARTER, RH
61601-22942

LX60,MX62,RX6#..WG

 1
61601-22943

LX60,MX62,RX6#..WG..(DLX,XL)

W/FUEL LID

 1
61612 - PANEL, QUARTER, LH
61602-22916

LX60,MX62,RX6#..WG

 1
61631 - PANEL, QUARTER WHEEL HOUSE, RH
61607-91604

LX60,MX62,RX6#..WG

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-91604

LX60,MX62,RX6#..WG

 1
61632 - PANEL, QUARTER WHEEL HOUSE, LH
61608-91606

LX60,MX62,RX6#..WG

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-91604

LX60,MX62,RX6#..WG

 1
61643 - GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61641-22010

GX6#,LX60,MX6#,RX6#,TX62

 1
61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61642-22010

GX6#,LX60,MX6#,RX6#,TX62

 1
61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH
61705-91605

LX60,MX62,RX6#..WG

 1
61705C - REINFORCEMENT, SEAT BELT ANCHORAGE, REAR RH
61766-21010

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH
61706-91606

LX60,MX62,RX6#..WG

 1
61706C - REINFORCEMENT, SEAT BELT ANCHORAGE, REAR LH
61766-21010

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
61733A - PANEL, ROOF SIDE, INNER FRONT RH
61733-91601

LX60,MX62,RX6#..WG

 1
61734A - PANEL, ROOF SIDE, INNER FRONT LH
61734-91602

LX60,MX62,RX6#..WG

 1
64292B - CLAMP, JACK HANDLE
58788-91601

LX60,MX62,RX6#..WG

 1
Common parts
90119-06005
90950-01006
90950-01022
90950-01056
90950-01061
90950-01181
90950-01345
