RX60RG-XWMDSW (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
21R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )WG

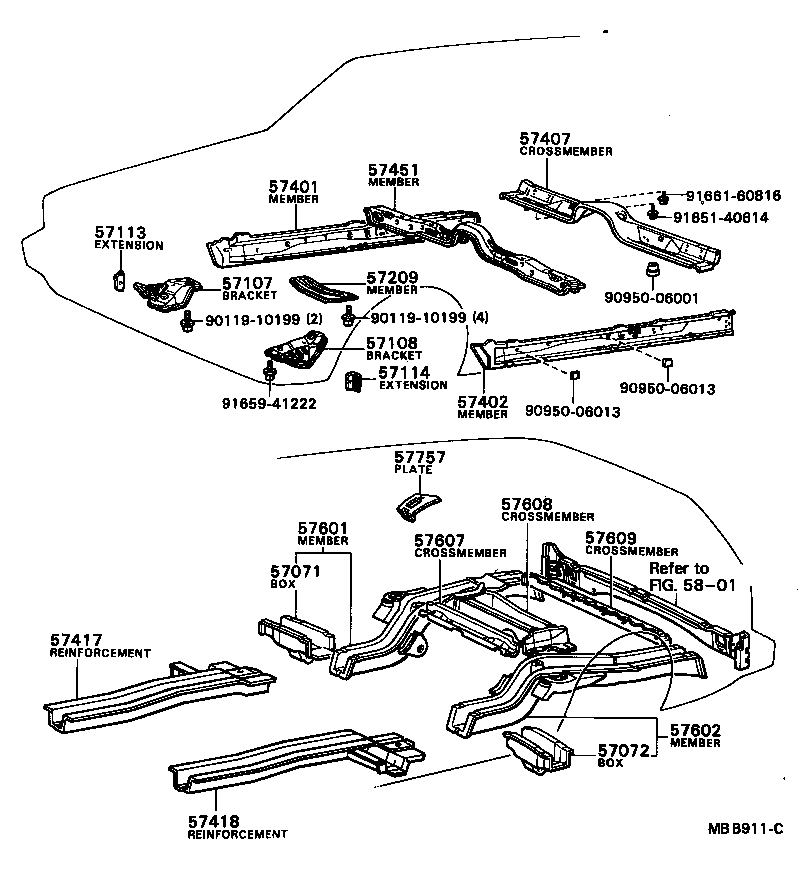

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57071 - BOX SUB-ASSY, TORQUE, REAR RH | ||||
| 57071-91601 |
LX60,MX62,RX6#..WG |
1 | ||
| 57072 - BOX SUB-ASSY, TORQUE, REAR LH | ||||
| 57072-91601 |
LX60,MX62,RX6#..WG |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-22030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-22090 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-22040 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-22040 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| 57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT | ||||
| 57255-22120 |
LX60,RX60..(4F,5F)..(EUR,GEN,ME) |
1 | ||
| 57255-22120 |
LX60,RX60..(4F,4H,5F)..(EUR,GEN,ME) |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-22050 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-22050 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1 | ||||
| 57407-22030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57505-22020 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57506-22020 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-22012 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-91617 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-91617 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 57652-91604 |
LX60,MX62,RX6#..WG |
1 | ||
| 57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 57606-91611 |
LX60,MX62,RX6#..WG |
1 | ||
| 57609 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.3 | ||||
| 57654-91605 |
LX60,MX62,RX6#..WG |
1 | ||
| 57757 - PLATE, REAR FLOOR CROSSMEMBER | ||||
| 57628-91601 |
LX60,MX62,RX6#..WG RH |
1 | ||
| 57629-91604 |
LX60,MX62,RX6#..WG LH |
1 | ||
| Common parts | ||||
| 90119-10199 | ||||
| 90950-06001 | ||||
| 90950-06013 | ||||
| 91651-40614 | ||||
| 91659-41222 | ||||
| 91661-60816 | ||||
| Linked diagrams | ||||
| 5801 | ||||
