RX60RG-XWMDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)WG

Click highlighted areas on diagram

diagram 5102 5102 52055 52107 52107 52108 52108 52151 52151 52151C 52151C 52152B 52152B 52153B 52153B 9011912007 9011912007 9011912007 9011912007 9017906007 9017906007 9017906007 9017908123 9017908123 9166540616 9166540616
Part # Description Qty Price
52055 - PAD SUB-ASSY, REAR BUMPER
52055-29065

LX60,RX6#..(DLX,STD,XL)..(EUR,GEN,SA)

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-91601

LX60,RX6#..WG..(EUR,GEN,SA)

 1
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-91601

LX60,RX6#..WG..(EUR,GEN,SA)

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-91601

LX60,RX6#..WG..(EUR,GEN,SA)

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-91601

LX60,RX6#..WG..(EUR,GEN,SA)

 1
52151 - BUMPER ASSY, REAR
52151-29435

LX60,RX6#..WG..(EUR,GEN,SA)

W/PAD

 1
52151 - BUMPER ASSY, REAR
52151-29435

LX60,RX6#..WG..(EUR,GEN,SA)

W/PAD

 1
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08017

RX6#..(DLX,XL)..(EUR,GEN,SA)

 4
52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)
90112-08017

RX6#..(DLX,XL)..(EUR,GEN,SA)

 4
52152B - EXTENSION, REAR BUMPER, RH
52106-29095

LX60,RX6#..WG..(EUR,GEN,SA)

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-29095

LX60,RX6#..WG..(EUR,GEN,SA)

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-29215

LX60,RX6#..WG..(EUR,GEN,SA)

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-29215

LX60,RX6#..WG..(EUR,GEN,SA)

 1
Common parts
90119-12007
90179-06007
90179-08123
91665-40616
Linked diagrams
5102

(8009- )WG

Click highlighted areas on diagram

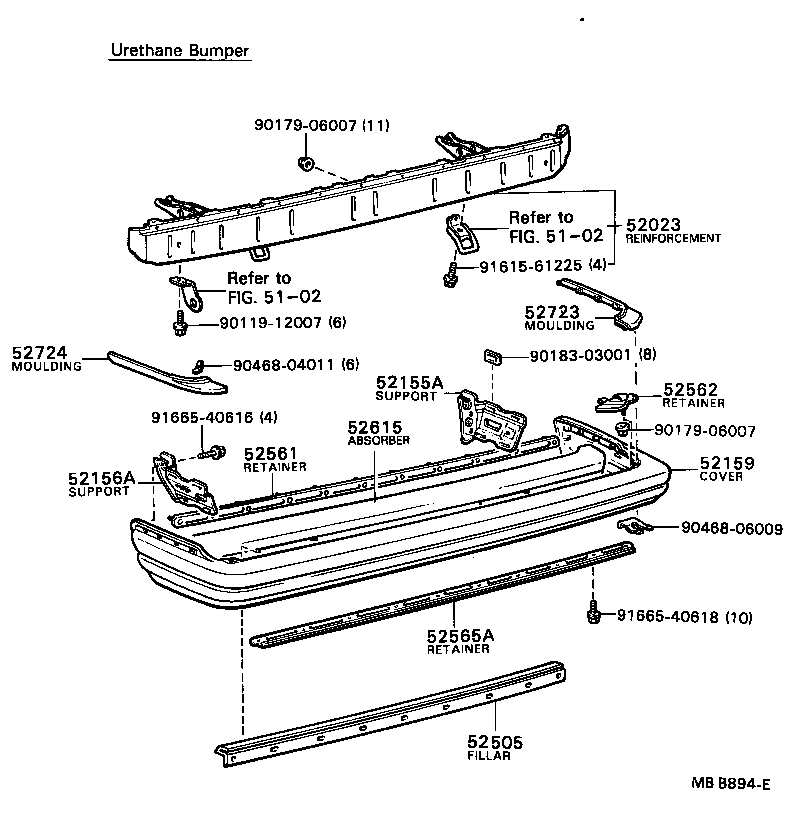

diagram 5102 5102 52023 52155A 52156A 52159 52505 52561 52562 52565A 52615 52723 52724 9011912007 9017906007 9017906007 9018303001 9046804011 9046806009 9161561225 9166540616 9166540618
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-91601

LX60,MX62,RX60..WG..DLX

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-22051

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52155-22050

LX60,MX62,RX60..DLX,GL

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-22070

LX60,MX62,RX60..DLX,GL

 1
52156-22071

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52159 - COVER, REAR BUMPER
52159-22021

LX60,MX62,RX60..DLX,GL

 1
52159-22022

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52521-22040

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52723 - MOULDING, REAR BUMPER EXTENSION, RH
52723-91601

LX60,MX62,RX60..WG..DLX

 1
52724 - MOULDING, REAR BUMPER EXTENSION, LH
52724-91601

LX60,MX62,RX60..WG..DLX

 1
Common parts
90119-12007
90179-06007
90183-03001
90468-04011
90468-06009
91615-61225
91665-40616
91665-40618
Linked diagrams
5102
