RX60RG-XWHDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )RX6#..3FC

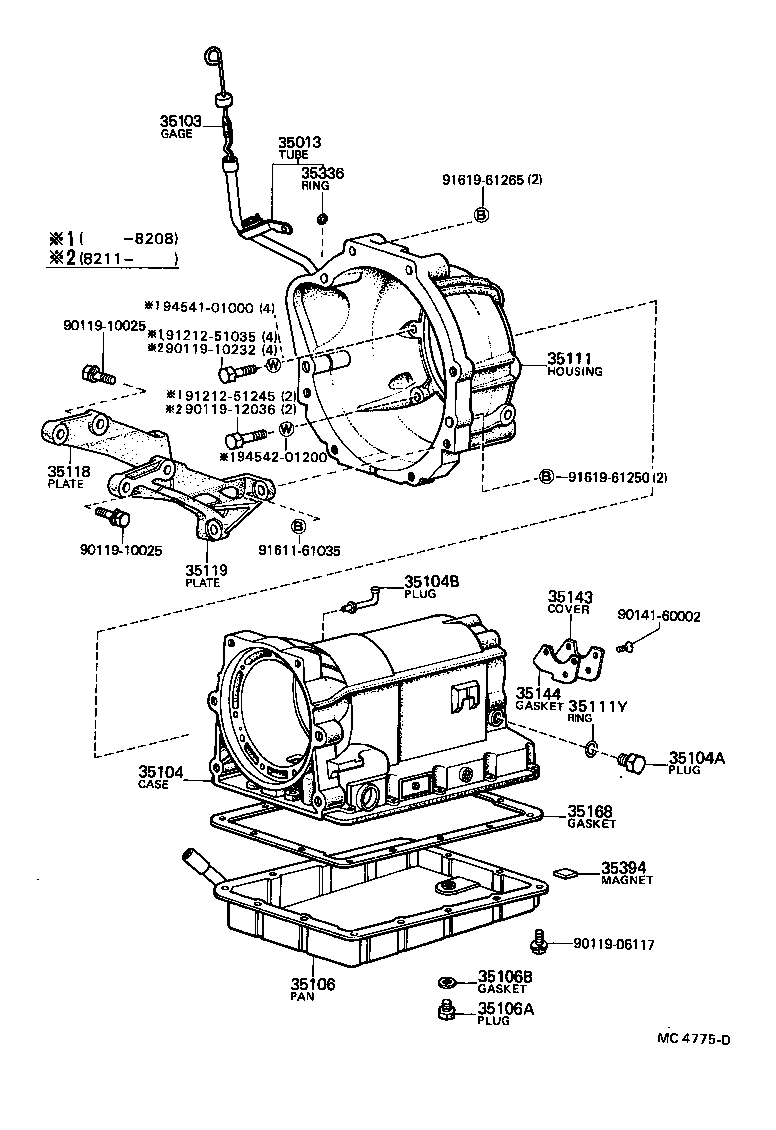

Click highlighted areas on diagram

diagram 35013 35103 35104 35104A 35104B 35106 35106A 35106B 35111 35111Y 35118 35119 35143 35144 35168 35336 35394 9011906117 9011910025 9011910025 9011910232 9011912036 9014160002 9121251035 9121251245 9161161035 9161961250 9161961265 9454101000 9454201200
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-14091

RX6#..ATM

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-14022

RX6#..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-22024

RX60..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08079

LX60,MX62,RX60..ATM

 2
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03069

GX6#,LX60,MX6#,RX6#,TX62..ATM

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-22020

RX6#,TX62..3FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-10003

GX6#,LX60,MX62,RX6#,TX62..ATM

 1
35106B - GASKET, DRAIN PLUG (ATM)
35178-30010

GX6#,LX60,MX6#,RX6#,TX62..ATM

 1
35111 - HOUSING, AUTOMATIC TRANSMISSION
35111-20061

RX60..3FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

GX6#,LX60,MX6#,RX6#,TX62..ATM

 2
35118 - PLATE, STIFENER, RH (ATM)
33118-22030

RX6#..ATM

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-22021

RX6#..ATM

 1
35143 - COVER, TRANSMISSION CASE, REAR
35143-22010

GX6#,LX60,MX6#,RX6#,TX62..ATM

 1
35144 - GASKET, TRANSMISSION CASE REAR COVER
35144-22010

GX6#,LX60,MX6#,RX6#,TX62..ATM

 1
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-22011

GX6#,LX60,MX6#,RX6#,TX62..ATM

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

GX6#,LX60,MX6#,RX6#,TX62..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

LX60,MX62,RX6#,TX62..ATM

 1
Common parts
90119-06117
90119-10025
90119-10232
90119-12036
90141-60002
91212-51035
91212-51245
91611-61035
91619-61250
91619-61265
94541-01000
94542-01200
