RX60RG-XWHDSW (1980)

Toyota Cressida

Production Sep 1980 - Aug 1982
Engine 21R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )3FC

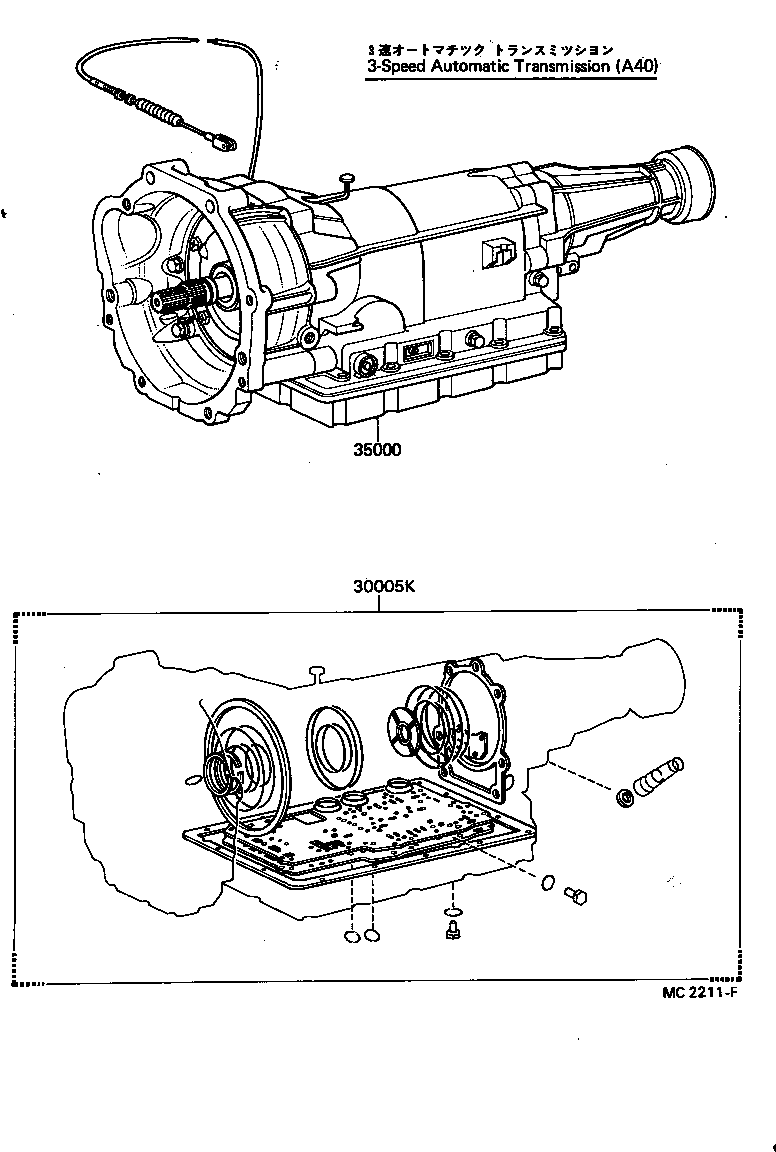

Click highlighted areas on diagram

diagram 30005K 35000
Part # Description Qty Price
30005K - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-22021

RX6#,TX62..3FC

 1
04351-22022

RX6#,TX62..3FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-22690

RX60..RHD..3FC..GL..EUG;RX60..WG..RHD..3FC..EUG

SMG R=19:6,185/70HR14 TIRE

 1
35000-22800

RX60..RHD..3FC..EUG

SMG R=18:6

 1
35000-22691

RX60..RHD..3FC..GL..EUG;RX60..WG..RHD..3FC..EUG

SMG R=19:6,185/70HR14 TIRE

 1
35000-22801

RX60..RHD..3FC..EUG

SMG R=18:6

 1
