RX60R-XEYDS (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1982
Engine
21R
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-22080 |
LX60,RX6#,TX62..RHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-12467 |
GX6#,LX60,RX6#,TX62..RHD..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
GX6#,LX60,RX6#,TX62..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
GX6#,LX60,RX6#,TX62..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-22070 |
LX60,RX6#..RHD..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-30040 |
GX6#,LX60,RX6#,TX62..RHD..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08027 |
RX6#..RHD..MTM |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91651-40818 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||
(8009- )RHD..MTM

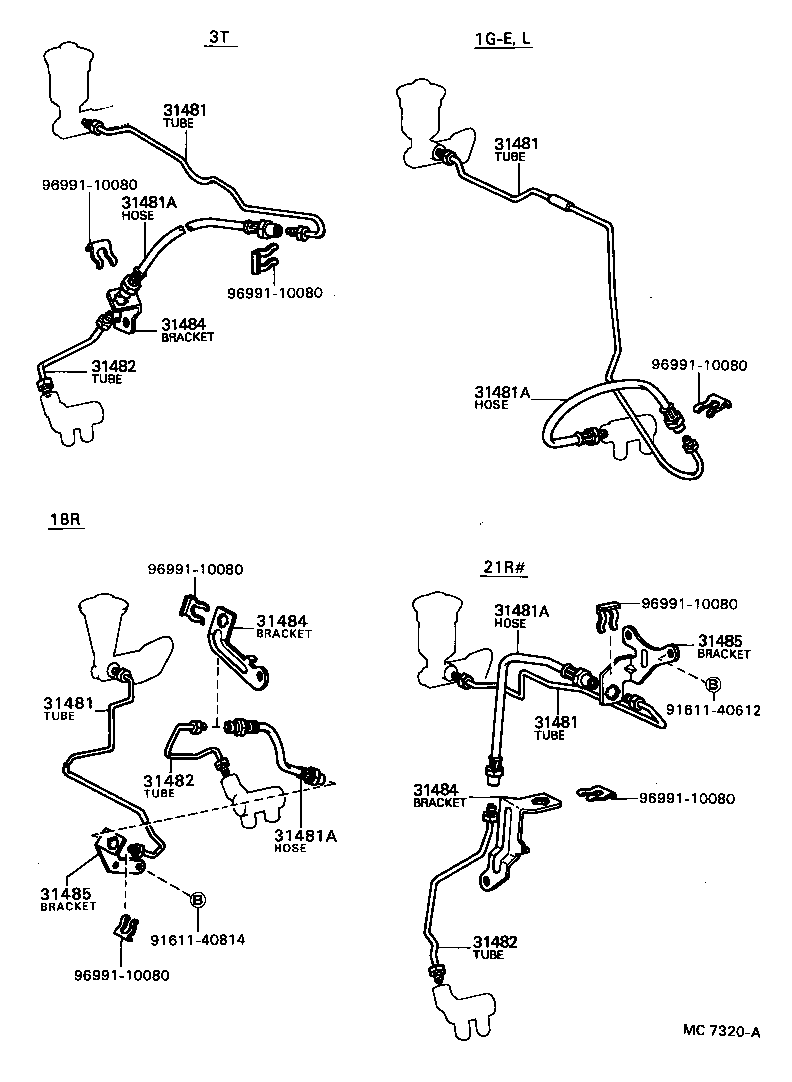

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-22210 |
RX60..RHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-22210 |
RX60..RHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-22210 |
RX60..RHD..MTM |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-22210 |
RX60..RHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96950-33805 |
RX60..RHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96950-33805 |
RX60..RHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96950-33805 |
RX60..RHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96950-33805 |
RX60..RHD..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-22090 |
RX60..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-22090 |
RX60..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-22090 |
RX60..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-22080 |
RX60..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-22080 |
RX60..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-22080 |
RX60..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-22030 |
RX60..RHD..MTM |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-22030 |
RX60..RHD..MTM |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
| 91611-40814 | ||||
| 96991-10080 | ||||
