RX60R-XEPDSN (1982)

Toyota Cressida

Production Sep 1982 - Apr 1985
Engine 21R
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )21R

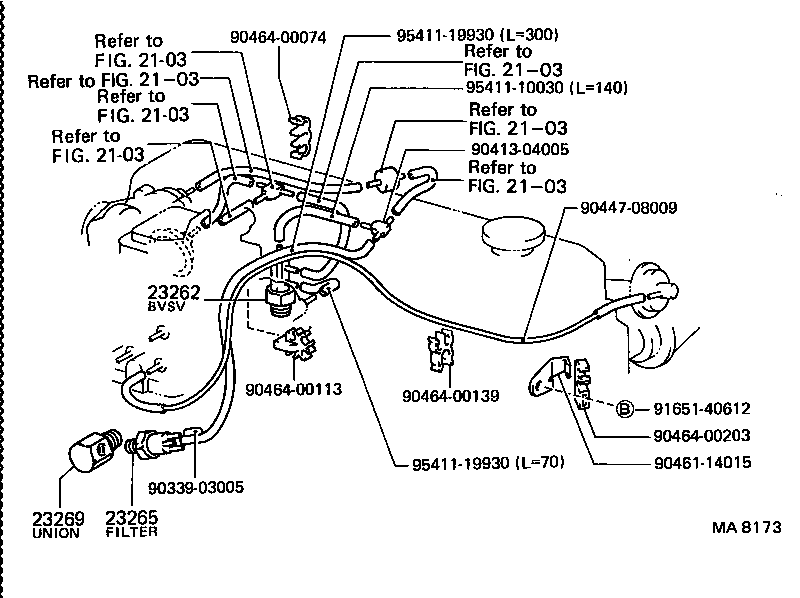

Click highlighted areas on diagram

diagram 2103 2103 2103 2103 2103 2103 2103 23262 23265 23269 9033903005 9041304005 9044708009 9046114015 9046400074 9046400113 9046400139 9046400203 9165140612 9541110030 9541119930 9541119930
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
25810-27010

21R..RX60

 1
23265 - FILTER, GAS, NO.1
90917-11024

21R#..RX60

 1
23269 - UNION(FOR GAS FILTER)
90404-54016

21R#..RX60

 1
Common parts
90339-03005
90413-04005
90447-08009
90461-14015
90464-00074
90464-00113
90464-00139
90464-00203
91651-40612
95411-10030
95411-19930
Linked diagrams
2103
