Toyota Cressida RX60 MANIFOLD - JDM Part Detective

RX60R-XEKDS (1980)

Toyota Cressida

Production Sep 1980 - Jul 1984

Engine 21R

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8009- )L

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-37010	21R#..RX60	09/1980 - 07/1982	1
17111-37020	21R#..RX60	07/1982 - 07/1984	1
17141 - MANIFOLD, EXHAUST
17141-37030	21R..RX60	09/1980 - 03/1981	1
17141-35050	21R..RX60	07/1982 - 11/1983	1
17141-35020	21R..RX60	03/1981 - 07/1982	1
17141-37040	21R..RX60	11/1983 - 07/1984	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039	21R#..RX60 L=39,S=15&15	09/1980 - 02/1981	3
90116-10058	21R#..RX60 L=46.5,S=14&20	02/1981 - 03/1983	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317	21R#..RX60 L=36,S=13&13	09/1980 - 06/1982	3
90116-08013	21R#..RX60 L=34.5,S=9&16	09/1980 - 10/1982	2
90116-10011	21R#..RX60 L=42,S=12&25	09/1980 - 06/1982	4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317	21R#..RX60 L=36,S=13&13	09/1980 - 06/1982	3
90116-08013	21R#..RX60 L=34.5,S=9&16	09/1980 - 10/1982	2
90116-10011	21R#..RX60 L=42,S=12&25	09/1980 - 06/1982	4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020	21R#..RX60	08/1982 - 07/1984	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37010	21R..RX60	03/1983 - 07/1984	1
17177-38011	21R..RX60	09/1980 - 03/1983	1
Common parts
90119-10237
90170-08184
90170-10199
90179-08040
90201-10283
91611-60822
91621-60825
94611-10800

(8009-8208)21R

Click highlighted areas on diagram

Part #	Description	Period	Qty
16347 - GASKET, WATER BY-PASS
16347-37020	21R#..RX60	08/1982 - 07/1984	1
16347-37010	21R#..RX60	09/1980 - 08/1982	1
16353 - FLANGE, WATER BY-PASS
16353-37040	21R..RX60..GEN,ME,SA	08/1982 - 01/1984	1
16353-37020	21R#..RX60	08/1981 - 04/1982	1
16353-37010	21R#..RX60	09/1980 - 08/1981	1
16353-37010	21R..RX60..GEN,ME,SA	04/1982 - 08/1982	1
16353-37040	21R..RX60..GEN,SA	01/1984 - 07/1984	1
17111 - MANIFOLD, INTAKE
17111-37010	21R#..RX60	09/1980 - 07/1982	1
17111-37020	21R#..RX60	07/1982 - 07/1984	1
17111A - PLUG, NO.1
90345-51025	21R#..RX60	09/1980 - 02/1982	1
17111B - PLUG, NO.2
90345-53007	21R#..RX60	09/1980 - 10/1981	3
17111B - PLUG, NO.2
90345-53007	21R#..RX60	09/1980 - 10/1981	3
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-38010	21R..RX60	09/1980 - 07/1984	1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25628-38010	21R..RX60	09/1980 - 04/1985	1
17141 - MANIFOLD, EXHAUST
17141-37030	21R..RX60	09/1980 - 03/1981	1
17141-35050	21R..RX60	07/1982 - 11/1983	1
17141-35020	21R..RX60	03/1981 - 07/1982	1
17141-37040	21R..RX60	11/1983 - 07/1984	1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051	21R#..RX60 L=40,S=11&11	09/1980 - 04/1985	2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039	21R#..RX60 L=39,S=15&15	09/1980 - 02/1981	3
90116-10058	21R#..RX60 L=46.5,S=14&20	02/1981 - 03/1983	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317	21R#..RX60 L=36,S=13&13	09/1980 - 06/1982	3
90116-08013	21R#..RX60 L=34.5,S=9&16	09/1980 - 10/1982	2
90116-10011	21R#..RX60 L=42,S=12&25	09/1980 - 06/1982	4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317	21R#..RX60 L=36,S=13&13	09/1980 - 06/1982	3
90116-08013	21R#..RX60 L=34.5,S=9&16	09/1980 - 10/1982	2
90116-10011	21R#..RX60 L=42,S=12&25	09/1980 - 06/1982	4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35020	21R..RX60	09/1980 - 12/1981	1
17167-35021	21R..RX60	12/1981 - 08/1982	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37020	21R#..RX60	09/1980 - 08/1982	1
17167-35030	21R..RX60..GEN,ME,SA	08/1982 - 07/1984	1
17167-35050	21R..RX60..GEN W/HOT AIR INTAKE	08/1982 - 07/1984	1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-12001	21R#..RX60 OD=12.5	09/1980 - 08/1982	4
90480-11001	21R#..RX60 OD=11.5	09/1980 - 08/1982	2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37010	21R..RX60	03/1983 - 07/1984	1
17177-38011	21R..RX60	09/1980 - 03/1983	1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020	21R#..RX60	09/1980 - 08/1982	1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010	21R#..RX60	09/1980 - 08/1982	1
Common parts
90170-10199
90179-06026
90179-10052
91611-60816
91621-60828
91651-60612
94110-50800

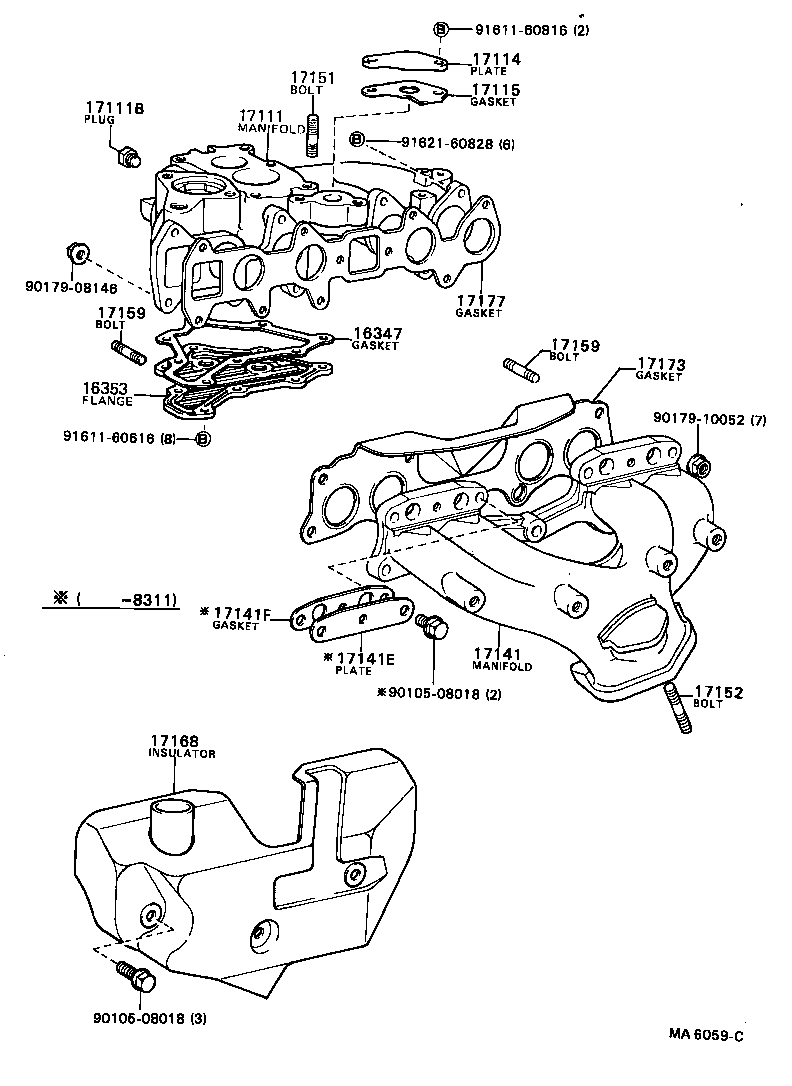

(8208-8407)21R

Click highlighted areas on diagram

Part #	Description	Period	Qty
16347 - GASKET, WATER BY-PASS
16347-37020	21R#..RX60	08/1982 - 07/1984	1
16347-37010	21R#..RX60	09/1980 - 08/1982	1
16353 - FLANGE, WATER BY-PASS
16353-37040	21R..RX60..GEN,ME,SA	08/1982 - 01/1984	1
16353-37020	21R#..RX60	08/1981 - 04/1982	1
16353-37010	21R#..RX60	09/1980 - 08/1981	1
16353-37010	21R..RX60..GEN,ME,SA	04/1982 - 08/1982	1
16353-37040	21R..RX60..GEN,SA	01/1984 - 07/1984	1
17111 - MANIFOLD, INTAKE
17111-37010	21R#..RX60	09/1980 - 07/1982	1
17111-37020	21R#..RX60	07/1982 - 07/1984	1
17111B - PLUG, NO.2
90345-53007	21R#..RX60	09/1980 - 10/1981	3
17114 - PLATE, INTAKE MANIFOLD HOLE COVER
25617-38010	21R..RX60	09/1980 - 07/1984	1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
25628-38010	21R..RX60	09/1980 - 04/1985	1
17141 - MANIFOLD, EXHAUST
17141-37030	21R..RX60	09/1980 - 03/1981	1
17141-35050	21R..RX60	07/1982 - 11/1983	1
17141-35020	21R..RX60	03/1981 - 07/1982	1
17141-37040	21R..RX60	11/1983 - 07/1984	1
17141E - PLATE, EXHAUST MANIFOLD
17148-35010	21R..RX60	08/1982 - 11/1983	1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
17378-37010	21R..RX60	08/1982 - 11/1983	1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051	21R#..RX60 L=40,S=11&11	09/1980 - 04/1985	2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039	21R#..RX60 L=39,S=15&15	09/1980 - 02/1981	3
90116-10058	21R#..RX60 L=46.5,S=14&20	02/1981 - 03/1983	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317	21R#..RX60 L=36,S=13&13	09/1980 - 06/1982	3
90116-08013	21R#..RX60 L=34.5,S=9&16	09/1980 - 10/1982	2
90116-10011	21R#..RX60 L=42,S=12&25	09/1980 - 06/1982	4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10317	21R#..RX60 L=36,S=13&13	09/1980 - 06/1982	3
90116-08013	21R#..RX60 L=34.5,S=9&16	09/1980 - 10/1982	2
90116-10011	21R#..RX60 L=42,S=12&25	09/1980 - 06/1982	4
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37020	21R#..RX60	09/1980 - 08/1982	1
17167-35030	21R..RX60..GEN,ME,SA	08/1982 - 07/1984	1
17167-35050	21R..RX60..GEN W/HOT AIR INTAKE	08/1982 - 07/1984	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-35020	21R#..RX60	08/1982 - 07/1984	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37010	21R..RX60	03/1983 - 07/1984	1
17177-38011	21R..RX60	09/1980 - 03/1983	1
Common parts
90105-08018
90179-08146
90179-10052
91611-60616
91611-60816
91621-60828
