RX60LG-XWYDS (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1981
Engine
21R
Transmission
3H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )WG..ARL,EUR,GEN,SA ; (8308- )WG..ME

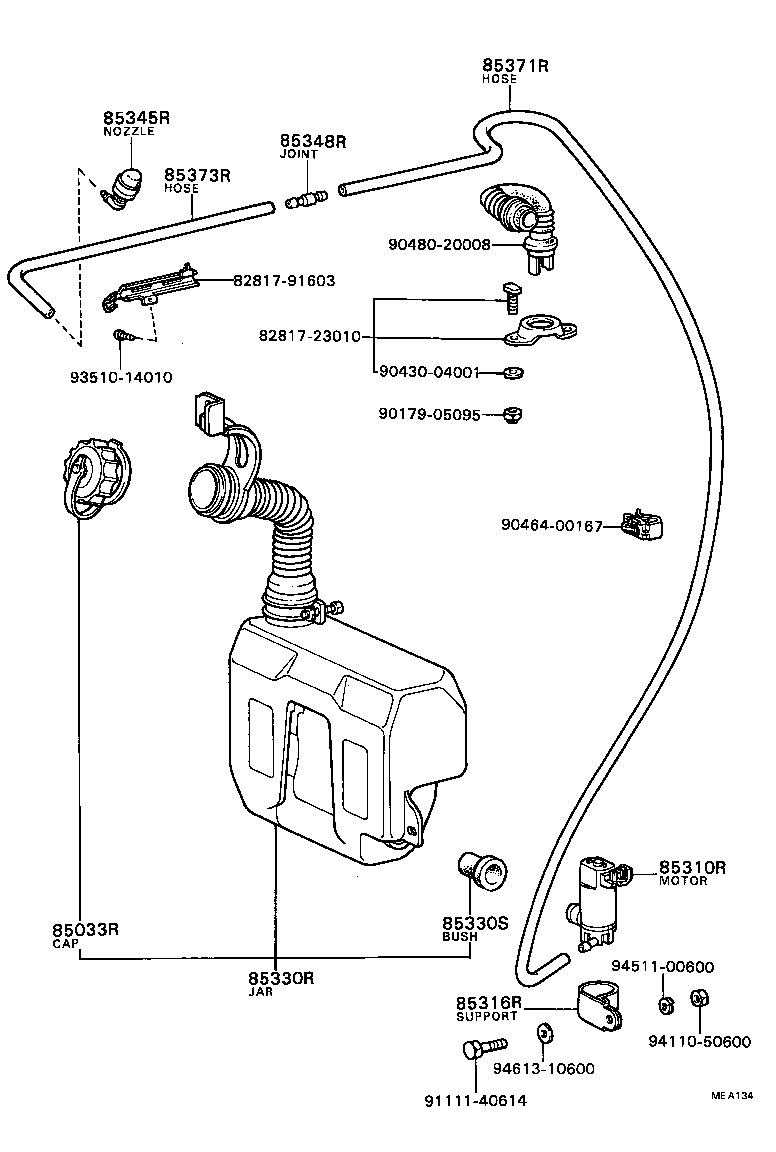

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033R - CAP ASSY, REAR WASHER | ||||
| 85332-20070 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-20100 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85316R - SUPPORT, REAR WASHER MOTOR | ||||
| 85316-23010 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-91601 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90099-32089 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85035-23030 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85355-87201 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06006 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) *H,L=1700 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33299 |
LX60,MX62,RX6#..WG..(ARL,EUR,GEN,SA) *H,L=400 |
1 | ||
| Common parts | ||||
| 82817-23010 | ||||
| 82817-91603 | ||||
| 90179-05095 | ||||
| 90430-04001 | ||||
| 90464-00167 | ||||
| 90480-20008 | ||||
| 91111-40614 | ||||
| 93510-14010 | ||||
| 94110-50600 | ||||
| 94511-00600 | ||||
| 94613-10600 | ||||
