RX60LG-XWMDCC (1982)

Toyota Cressida

Production Aug 1982 - Jul 1984
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8404)WG

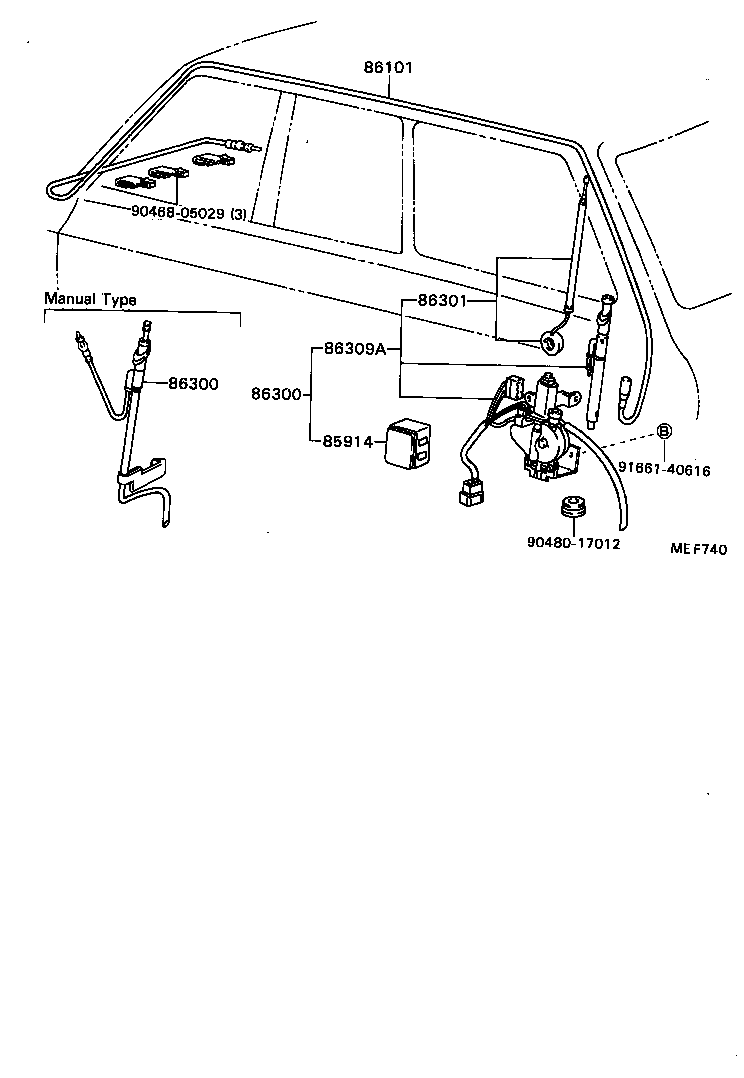

Click highlighted areas on diagram

diagram 85914 86101 86300 86300 86300 86301 86301 86309A 9046805029 9048017012 9166140616
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-91602

RX60..WG..SDZ;LX60,RX60..WG..GEN

MANUAL TYPE

 1
86300-91602

LX60,RX60..WG..(EUR,GEN)

MANUAL TYPE

 1
86300-91601

LX60,MX62,RX60..WG

MOTOR TYPE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91602

RX60..WG..SDZ;LX60,RX60..WG..GEN

MANUAL TYPE

 1
86300-91602

LX60,RX60..WG..(EUR,GEN)

MANUAL TYPE

 1
86300-91601

LX60,MX62,RX60..WG

MOTOR TYPE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91602

RX60..WG..SDZ;LX60,RX60..WG..GEN

MANUAL TYPE

 1
86300-91602

LX60,RX60..WG..(EUR,GEN)

MANUAL TYPE

 1
86300-91601

LX60,MX62,RX60..WG

MOTOR TYPE

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-91601

LX60,MX62,RX60..WG

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-91601

LX60,MX62,RX60..WG

 1
Common parts
90468-05029
90480-17012
91661-40616

(8404- )WG

Click highlighted areas on diagram

diagram 85914 86101 86300 86300 86301 86309A 9046805029 9048017012 9166140616
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-91602

RX60..WG..SDZ;LX60,RX60..WG..GEN

MANUAL TYPE

 1
86300-91602

LX60,RX60..WG..(EUR,GEN)

MANUAL TYPE

 1
86300-91601

LX60,MX62,RX60..WG

MOTOR TYPE

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-91602

RX60..WG..SDZ;LX60,RX60..WG..GEN

MANUAL TYPE

 1
86300-91602

LX60,RX60..WG..(EUR,GEN)

MANUAL TYPE

 1
86300-91601

LX60,MX62,RX60..WG

MOTOR TYPE

 1
86301 - POLE SUB-ASSY, ANTENNA
86301-91601

LX60,MX62,RX60..WG

 1
Common parts
90468-05029
90480-17012
91661-40616
