RX60LG-XWMDCC (1982)

Toyota Cressida

Production Aug 1982 - Jul 1984
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8208- )WG

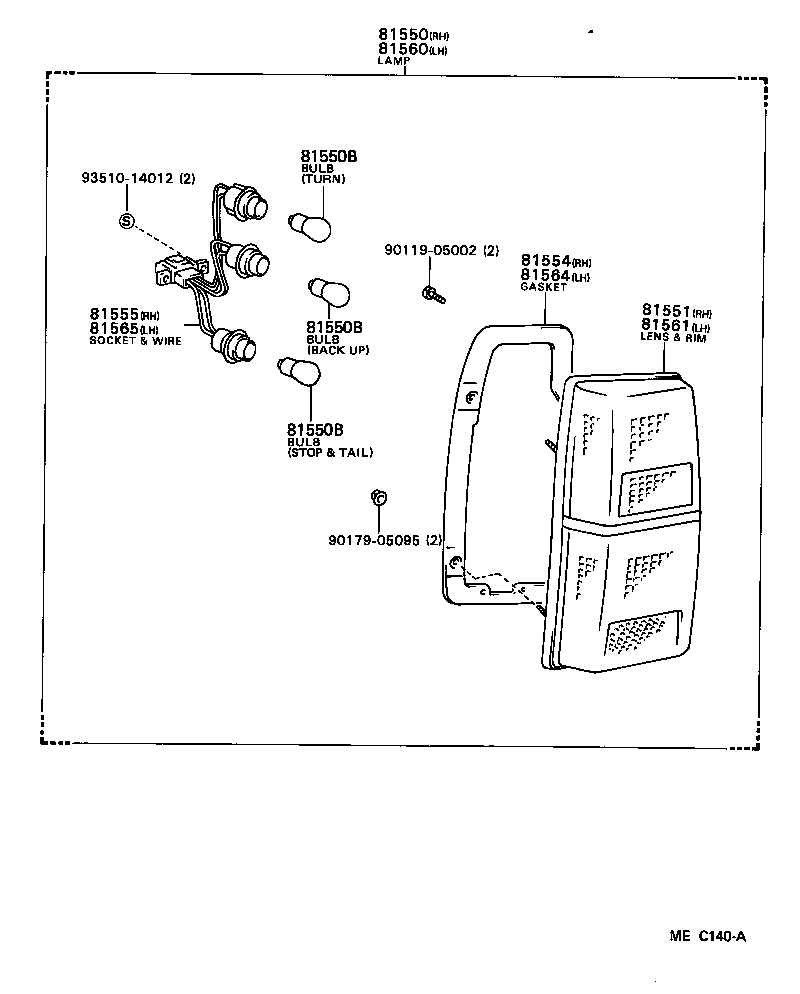

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9011905002 9017905095 9351014012
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80095

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81550-80141

LX60,RX60..WG..EUR

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX6#,LX60,MX6#,RX6#,TX62

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11210

LX60,MX62,RX6#..WG

12V 21W,12V 21W(TURN OR BACK UP)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX6#,LX60,MX6#,RX6#,TX62

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11210

LX60,MX62,RX6#..WG

12V 21W,12V 21W(TURN OR BACK UP)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

GX6#,LX60,MX6#,RX6#,TX62

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11210

LX60,MX62,RX6#..WG

12V 21W,12V 21W(TURN OR BACK UP)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81551-91605

LX60,RX60..WG..EUR

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-91601

LX60,MX62,RX6#..WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81555-91605

LX60,RX60..WG..EUR

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80145

LX60,RX60..WG..EUR

 1
81560-80098

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-91606

LX60,RX60..WG..EUR

 1
81561-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-91601

LX60,MX62,RX6#..WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-91605

LX60,RX60..WG..EUR

 1
81555-91602

LX60,MX62,RX6#..WG..(ARL,EUR,SA)

 1
Common parts
90119-05002
90179-05095
93510-14012
