RX60L-XEPNSV (1982)
Toyota Cressida
Production
Aug 1982
-
Jul 1984
Engine
21R
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8208-8308)RX60..LHD..4FC ; (8308- )RX60..4FC..ME

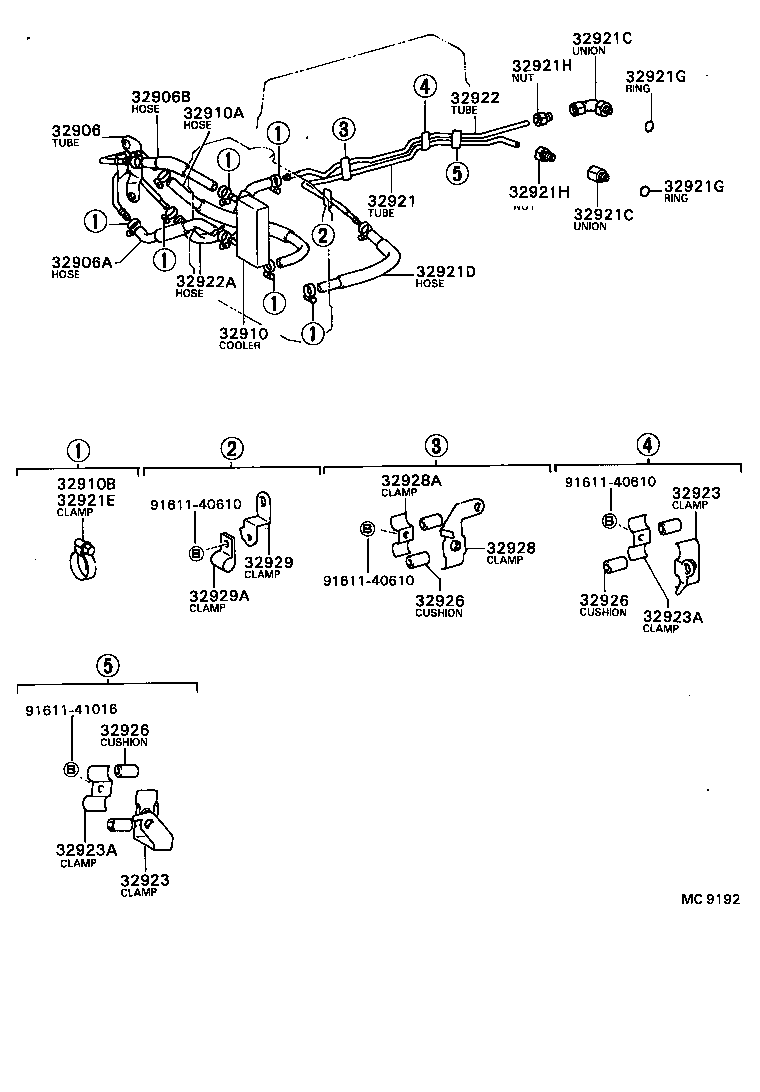

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906 - TUBE SUB-ASSY, OIL COOLER | ||||
| 32907-22010 |
RX60..4FC..ME |
1 | ||
| 32907-22010 |
RX60..LHD..4FC |
1 | ||
| 32906A - HOSE, OIL COOLER TUBE(FOR INLET) | ||||
| 32941-22030 |
RX60..LHD..4FC |
1 | ||
| 32941-22030 |
RX60..4FC..ME |
1 | ||
| 32906B - HOSE, OIL COOLER TUBE(FOR OUTLET) | ||||
| 32941-22030 |
RX60..LHD..4FC |
1 | ||
| 32941-22030 |
RX60..4FC..ME |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-22010 |
RX60..LHD..4FC |
1 | ||
| 32910-22010 |
RX60..4FC..ME |
1 | ||
| 32910A - HOSE, OIL COOLER WATER OUTLET | ||||
| 32942-14030 |
RX60..4FC..ME |
1 | ||
| 32942-14030 |
RX60..LHD..4FC |
1 | ||
| 32910B - CLAMP(FOR OIL COOLER WATER OUTLET HOSE) | ||||
| 90460-14085 |
RX60..4FC..ME |
2 | ||
| 90460-14085 |
RX60..LHD..4FC |
2 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-30020 |
RX60..ATM |
1 | ||
| 32921E - CLAMP, HOSE(FOR OIL COOLER) | ||||
| 90460-14085 |
GX6#,LX60,MX6#,RX6#,TX62..ATM |
6 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX6#,LX60,MX6#,RX6#,TX62..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
GX6#,LX60,MX6#,RX6#,TX62..ATM |
2 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-14025 |
RX6#..ATM |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-22020 |
RX60..ATM HOUSING FR |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-22020 |
RX60..ATM HOUSING FR |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12085 |
LX60,RX60..ATM |
2 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12085 |
LX60,RX60..ATM |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
LX60,MX62,RX60,TX62..ATM L=25,ID=8 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
LX60,MX62,RX60,TX62..ATM L=25,ID=8 |
8 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30011 |
LX60,MX62,RX60,TX62..ATM L=25,ID=8 |
8 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-20070 |
RX60..ATM |
1 | ||
| 32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90462-12085 |
GX6#,RX60,TX62..ATM |
1 | ||
| 32929 - CLAMP, FLEXIBLE HOSE, NO.2 | ||||
| 32929-20070 |
RX60..ATM |
1 | ||
| 32929A - CLAMP(FOR FLEXIBLE HOSE CLAMP) | ||||
| 90461-06033 |
RX6#..ATM |
1 | ||
| Common parts | ||||
| 91611-40610 | ||||
| 91611-41016 | ||||
