RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8308)SAA ; (8009- )ARL,EUR,GEN,SA

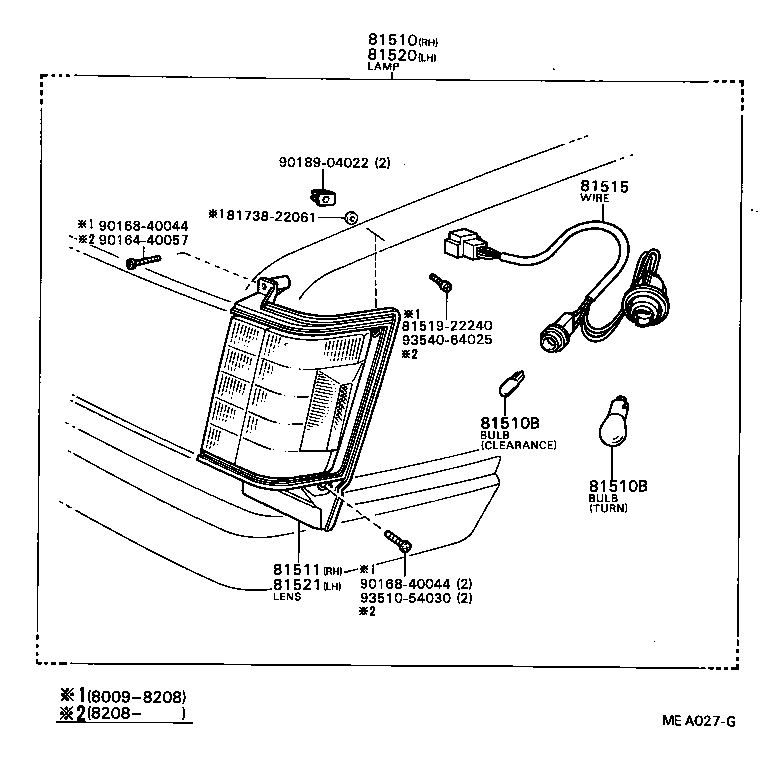

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 8151922240 81520 81521 8173822061 9016440057 9016840044 9016840044 9018904022 9351054030 9354064025
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29675

LX60,RX6#,TX62..EUR,SA

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LX60,RX6#,TX62..EUR,SA

12V 21W,12V 21W(TURN)

 2
99132-11210

GX6#,LX60,MX62,RX60,TX62

12V 21W,12V 21W(TURN)

 2
99132-12050

GX6#,LX60,MX62,RX6#,TX62

12V 5W,12V 5W(CLEARANCE)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

LX60,RX6#,TX62..EUR,SA

12V 21W,12V 21W(TURN)

 2
99132-11210

GX6#,LX60,MX62,RX60,TX62

12V 21W,12V 21W(TURN)

 2
99132-12050

GX6#,LX60,MX62,RX6#,TX62

12V 5W,12V 5W(CLEARANCE)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-22250

LX60,RX6#,TX62..EUR,SA

 1
81511-22251

GX6#,LX60,MX62,RX60,TX62

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-22250

LX60,RX6#,TX62..EUR,SA

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29675

LX60,RX6#,TX62..EUR,SA

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-22250

LX60,RX6#,TX62..EUR,SA

 1
81521-22251

GX6#,LX60,MX62,RX60,TX62

 1
Common parts
81519-22240
81738-22061
90164-40057
90168-40044
90189-04022
93510-54030
93540-64025
