RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

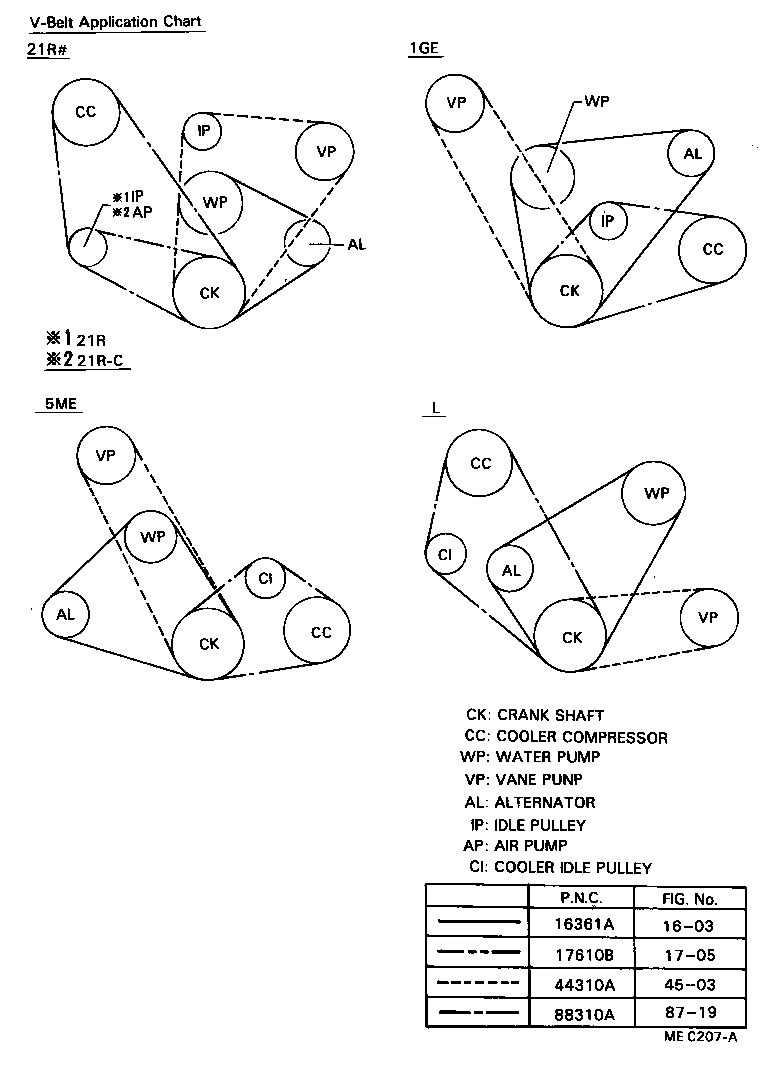

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 4503 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

21R#..RX60

L=880

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

21RC..RX60

 1
Linked diagrams
1603
1705
4503
8719
