RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

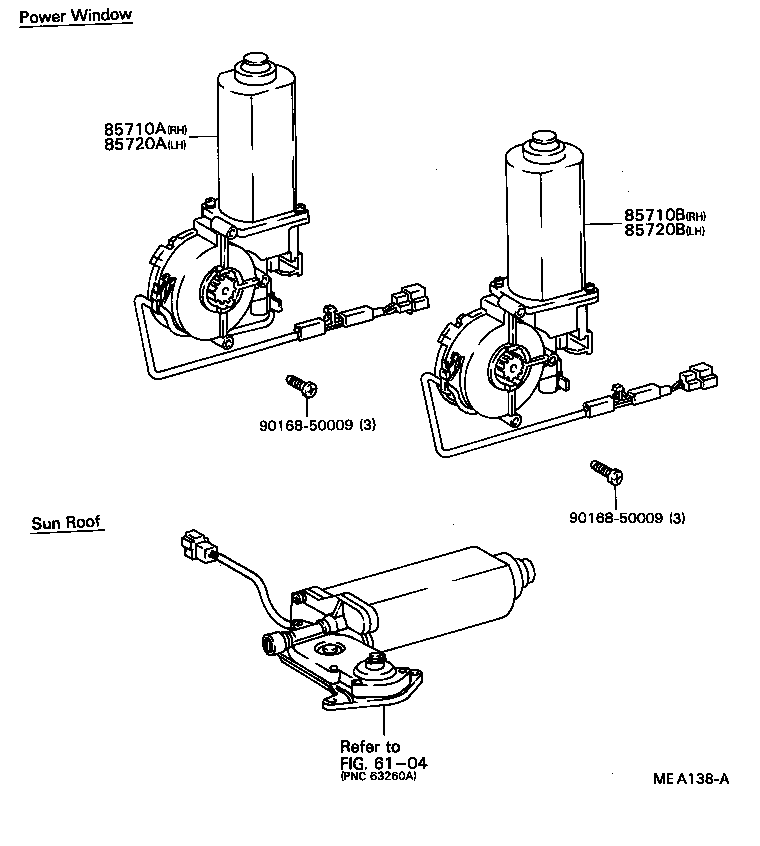

Click highlighted areas on diagram

diagram 6104 85710A 85710B 85720A 85720B 9016850009 9016850009
Part # Description Qty Price
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85720-22060

LX60,RX60..LHD..(DLX,GL)..EUR

 1
85720-22061

LX60,RX60..LHD..(DLX,GL)..EUR

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85720-22061

LX60,RX60..LHD..(DLX,GL)..EUR

 1
85720-22060

LX60,RX60..LHD..(DLX,GL)..EUR

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85710-22090

LX60,RX60..LHD..(DLX,GL)..EUR

 1
85710-22091

LX60,RX60..LHD..(DLX,GL)..EUR

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85710-22091

LX60,RX60..LHD..(DLX,GL)..EUR

 1
85710-22090

LX60,RX60..LHD..(DLX,GL)..EUR

 1
Common parts
90168-50009
Linked diagrams
6104
