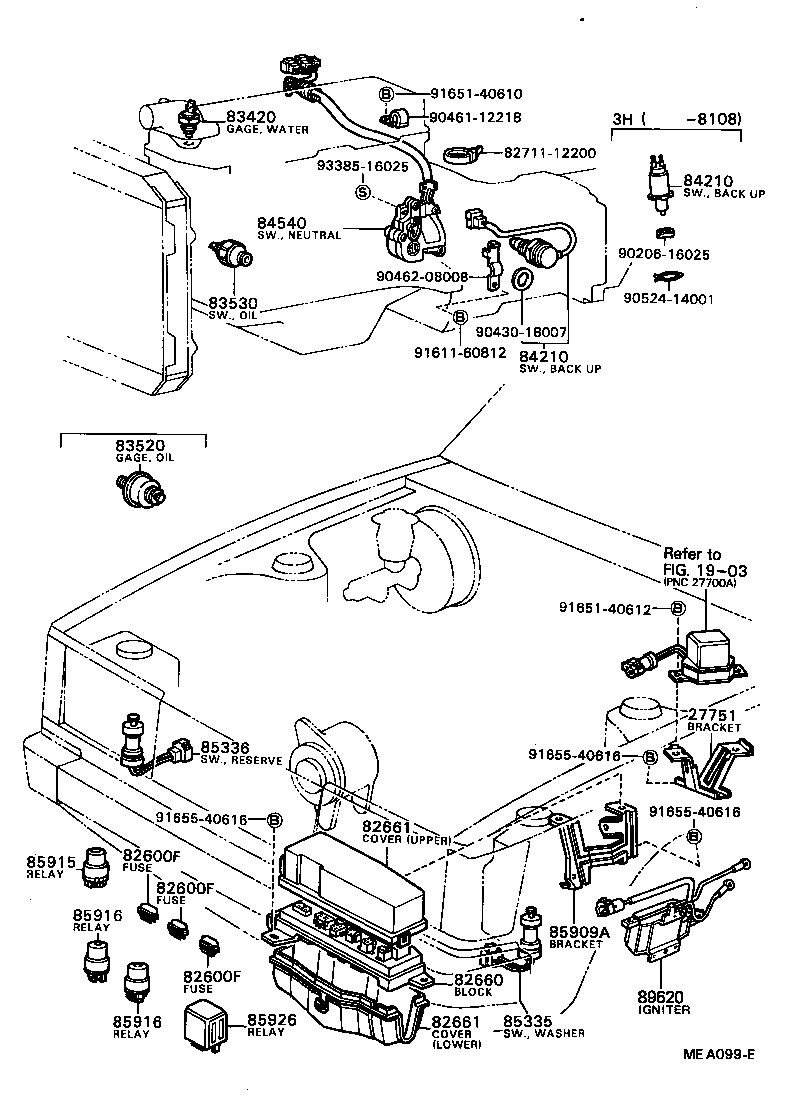

RX60L-XEMDCC (1980)
Toyota Cressida
(8009- )RX6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27751 - BRACKET, GENERATOR REGULATOR | ||||
| 27751-70010 |
21R#,18R,3T..RX6#,TX62 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22110 |
LX60,RX60..EUR SUMITOMO |
1 | ||
| 82660-22120 |
LX60,RX60..EUR YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22020 |
LX60,RX60..EUR UPR,SUMITOMO |
1 | ||
| 82661-22050 |
LX60,RX60..EUR UPR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,YAZAKI |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22020 |
LX60,RX60..EUR UPR,SUMITOMO |
1 | ||
| 82661-22050 |
LX60,RX60..EUR UPR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX60,MX6#,RX6#,TX62 LWR,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
GX6#,LX60,MX6#,RX6#,TX62 DENSO |
1 | ||
| 83420-20020 |
GX6#,LX60,MX6#,RX6#,TX62 YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
RX60..DLX,XL |
1 | ||
| 83530-10020 |
RX6#..DLX,XL |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,5F |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
RX60..RHD..3H;GX6#,LX60,RX6#,TX62..4F,5F |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX60,MX62,RX6#,TX62 |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX60,MX62,RX6#,TX62 |
2 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
LX60,RX60..EUR |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90206-16025 | ||||
| 90430-18007 | ||||
| 90461-12218 | ||||
| 90462-08008 | ||||
| 90524-14001 | ||||
| 91611-60812 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||

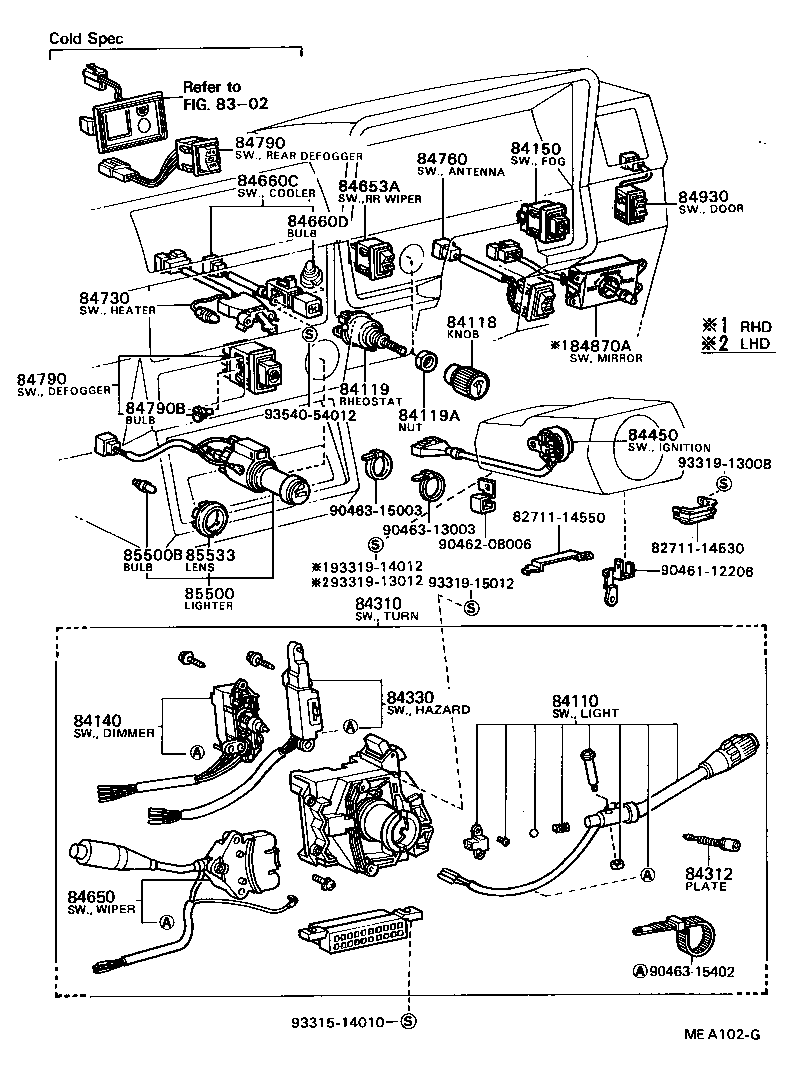

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69035 |
LX60,RX60..LHD |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
GX6#,LX60,MX6#,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-22031 |
LX60,MX62,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84119-22032 |
LX60,MX62,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
GX6#,LX60,MX6#,RX6#..DLX,GL,SXL,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29036 |
LX60,RX60..LHD |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 84160-22020 |
LX60,RX60..SED..EUR |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20452 |
LX60,RX60..LHD..(DLX,GL)..(EUR,GEN) W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29036 |
LX60,RX60..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-30131 |
LX60,RX60..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29197 |
LX60,RX60..LHD..(DLX,GL)..(EUR,GEN) W/*IW |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-20010 |
LX60,MX62,RX60..SED..(ARL,EUR,GEN) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12081 |
LX60,MX62,RX6# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12081 |
LX60,MX62,RX6# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
GX6#,LX60,MX6#,RX6# 12V 1.4W,12V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22110 |
GX61,LX60,RX60..EUR |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-12034 |
GX61,LX60,RX60..EUR 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| Common parts | ||||
| 82711-14530 | ||||
| 82711-14550 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-13012 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-54012 | ||||
| Linked diagrams | ||||
| 8302 | ||||

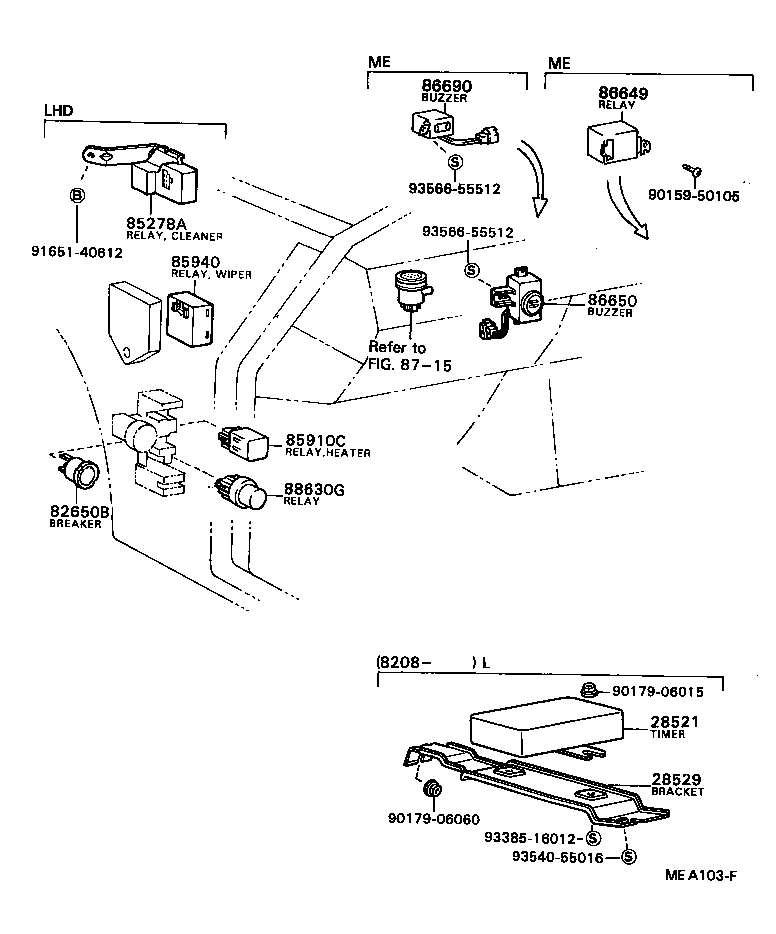

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20010 |
LX60,MX62,RX6#,TX62 *HEA & COOLER |
1 | ||
| 82650-20011 |
GX6#,LX60,MX62,RX6#,TX62 30A,*HEA & COOLER |
1 | ||
| 85278A - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-22030 |
LX60,RX60..LHD..EUR |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22060 |
LX60,MX62,RX6#..DLX,GL,SXL,XL |
1 | ||
| Common parts | ||||
| 90159-50105 | ||||
| 90179-06015 | ||||
| 90179-06060 | ||||
| 91651-40612 | ||||
| 93385-16012 | ||||
| 93540-55016 | ||||
| 93566-55512 | ||||
| Linked diagrams | ||||
| 8715 | ||||

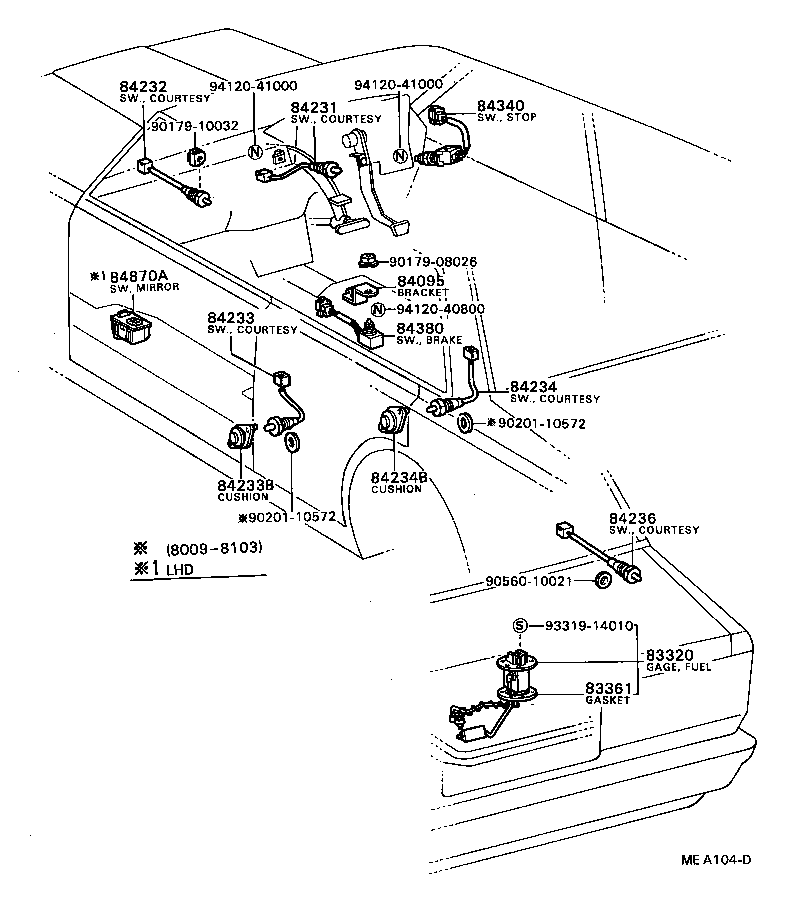

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29425 |
MX62,RX60..SED |
1 | ||
| 83320-29425 |
LX60,MX62,RX60..SED..(DLX,GL) |
1 | ||
| 83320-29505 |
RX60..SED..EUR |
1 | ||
| 83320-29507 |
RX60..SED..EUR |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22030 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-20010 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22050 |
LX60,MX62,RX60 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22050 |
LX60,MX62,RX60 |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-22040 |
MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
GX6#,LX60,MX62,RX6#,TX62 |
1 | ||
| 84340-22060 |
LX60,MX62,RX60 MATSUSHITA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
GX6#,LX60,MX6#,RX6#,TX62..3FC,4F,4FC,5F |
1 | ||
| Common parts | ||||
| 90179-08026 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90560-10021 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

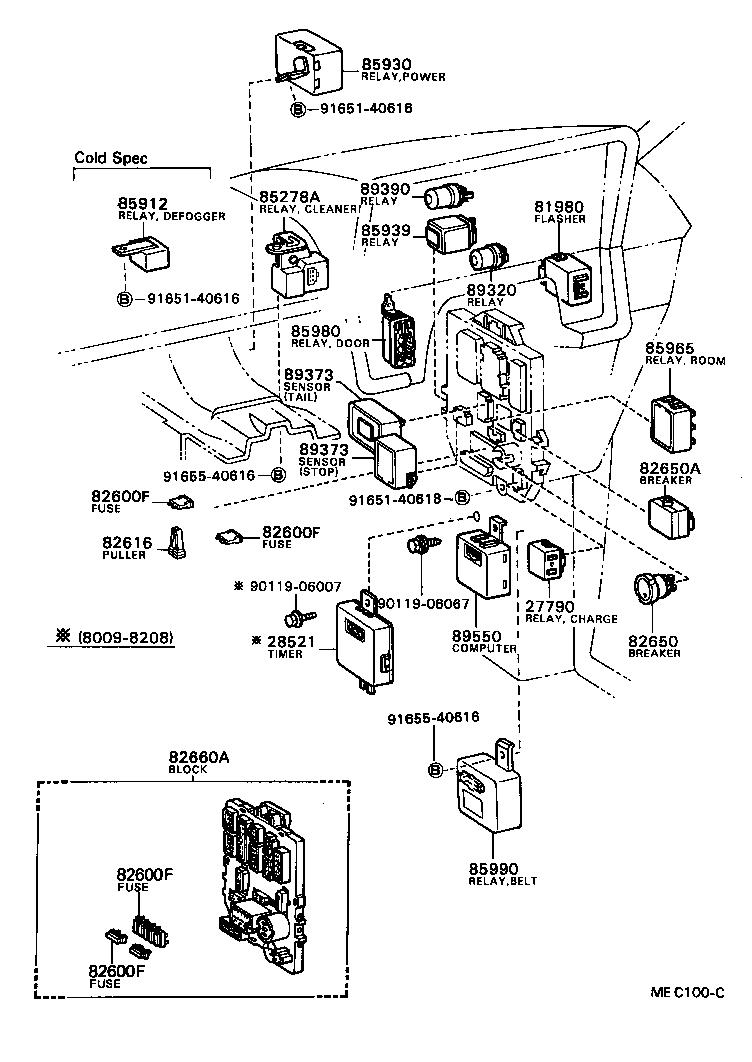

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
LX60,MX62,RX6#,TX62 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX60,MX6#,RX6#,TX62 20A,YELLOW,20A |
1 | ||
| 90982-09003 |
GX6#,LX60,MX6#,RX6#,TX62 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX60,MX6#,RX6#,TX62 5A,5A |
1 | ||
| 90982-09005 |
GX6#,LX60,MX6#,RX6#,TX62 7.5A,7.5A |
6 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
LX60,MX62,RX6#,TX62 DEFOGGER |
1 | ||
| 82650-20011 |
GX6#,LX60,MX62,RX6#,TX62 30A,DEFOGGER |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-22020 |
LX60,RX60..LHD..(DLX,GL)..EUR POWER WINDOW |
1 | ||
| 82650-22020 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN) SUN ROOF |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22030 |
RX6#,TX62 |
1 | ||
| 85278A - RELAY ASSY, HEADLAMP CLEANER CONTROL | ||||
| 85276-22030 |
LX60,RX60..LHD..EUR |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
LX60,RX60..SED..(DLX,GL)..(EUR,GEN) W/SUN ROOF |
1 | ||
| 90987-02002 |
LX60,RX60..LHD..(DLX,GL)..EUR |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22020 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22310 |
RX60..SDN,SDZ |
1 | ||
| Common parts | ||||
| 90119-06007 | ||||
| 90119-06067 | ||||
| 91651-40616 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||

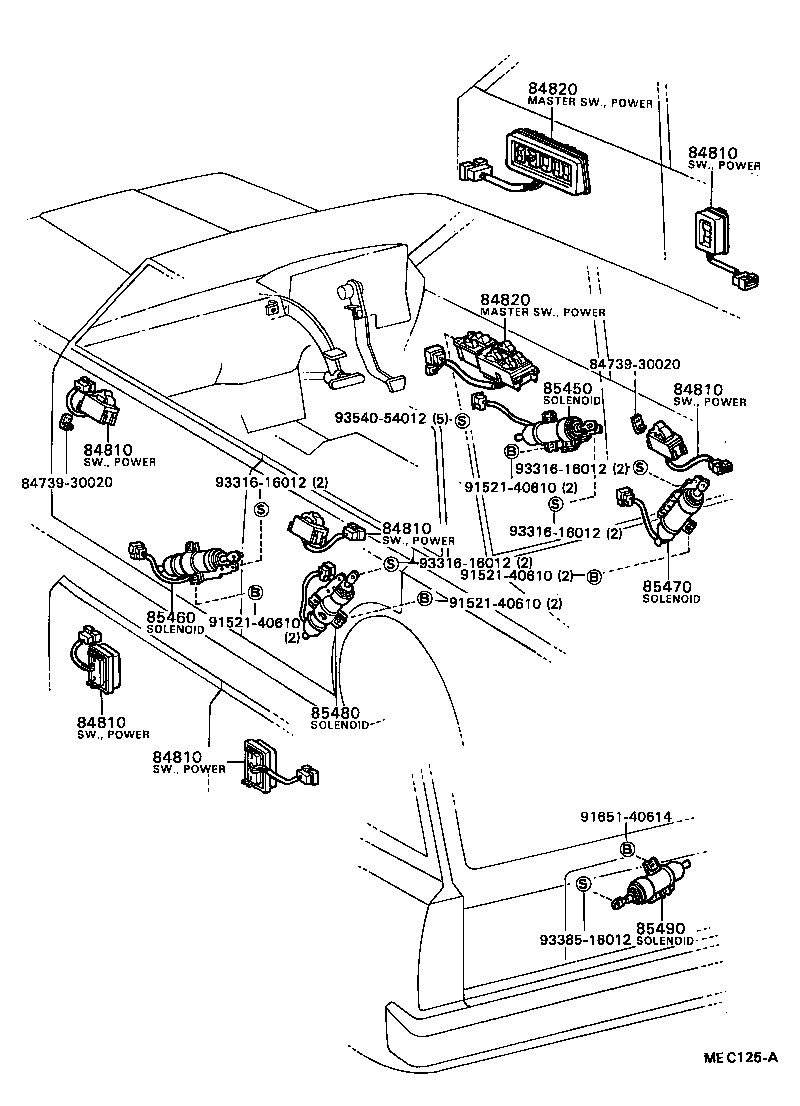

(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2208106 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
3 | ||
| 84810-2208104 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
3 | ||
| 84810-2208101 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2208106 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
3 | ||
| 84810-2208104 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
3 | ||
| 84810-2208101 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2208106 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
3 | ||
| 84810-2208104 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
3 | ||
| 84810-2208101 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2208106 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
3 | ||
| 84810-2208104 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
3 | ||
| 84810-2208101 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2208106 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
3 | ||
| 84810-2208104 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
3 | ||
| 84810-2208101 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2208106 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
3 | ||
| 84810-2208104 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
3 | ||
| 84810-2208101 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-2214004 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
1 | ||
| 84820-2214006 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 84820-2214001 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-2214004 |
RX60..SDN,SDZ BLUE,BLUE,TRIM8# |
1 | ||
| 84820-2214006 |
RX60..SDN,SDZ DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 84820-2214001 |
RX60..SDN,SDZ BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 84739-30020 | ||||
| 91521-40610 | ||||
| 91651-40614 | ||||
| 93316-16012 | ||||
| 93385-16012 | ||||
| 93540-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
