RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

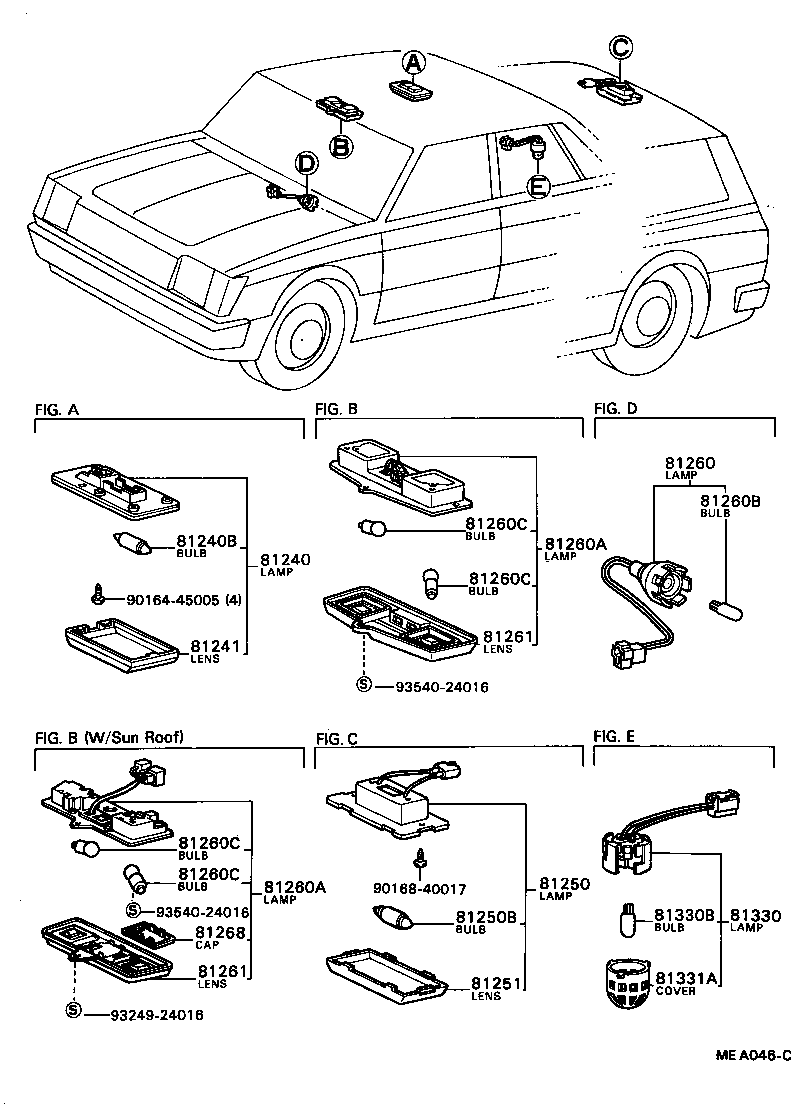

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81251 81260 81260A 81260A 81260B 81260C 81260C 81260C 81260C 81261 81261 81268 81330 81331A 9016445005 9016840017 9324924016 9354024016 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2205004

LX60,MX62,RX6#,TX62

BLUE,BLUE,TRIM8#

 1
81240-2205008

GX6#,LX60,MX6#,RX6#,TX62

IVORY,IVORY,TRIM0#,2#,3#,4#

 1
81240-2206008

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

IVORY,W/SUN ROOF,IVORY,TRIM0#,2#,4#

 1
81240-2206004

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

GX6#,LX60,MX6#,RX6#,TX62

12V 10W,12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

GX6#,LX60,MX6#,RX6#,TX62

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

LX60,MX62,RX6#..DLX,GL,SXL,XL

 1
81260A - LAMP ASSY, MAP
81260-2206008

RX60..SED..DLX..SDZ

IVORY,W/SUN ROOF,IVORY,TRIM3#,4#

 1
81260-2206008

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

IVORY,W/SUN ROOF,IVORY,TRIM0#,2#,4#

 1
81260-2206014

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81260-2206014

RX60..SED..DLX..SDZ

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81260A - LAMP ASSY, MAP
81260-2206008

RX60..SED..DLX..SDZ

IVORY,W/SUN ROOF,IVORY,TRIM3#,4#

 1
81260-2206008

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

IVORY,W/SUN ROOF,IVORY,TRIM0#,2#,4#

 1
81260-2206014

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81260-2206014

RX60..SED..DLX..SDZ

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

LX60,MX62,RX6#..DLX,GL,SXL,XL

12V 1.2W W/O SOCKET,12V 1.2KW

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

RX60..SED..DLX..SDZ

12V 8W,12V 8W,W/SUN ROOF

 2
90981-12005

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

12V 8W,12V 8W,W/SUN ROOF

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

RX60..SED..DLX..SDZ

12V 8W,12V 8W,W/SUN ROOF

 2
90981-12005

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

12V 8W,12V 8W,W/SUN ROOF

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

RX60..SED..DLX..SDZ

12V 8W,12V 8W,W/SUN ROOF

 2
90981-12005

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

12V 8W,12V 8W,W/SUN ROOF

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

RX60..SED..DLX..SDZ

12V 8W,12V 8W,W/SUN ROOF

 2
90981-12005

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

12V 8W,12V 8W,W/SUN ROOF

 2
81261 - LENS AND COVER, MAP LAMP
81261-2206008

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

IVORY,W/SUN ROOF,IVORY,TRIM0#,2#,4#

 1
81261-2206014

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81261-2206008

RX60..SED..DLX..SDZ

IVORY,W/SUN ROOF,IVORY,TRIM3#,4#

 1
81261-2206014

RX60..SED..DLX..SDZ

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81261 - LENS AND COVER, MAP LAMP
81261-2206008

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

IVORY,W/SUN ROOF,IVORY,TRIM0#,2#,4#

 1
81261-2206014

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81261-2206008

RX60..SED..DLX..SDZ

IVORY,W/SUN ROOF,IVORY,TRIM3#,4#

 1
81261-2206014

RX60..SED..DLX..SDZ

BLUE,W/SUN ROOF,BLUE,TRIM8#

 1
81268 - CAP MAP LAMP
81268-2206014

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

BLUE,BLUE,TRIM8#

 1
81268-2206008

LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN)

IVORY,IVORY,TRIM0#,2#,4#

 1
81268-2206014

RX60..SED..DLX..SDZ

BLUE,BLUE,TRIM8#

 1
81268-2206008

RX60..SED..DLX..SDZ

IVORY,IVORY,TRIM3#,4#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-22030

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME)

 1
81331A - COVER, LUGGAGE COMPARTMENT LAMP
81331-22030

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(DLX,GL)..(ARL,EUR,GEN,ME)

 1
Common parts
90164-45005
90168-40017
93249-24016
93540-24016
