RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

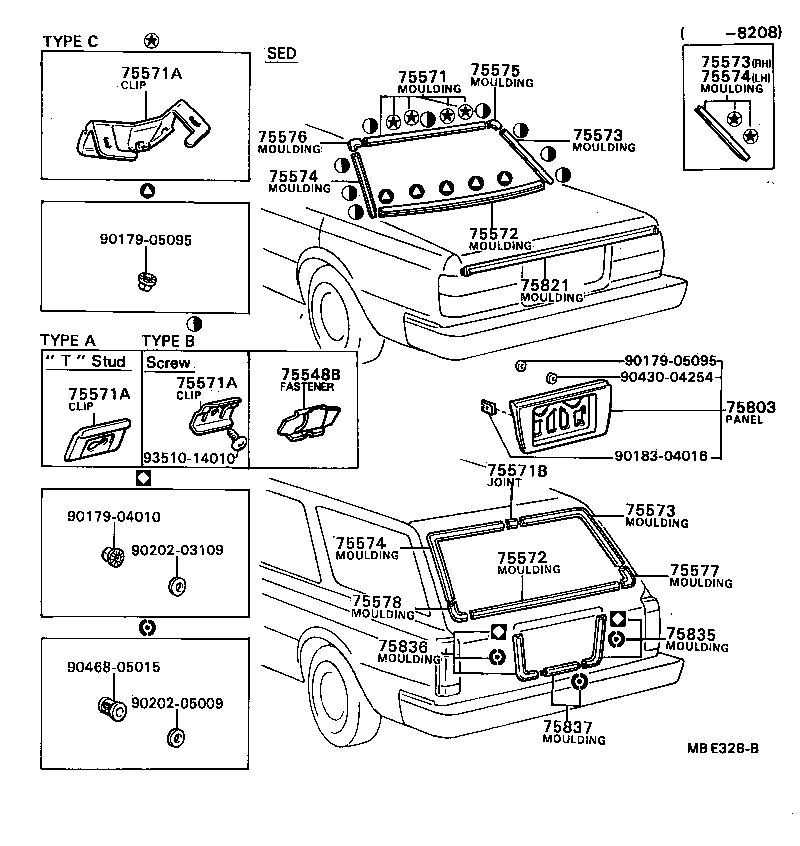

Click highlighted areas on diagram

diagram 75548B 75571 75571A 75571A 75571A 75571B 75572 75572 75573 75573 75573 75574 75574 75574 75575 75576 75577 75578 75803 75821 75835 75836 75837 9017904010 9017905095 9017905095 9018304016 9020203109 9020205009 9043004254 9046805015 9351014010
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-22070

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30040

LX60,MX62,RX60,TX62..SED

TYPE B

 5
75545-30021

LX60,MX62,RX60,TX62..SED

TYPE A

 5
75545-22020

LX60,MX62,RX60,TX62..SED

TYPE C

 8
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30040

LX60,MX62,RX60,TX62..SED

TYPE B

 5
75545-30021

LX60,MX62,RX60,TX62..SED

TYPE A

 5
75545-22020

LX60,MX62,RX60,TX62..SED

TYPE C

 8
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30040

LX60,MX62,RX60,TX62..SED

TYPE B

 5
75545-30021

LX60,MX62,RX60,TX62..SED

TYPE A

 5
75545-22020

LX60,MX62,RX60,TX62..SED

TYPE C

 8
75572 - MOULDING, BACK WINDOW, LOWER
75507-22020

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-22020

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22070

LX60,MX62,RX60,TX62..SED

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22070

LX60,MX62,RX60,TX62..SED

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22070

LX60,MX62,RX60,TX62..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22050

LX60,MX62,RX60,TX62..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22050

LX60,MX62,RX60,TX62..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22050

LX60,MX62,RX60,TX62..SED

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-22040

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-22040

MX63,RX60,TX62..SED;GX6#,LX60,MX62..SED..(ARL,EUR,GEN,ME)

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-22060

LX60,MX62,RX60,TX62..SED

 1
Common parts
90179-04010
90179-05095
90183-04016
90202-03109
90202-05009
90430-04254
90468-05015
93510-14010
