RX60L-XEMDCC (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )

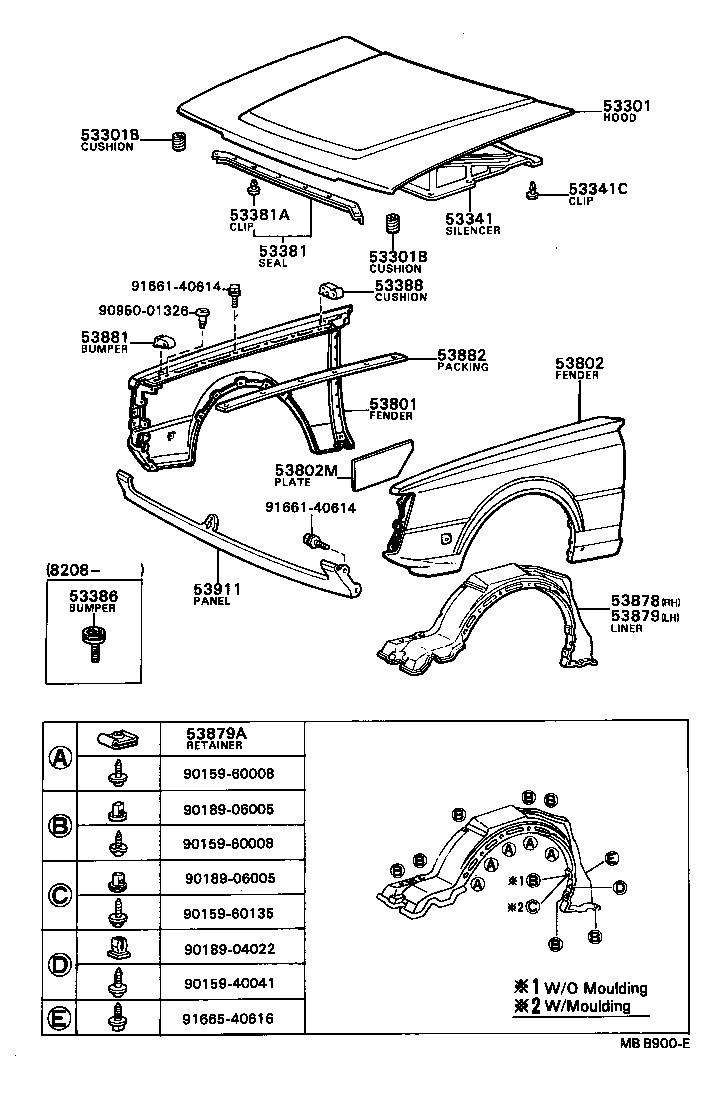

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-22120 |
LX60,RX6#,TX62..EUR,SA |
1 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
LX60,MX62,RX6#,TX62 |
2 | ||
| 53301B - CUSHION, HOOD BUMPER | ||||
| 90541-15111 |
LX60,MX62,RX6#,TX62 |
2 | ||
| 53341 - SILENCER, HOOD, NO.1 | ||||
| 53341-22030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09004 |
GX6#,LX60,MX6#,RX6#,TX62 |
19 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-22050 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GX6#,LX60,MX6#,RX6#,TX62 |
8 | ||
| 53388 - CUSHION, HOOD, REAR | ||||
| 53388-22020 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-22570 |
LX60,RX60..EUR |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-22550 |
LX60,RX60..EUR |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-22030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-22030 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22010 |
GX6#,LX60,MX6#,RX6#,TX62 |
10 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-22040 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-22040 |
GX6#,LX60,MX6#,RX6#,TX62 |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-22130 |
LX60,RX60..EUR |
1 | ||
| 53911-22120 |
LX60,MX62,RX60 |
1 | ||
| Common parts | ||||
| 90159-40041 | ||||
| 90159-60008 | ||||
| 90159-60135 | ||||
| 90189-04022 | ||||
| 90189-06005 | ||||
| 90950-01326 | ||||
| 91661-40614 | ||||
| 91665-40616 | ||||
