RX60L-XEMDCC (1980)
Toyota Cressida
(8009-8208)SED ; (8209- )TX62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

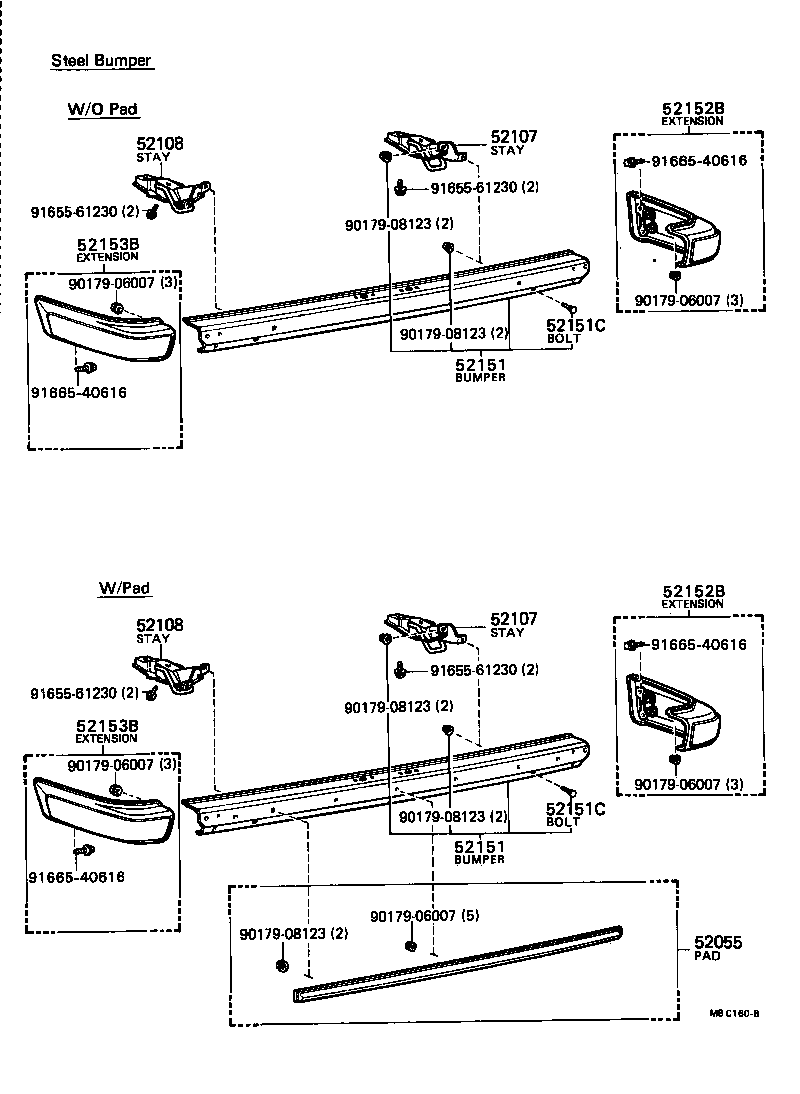

| 52055 - PAD SUB-ASSY, REAR BUMPER | ||||
| 52055-29065 |
LX60,RX6#..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-22010 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-22010 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-22010 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-22010 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29385 |
LX60,RX60..SED..(DLX,STD,XL)..(EUR,GEN,SA) W/PAD |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29385 |
LX60,RX60..SED..(DLX,STD,XL)..(EUR,GEN,SA) W/PAD |
1 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08017 |
RX6#..(DLX,XL)..(EUR,GEN,SA) |
4 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08017 |
RX6#..(DLX,XL)..(EUR,GEN,SA) |
4 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29065 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29065 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29185 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29185 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 90179-08123 | ||||
| 91655-61230 | ||||
| 91665-40616 | ||||
(8009-8208)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

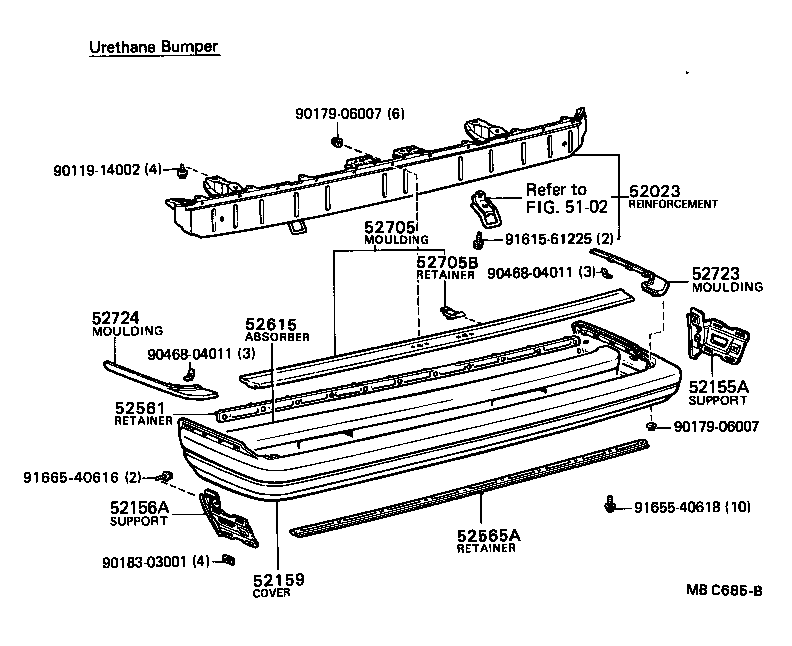

| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22051 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22051 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52155-22050 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22070 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 52156-22071 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-22021 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 52159-22022 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-22040 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22010 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-22010 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52705-22010 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52705B - RETAINER, REAR BUMPER MOULDING | ||||
| 52717-22010 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
8 | ||
| 52723 - MOULDING, REAR BUMPER EXTENSION, RH | ||||
| 52723-22011 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52724 - MOULDING, REAR BUMPER EXTENSION, LH | ||||
| 52724-22010 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| Common parts | ||||
| 90119-14002 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90468-04011 | ||||
| 91615-61225 | ||||
| 91655-40618 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
(8208- )SED..ARL,EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

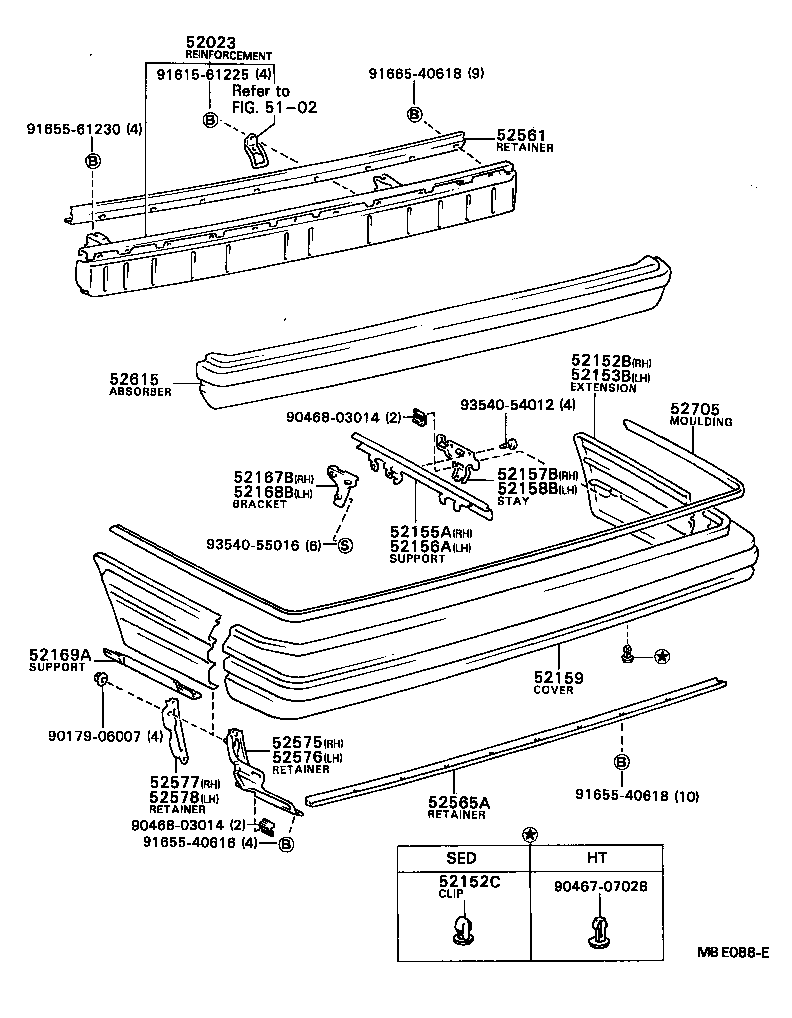

| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22051 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29065 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29185 |
LX60,RX60,TX62..SED..(DLX,STD,XL)..(EUR,GEN,SA) |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22051 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52155-22050 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22070 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 52156-22071 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-22021 |
LX60,MX62,RX60..DLX,GL |
1 | ||
| 52159-22022 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-22040 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22010 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-22010 |
LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52705-22010 |
LX60,MX62,RX60..SED..(DLX,GL)..(ARL,EUR,GEN,ME,SAA) |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 90467-07028 | ||||
| 90468-03014 | ||||
| 91615-61225 | ||||
| 91655-40616 | ||||
| 91655-40618 | ||||
| 91655-61230 | ||||
| 91665-40618 | ||||
| 93540-54012 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 5102 | ||||
