RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208) ; (8209- )TX62

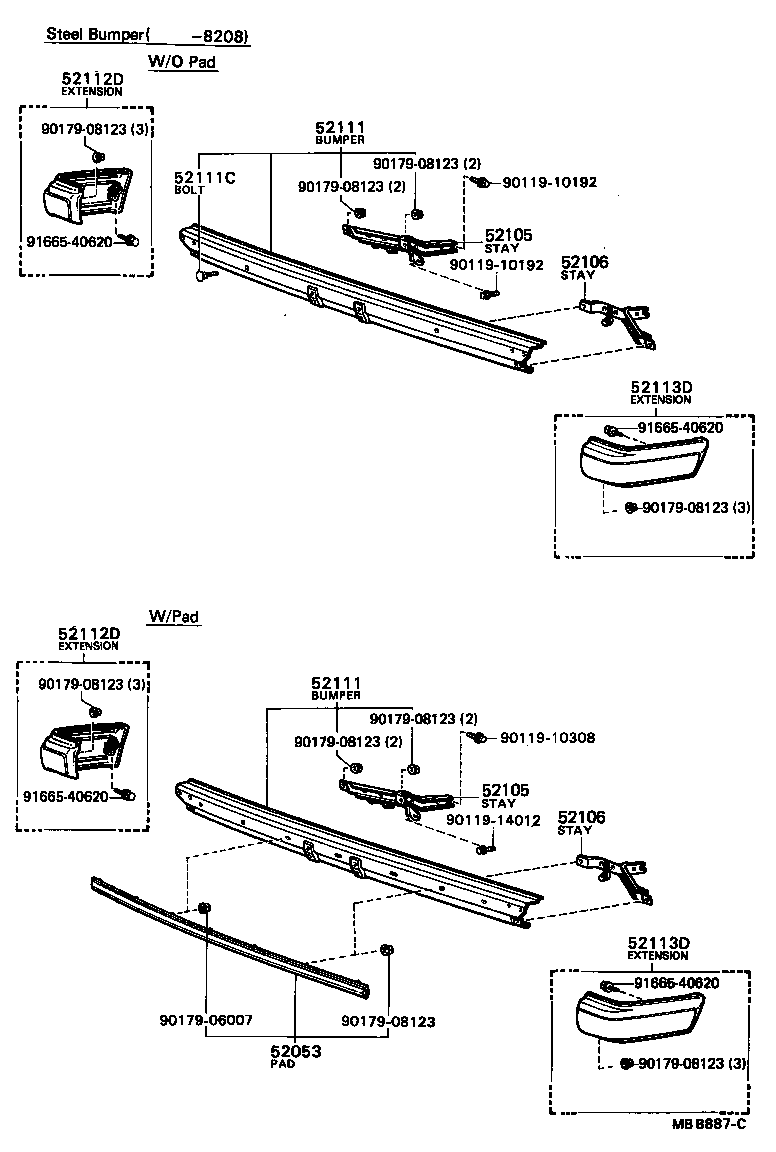

Click highlighted areas on diagram

diagram 52053 52105 52105 52106 52106 52111 52111 52111C 52112D 52112D 52113D 52113D 9011910192 9011910192 9011910308 9011914012 9017906007 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9166540620 9166540620 9166540620 9166540620
Part # Description Qty Price
52053 - PAD SUB-ASSY, FRONT BUMPER
52051-29095

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-22070

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-22070

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-22060

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-22060

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52111 - BUMPER ASSY, FRONT
52111-29415

RX6#..(DLX,XL)..(EUR,GEN,SA)

PAD

 1
52111 - BUMPER ASSY, FRONT
52111-29415

RX6#..(DLX,XL)..(EUR,GEN,SA)

PAD

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-29055

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-29055

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-29155

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-29155

RX6#..(DLX,XL)..(EUR,GEN,SA)

 1
Common parts
90119-10192
90119-10308
90119-14012
90179-06007
90179-08123
91665-40620

(8009-8208)

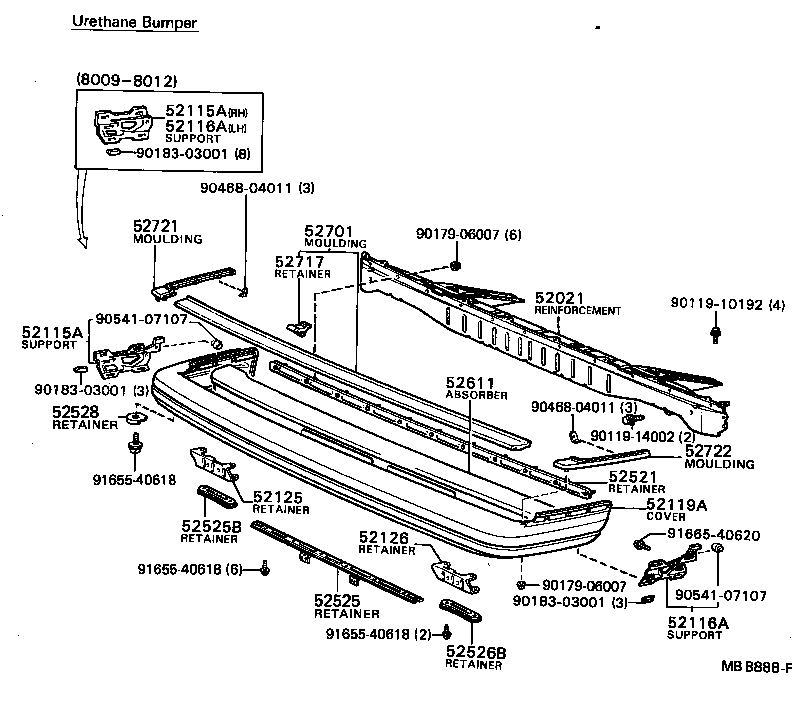

Click highlighted areas on diagram

diagram 52021 52115A 52115A 52116A 52116A 52119A 52125 52126 52521 52525 52525B 52526B 52528 52611 52701 52717 52721 52722 9011910192 9011914002 9017906007 9017906007 9018303001 9018303001 9018303001 9046804011 9046804011 9054107107 9054107107 9165540618 9165540618 9165540618 9166540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-22050

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52021-22090

GX6#,LX60,MX62,RX60

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-22061

LX60,MX62,RX60..DLX,GL

 1
52115-22060

LX60,MX62,RX60..DLX,GL

 1
52061-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-22061

LX60,MX62,RX60..DLX,GL

 1
52115-22060

LX60,MX62,RX60..DLX,GL

 1
52061-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52062-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52116-22030

LX60,MX62,RX60..DLX,GL

 1
52116-22031

LX60,MX62,RX60..DLX,GL

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52062-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52116-22030

LX60,MX62,RX60..DLX,GL

 1
52116-22031

LX60,MX62,RX60..DLX,GL

 1
52119A - COVER, FRONT BUMPER
52119-22021

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52119-22020

LX60,MX62,RX60..DLX,GL

 1
52119-22070

GX6#,LX60,MX62,RX60

 1
52125 - RETAINER, FRONT BUMPER, RH
52125-22020

GX6#,LX60,MX62,RX60..DLX,GL

 1
52126 - RETAINER, FRONT BUMPER, LH
52125-22020

GX6#,LX60,MX62,RX60..DLX,GL

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-22040

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-20010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52701-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52717 - RETAINER, FRONT BUMPER MOULDING
52717-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 8
52721 - MOULDING, FRONT BUMPER EXTENSION, RH
52721-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52722 - MOULDING, FRONT BUMPER EXTENSION, LH
52722-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
Common parts
90119-10192
90119-14002
90179-06007
90183-03001
90468-04011
90541-07107
91655-40618
91665-40620

(8208- )

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52125 52126 52521 52525 52525B 52526B 52528 52611 52679 52701 9010906081 9010906081 9010906081 9011910308 9011910308 9011914012 9017906007 9046803014 9054107046 9054108003 9054109007 9165540618 9166540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-22050

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52021-22090

GX6#,LX60,MX62,RX60

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-22061

LX60,MX62,RX60..DLX,GL

 1
52115-22060

LX60,MX62,RX60..DLX,GL

 1
52061-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52062-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52116-22030

LX60,MX62,RX60..DLX,GL

 1
52116-22031

LX60,MX62,RX60..DLX,GL

 1
52119A - COVER, FRONT BUMPER
52119-22021

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52119-22020

LX60,MX62,RX60..DLX,GL

 1
52119-22070

GX6#,LX60,MX62,RX60

 1
52125 - RETAINER, FRONT BUMPER, RH
52125-22020

GX6#,LX60,MX62,RX60..DLX,GL

 1
52126 - RETAINER, FRONT BUMPER, LH
52125-22020

GX6#,LX60,MX62,RX60..DLX,GL

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-22040

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52528 - RETAINER, FRONT BUMPER, LOWER CORNER
52528-20010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
52701 - MOULDING SUB-ASSY, FRONT BUMPER
52701-22010

LX60,MX62,RX60..(DLX,GL)..(ARL,EUR,GEN,ME,SAA)

 1
Common parts
90109-06081
90119-10308
90119-14012
90179-06007
90468-03014
90541-07046
90541-08003
90541-09007
91655-40618
91665-40620
