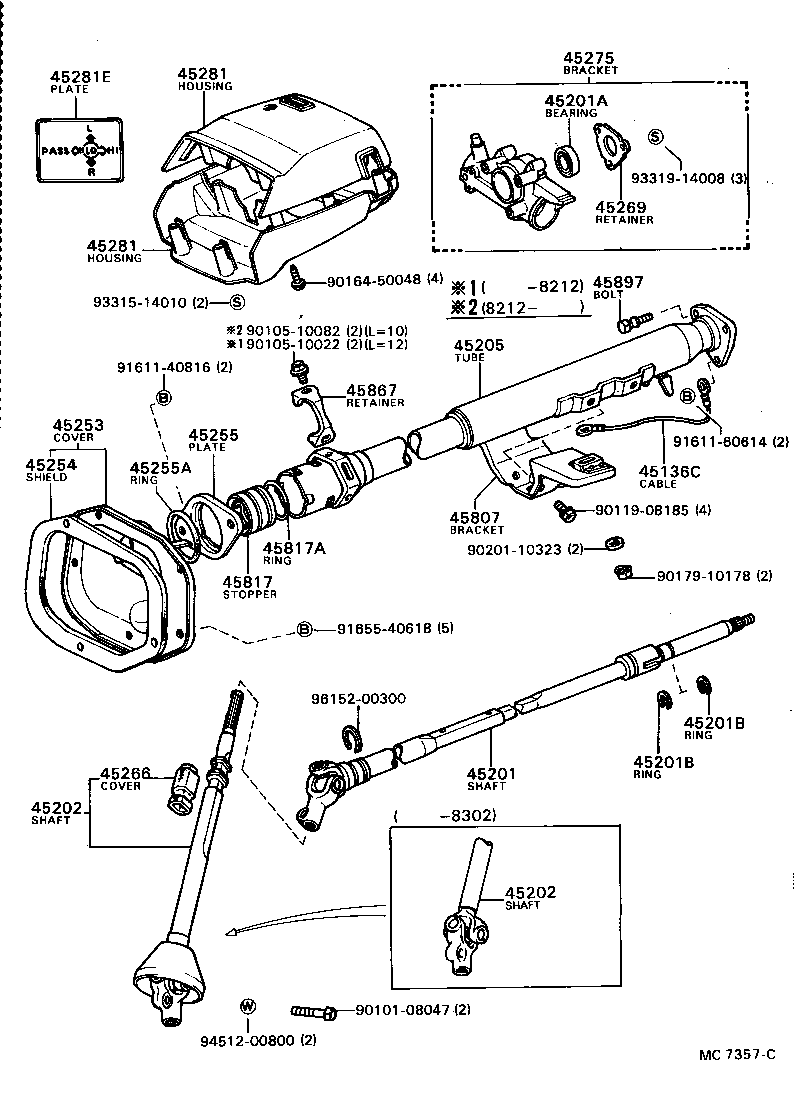

RX60L-XEMDCC (1980)
Toyota Cressida
(8009- )RX60..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07188 |
RX60..EUR |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22100 |
RX60..LHD..EUR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LX60,RX6#,TX62 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX60,MX6#,RX6#,TX62 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
GX6#,LX60,RX6#,TX62 T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GX6#,LX60,MX6#,RX6#,TX62 T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
GX6#,LX60,RX6#,TX62 T=1.35-1.45,T=1.4 |
2 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45260-22020 |
RX60..LHD..EUR |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45260-22020 |
RX60..LHD..EUR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-22140 |
RX60..LHD..EUR |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-22060 |
RX60..LHD..EUR |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-22031 |
GX6#,LX60,MX6#,RX6#,TX62 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
RX60..EUR |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
RX60..EUR |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12010 |
RX60..EUR |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-20010 |
LX60,RX6#,TX62 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-30230 |
LX60,RX60..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2231004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2231001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2231006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45287-2222006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45287-2222001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2222004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2231004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2231001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2231006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) UPR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45287-2222006 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,DARK BROWN,BROWN,TRIM0#,4# |
1 | ||
| 45287-2222001 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-2222004 |
LX60,RX60..LHD..(3FC,4F,4FC,5F) LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-22130 |
LX60,RX60..LHD |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
RX60..EUR W/TILT STEERING |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96710-02053 |
RX60..EUR W/TILT STEERING |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
RX60..EUR W/TILT STEERING |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12030 |
LX60,RX6#,TX62..3FC,4F,5F |
1 | ||
| 45897-14010 |
GX6#,LX60,RX60..3FC,4F,5F W/TILT STEERING |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90105-10022 | ||||
| 90105-10082 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91655-40618 | ||||
| 93315-14810 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||
(8009- )RX60..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22030 |
RX60..EUR |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-22020 |
RX60..LHD..EUR |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
RX60..EUR |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RX60..EUR |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29015 |
RX60..EUR |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-22020 |
RX60..LHD..EUR |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-22011 |
RX60..EUR |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22011 |
RX60..EUR |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-22010 |
RX60..EUR |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-22010 |
RX60..EUR |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-22020 |
RX60..LHD..EUR |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-22010 |
RX60..EUR |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
RX60..EUR |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
RX60..EUR |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
RX60..EUR |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
RX60..EUR |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
RX60..EUR |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22010 |
RX60..EUR |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
RX60..EUR ID=41.5 |
1 | ||
| 90461-10524 |
RX60..EUR ID=61.5 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
RX60..EUR ID=41.5 |
1 | ||
| 90461-10524 |
RX60..EUR ID=61.5 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
RX60..EUR |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
RX60..EUR |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-22010 |
RX60..EUR |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RX60..EUR OD=43 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14003 |
RX60..EUR OD=43 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-22020 |
RX60..LHD..EUR |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15006 |
RX60..EUR |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-15005 |
RX60..EUR |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-22010 |
RX60..EUR |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-42001 |
RX60..EUR |
1 | ||
| Common parts | ||||
| 90119-12031 | ||||
| 90119-12032 | ||||
| 93269-63020 | ||||
