RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )4F,5F

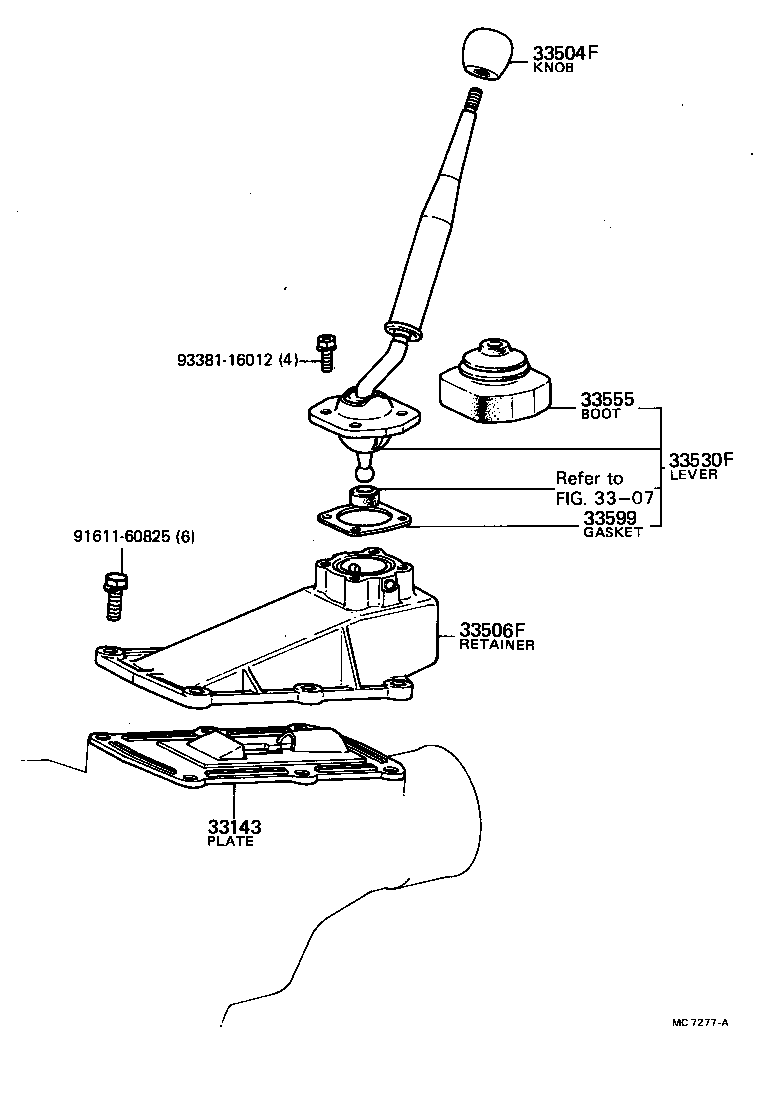

Click highlighted areas on diagram

diagram 3307 33143 33504F 33506F 33530F 33555 33599 9161160825 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-22020

GX6#,LX60,RX6#,TX62..4F,5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2005201

LX60,RX6#..5F

URETHANE,BLACK,BLACK,TRIM2#

 1
33504-2005204

LX60,RX6#..5F

URETHANE,BLUE,BLUE,TRIM8#

 1
33504-2005216

LX60,RX6#..5F

URETHANE,DARK BROWN,BROWN,TRIM0#,4#

 1
33504-2401001

LX60,RX6#..5F

BLACK,BLACK,TRIM2#

 1
33504-2401014

LX60,RX6#..5F

BLUE,BLUE,TRIM8#

 1
33504-2401004

LX60,RX6#..5F

BLUE,BLUE,TRIM8#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-22070

GX6#,LX60,RX6#..4F,5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-22190

GX6#,LX60,RX60..LHD..(4F,5F)

 1
33555 - BOOT, SHIFT LEVER
33555-22050

GX6#,LX60,RX6#,TX62..4F,5F

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-22020

GX6#,LX60,RX6#,TX62..4F,5F

 1
Common parts
91611-60825
93381-16012
Linked diagrams
3307
