RX60L-XEMDCC (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )MTM

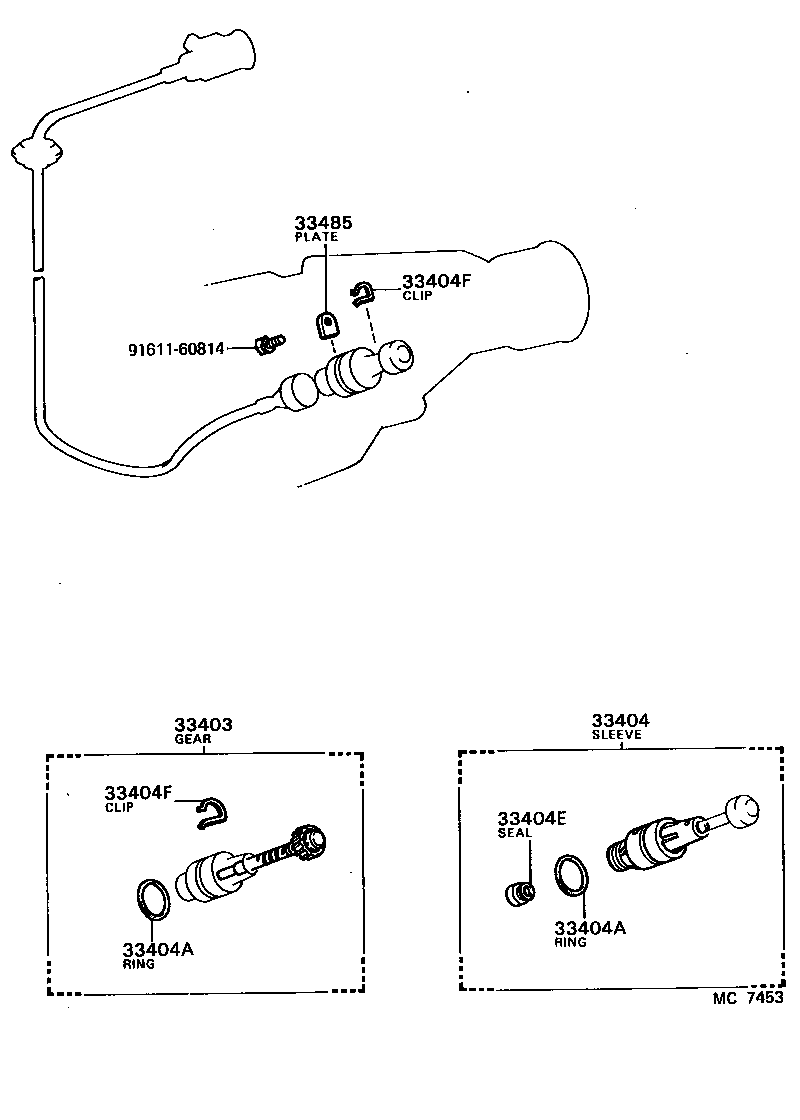

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-29145 |
GX61,LX60,RX60..5F..EUR N=31,MARK 31:10,N=31 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-22010 |
GX6#,LX60,RX6#,TX62..4F,5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96710-02030 |
LX60,RX6#,TX62..4F,5F |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96710-02030 |
LX60,RX6#,TX62..4F,5F |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
GX6#,LX60,RX6#,TX62..MTM |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
