RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )L..LHD

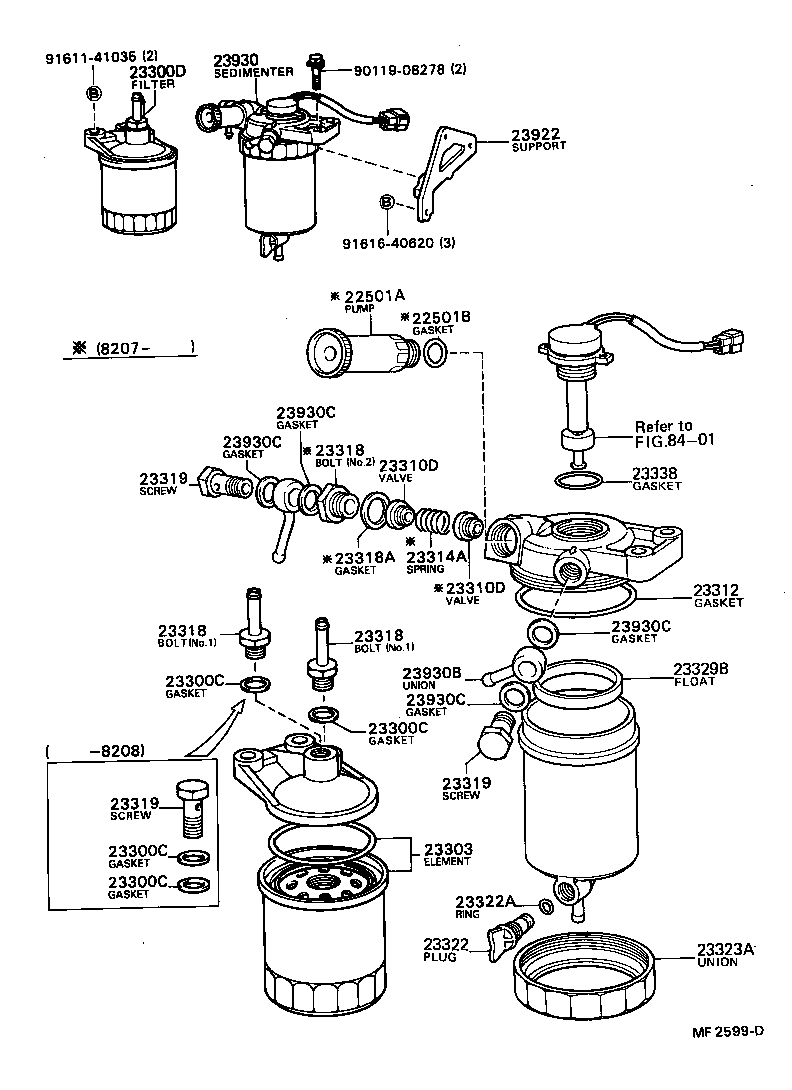

Click highlighted areas on diagram

diagram 22501A 22501B 23300C 23300C 23300C 23300C 23300D 23303 23310D 23310D 23312 23314A 23318 23318 23318 23318A 23319 23319 23319 23322 23322A 23323A 23329B 23338 23922 23930 23930B 23930C 23930C 23930C 23930C 8401 9011908278 9161141035 9161640620
Part # Description Qty Price
Common parts
90119-08278
91611-41035
91616-40620
Linked diagrams
8401

(8009- )21R#,18R

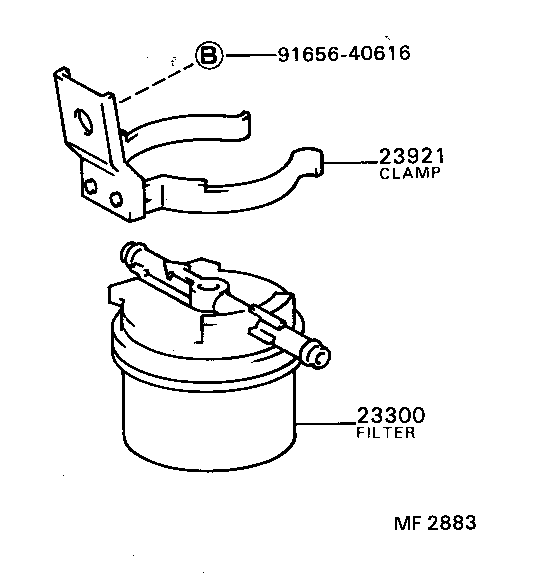

Click highlighted areas on diagram

diagram 23300 23921 9165640616
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-25020

21R#,18R..RX6#

 1
23300-25020

21R#,18R..RX6#

 1
23921 - SUPPORT, FUEL FILTER
90461-10007

21R#,18R..RX6#

 1
90461-10007

21R#,18R..RX6#

 1
Common parts
91656-40616
