RX60L-XEMDCC (1980)
Toyota Cressida
(8009- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A,12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 55A,60A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34050 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
21R#,18R,5ME,3T..MX62,RX6#,TX62 12V 50A,55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27410-43040 |
21R#,1GE,3T..GX6#,RX60,TX62 12V 55A,60A,65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-27050 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 94512-01000 | ||||
(8009- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A,12V 55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 55A,60A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34050 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
21R#,18R,5ME,3T..MX62,RX6#,TX62 12V 50A,55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27410-43040 |
21R#,1GE,3T..GX6#,RX60,TX62 12V 55A,60A,65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-27050 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 27447-57100 | ||||
| 90099-00937 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-34013 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
| 93315-15010 | ||||
| 93319-15008 | ||||
| 94512-01000 | ||||

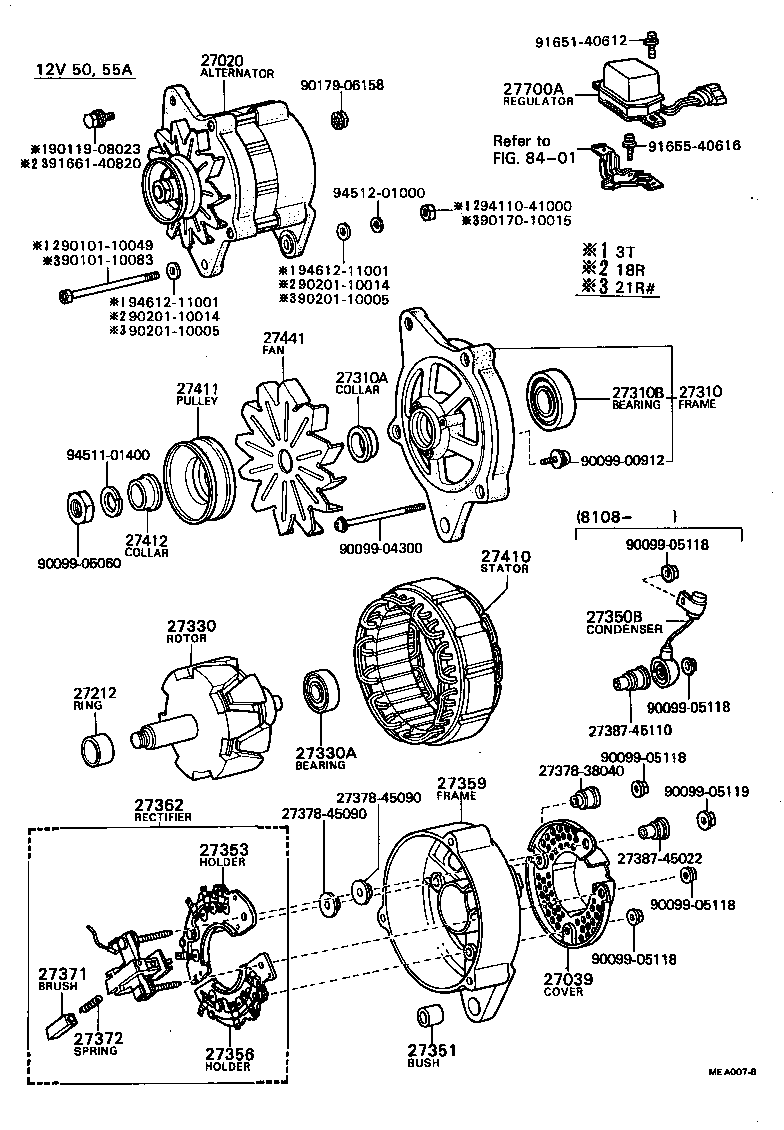

(8009- )21R#,18R,3T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A,12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-45110 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-45070 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 55A,60A,65A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34050 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-31040 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10125 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-45070 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-38051 |
21R#,18R,5ME,3T..MX62,RX6#,TX62 12V 50A,55A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-24100 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-34021 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
21R#,18R,1GE,5ME,3T..GX6#,MX62,RX6#,TX62 12V 50A,55A,60A,65A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-45120 |
21R#,18R,3T..RX6#,TX62 12V 55A |
1 | ||
| 27410-43040 |
21R#,1GE,3T..GX6#,RX60,TX62 12V 55A,60A,65A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31042 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY) | ||||
| 27412-44030 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-27050 |
21R#,18R,3T..RX6#,TX62 12V 50A,55A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90101-10083 | ||||
| 90119-08023 | ||||
| 90170-10015 | ||||
| 90179-06158 | ||||
| 90201-10005 | ||||
| 90201-10014 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
