RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)21R# ; (8208-8407)21R..GEN,ME,SA

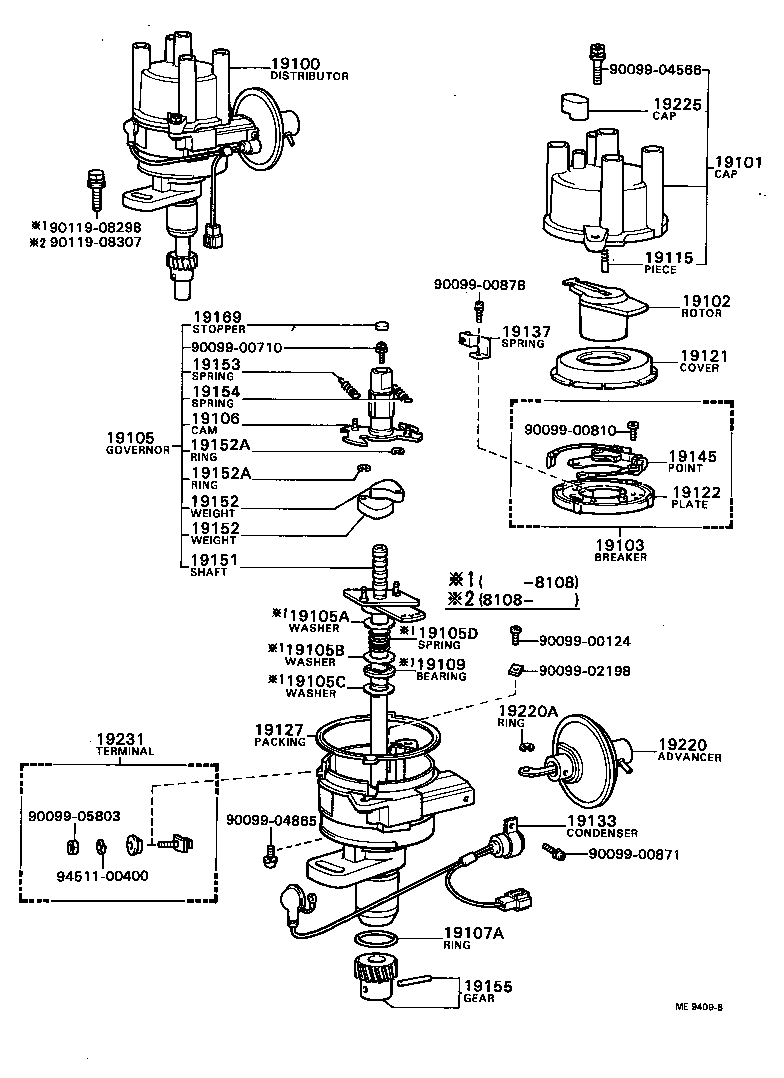

Click highlighted areas on diagram

diagram 19100 19101 19102 19103 19105 19105A 19105B 19105C 19105D 19106 19107A 19109 19115 19121 19122 19127 19133 19137 19145 19151 19152 19152 19152A 19152A 19153 19155 19169 19220 19220A 19225 19231 9009900124 9009900710 9009900810 9009900871 9009900878 9009902198 9009904566 9009904865 9009905803 9011908298 9011908307 9451100400
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-37030

21R#..RX60..EUR

 1
19100-37090

21R#..RX60..EUR

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-38150

21R#..RX60

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-26150

21R#..RX60..EUR

 1
19103 - BREAKER SUB-ASSY, DISTRIBUTOR
19103-37030

21R#..RX60

 1
19105 - GOVERNOR SUB-ASSY
19105-37030

21R#..RX60..EUR

 1
19105-37090

21R#..RX60..EUR

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01417

21R#..RX60

 1
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01426

21R#..RX60

 1
19105C - WASHER, NO.3(FOR GOVERNOR SHAFT THRUST)
90099-01427

21R#..RX60

 1
19105D - SPRING, NO.1(FOR GOVERNOR SHAFT THRUST)
90099-17113

21R#..RX60

 1
19106 - CAM SUB-ASSY, DISTRIBUTOR
19106-26010

21R#..RX60..EUR

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

21R#,18R..RX6#

 1
19109 - BEARING, THRUST
19109-38010

21R#..RX60

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

21R#,18R..RX6#

 1
19121 - COVER, DUST PROOF
19121-38040

21R#..RX60

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-37030

21R#..RX60

 1
19127 - PACKING, DUST PROOF
19127-38150

21R#..RX60

 1
19133 - CONDENSER, DISTRIBUTOR
90099-52068

21R#,18R..RX6#

 1
19145 - POINT, DISTRIBUTOR
19145-37030

21R#..RX60

 1
19151 - SHAFT, GOVERNOR
19151-38011

21R#..RX60

 1
19152 - WEIGHT, GOVERNOR
19152-44170

21R#..RX60

 2
19152 - WEIGHT, GOVERNOR
19152-44170

21R#..RX60

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

21R#,18R..RX6#

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

21R#,18R..RX6#

 2
19153 - SPRING, GOVERNOR, A
19153-37030

21R#..RX60..EUR

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-38210

21R#..RX60

 1
19169 - STOPPER, CAM GREASE
19169-32010

21R#,18R..RX6#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-37030

21R#..RX60..EUR

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

21R#..RX60

 1
19225 - CAP, RUBBER
19225-38011

21R#..RX60

 1
19231 - TERMINAL, DISTRIBUTOR
19231-24140

21R#,18R..RX6#

 1
Common parts
90099-00124
90099-00710
90099-00810
90099-00871
90099-00878
90099-02198
90099-04566
90099-04865
90099-05803
90119-08298
90119-08307
94511-00400

(8208- )21R#..EUR

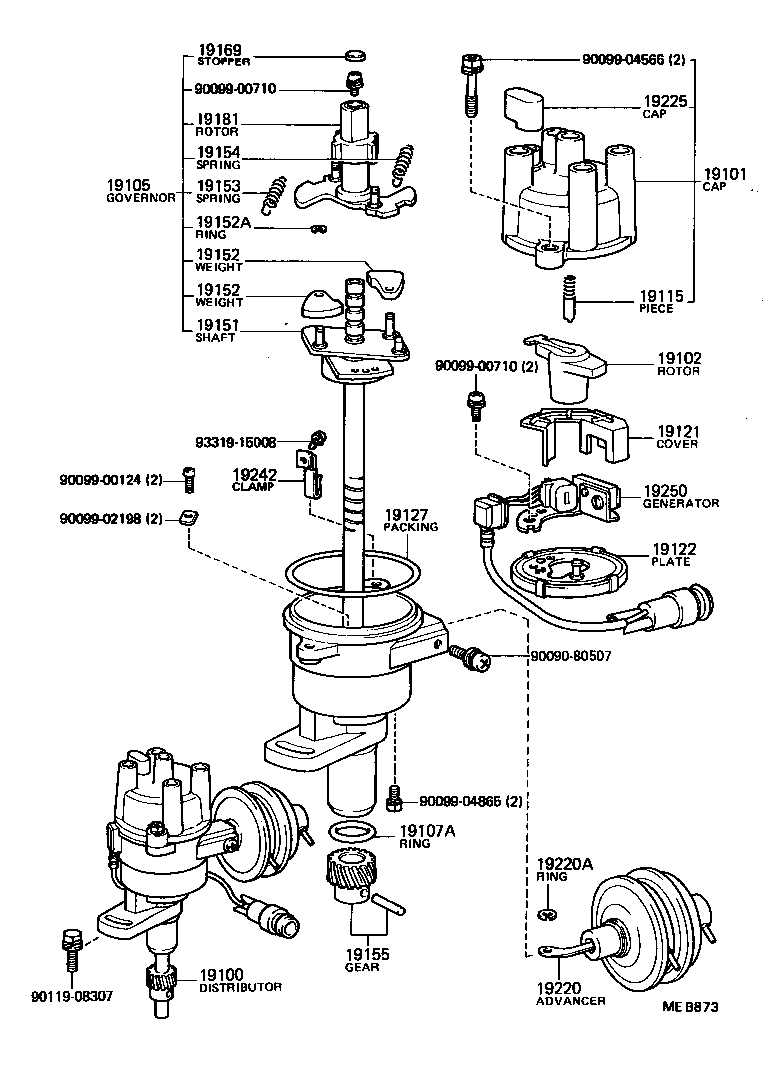

Click highlighted areas on diagram

diagram 19100 19101 19102 19105 19107A 19115 19121 19122 19127 19151 19152 19152 19152A 19153 19154 19155 19169 19181 19220 19220A 19225 19242 19250 9009080507 9009900124 9009900710 9009900710 9009902198 9009904566 9009904865 9011908307 9331915008
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-37030

21R#..RX60..EUR

 1
19100-37090

21R#..RX60..EUR

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-38150

21R#..RX60

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-26150

21R#..RX60..EUR

 1
19105 - GOVERNOR SUB-ASSY
19105-37030

21R#..RX60..EUR

 1
19105-37090

21R#..RX60..EUR

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

21R#,18R..RX6#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

21R#,18R..RX6#

 1
19121 - COVER, DUST PROOF
19121-38040

21R#..RX60

 1
19122 - PLATE, STATIONARY, DISTRIBUTOR
19122-37030

21R#..RX60

 1
19127 - PACKING, DUST PROOF
19127-38150

21R#..RX60

 1
19151 - SHAFT, GOVERNOR
19151-38011

21R#..RX60

 1
19152 - WEIGHT, GOVERNOR
19152-44170

21R#..RX60

 2
19152 - WEIGHT, GOVERNOR
19152-44170

21R#..RX60

 2
19152A - RING, SNAP(FOR GOVERNOR WEIGHT)
90099-07109

21R#,18R..RX6#

 2
19153 - SPRING, GOVERNOR, A
19153-37030

21R#..RX60..EUR

 1
19154 - SPRING, GOVERNOR, B
19154-37030

21R#..RX60..EUR

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-38210

21R#..RX60

 1
19169 - STOPPER, CAM GREASE
19169-32010

21R#,18R..RX6#

 1
19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220-37030

21R#..RX60..EUR

 1
19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
90099-07109

21R#..RX60

 1
19225 - CAP, RUBBER
19225-38011

21R#..RX60

 1
Common parts
90090-80507
90099-00124
90099-00710
90099-02198
90099-04566
90099-04865
90119-08307
93319-15008
