RX60L-XEMDCC (1980)
Toyota Cressida
Production
Sep 1980
-
Aug 1983
Engine
21RC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

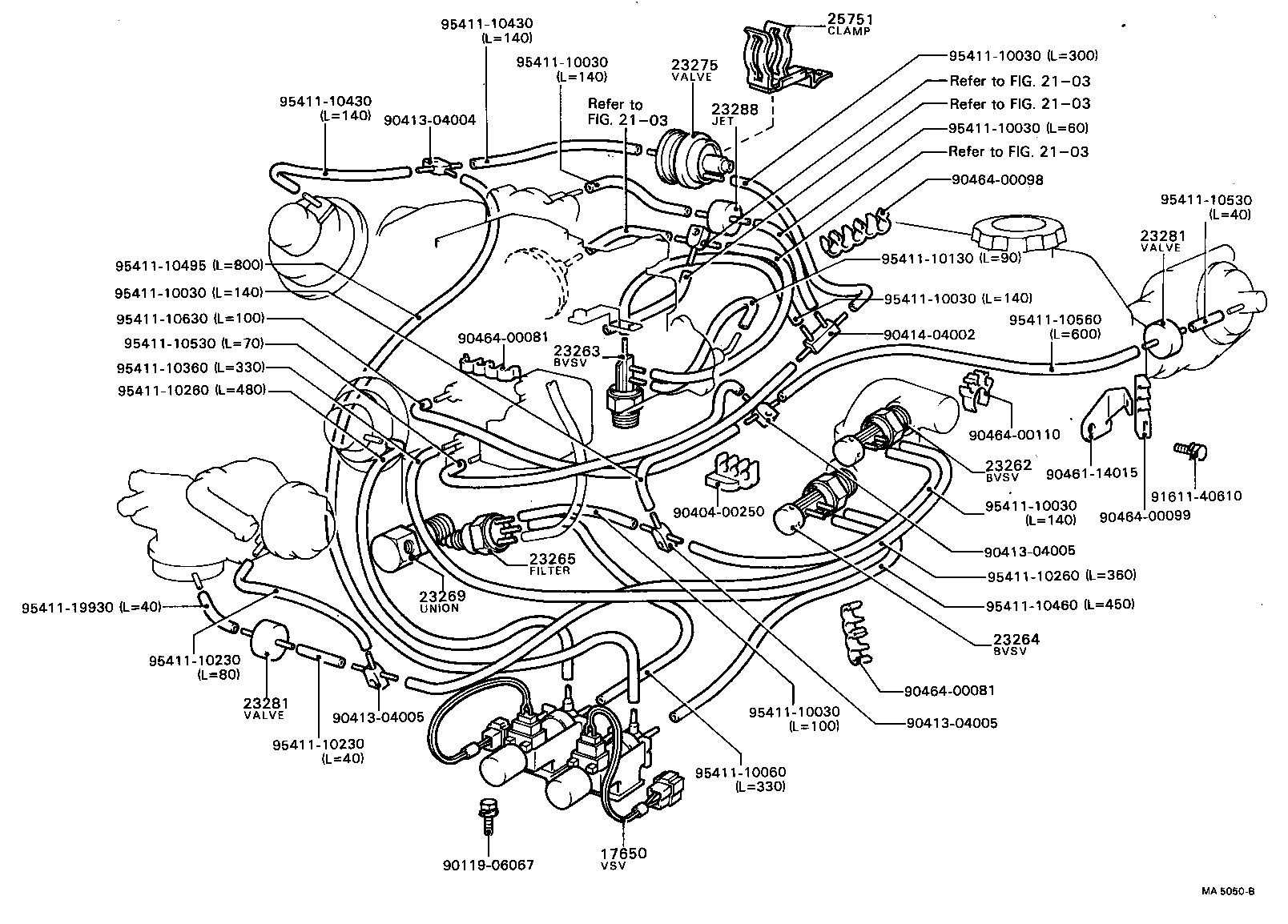

(8009-8108)21RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-22090 |
21RC..RX60 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-37010 |
21RC..RX60 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25810-13010 |
21R#..RX60..EUR |
1 | ||
| 23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3 | ||||
| 25820-13010 |
21RC..RX60 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#..RX60 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54016 |
21R#..RX60 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03053 |
21RC..RX60 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
21RC..RX60 |
2 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
21RC..RX60 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
21R#..RX60 |
1 | ||
| 25751 - CLAMP, VACUUM CONTROL VALVE, NO.1 | ||||
| 25751-37010 |
21RC..RX60 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90404-00250 | ||||
| 90413-04004 | ||||
| 90413-04005 | ||||
| 90414-04002 | ||||
| 90461-14015 | ||||
| 90464-00081 | ||||
| 90464-00098 | ||||
| 90464-00099 | ||||
| 90464-00110 | ||||
| 91611-40610 | ||||
| 95411-10030 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10260 | ||||
| 95411-10360 | ||||
| 95411-10430 | ||||
| 95411-10460 | ||||
| 95411-10495 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10630 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||

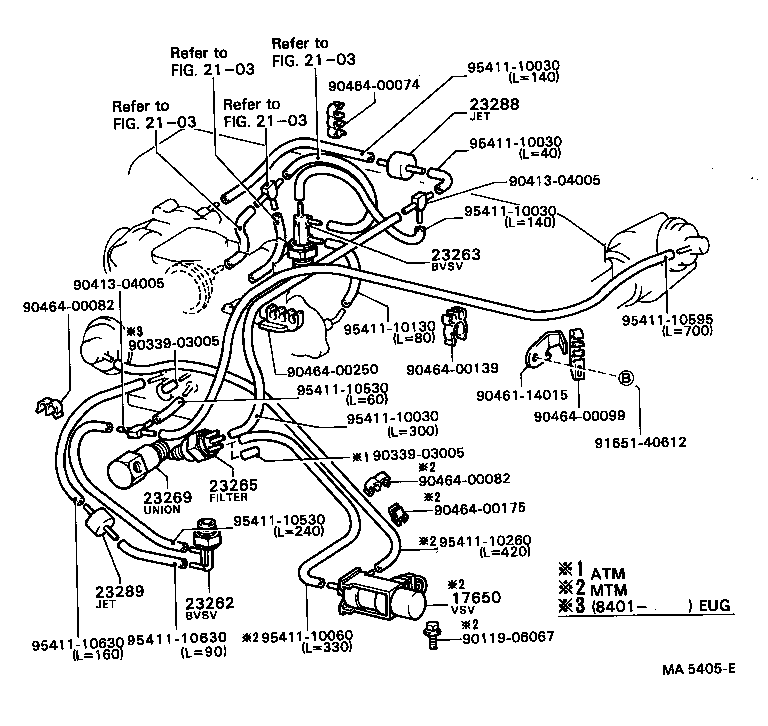

(8108-8202)21R ; (8108- )21R..EUG
Click highlighted areas on diagram
(8108-8202)HONG KONG SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-22090 |
21RC..RX60 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-37010 |
21RC..RX60 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25810-13010 |
21R#..RX60..EUR |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#..RX60 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54016 |
21R#..RX60 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
21R#..RX60 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90461-14015 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00099 | ||||
| 90464-00139 | ||||
| 90464-00175 | ||||
| 90464-00250 | ||||
| 91651-40612 | ||||
| 95411-00600 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10260 | ||||
| 95411-10530 | ||||
| 95411-10595 | ||||
| 95411-10630 | ||||
| Linked diagrams | ||||
| 2103 | ||||

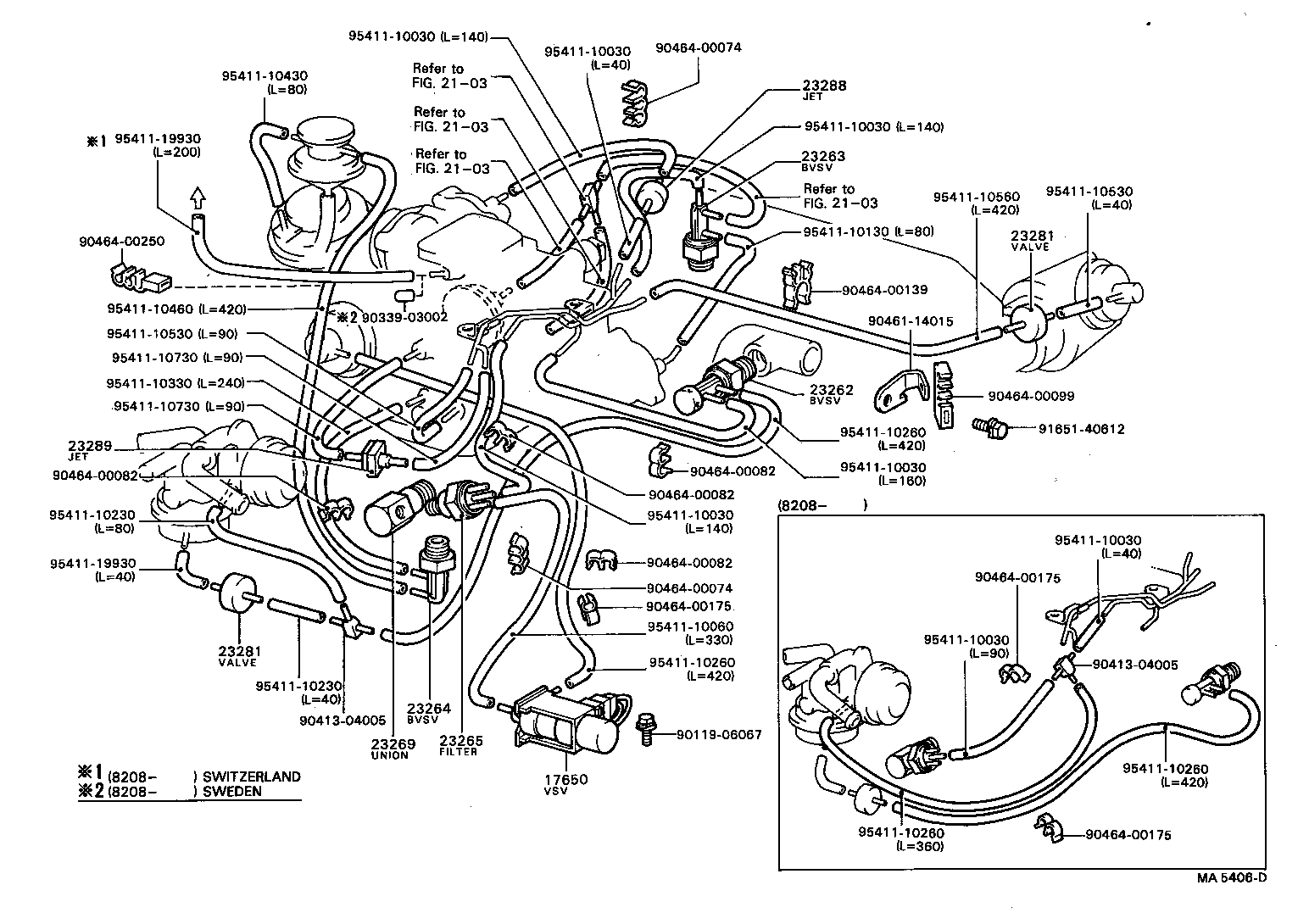

(8108- )21RC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-22090 |
21RC..RX60 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25820-37010 |
21RC..RX60 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25810-13010 |
21R#..RX60..EUR |
1 | ||
| 23264 - VALVE, BIMETAL VACUUM SWITCHING, NO.3 | ||||
| 25820-13010 |
21RC..RX60 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
21R#..RX60 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-54016 |
21R#..RX60 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
21RC..RX60 |
2 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
21RC..RX60 |
2 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04005 |
21R#..RX60 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90461-14015 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00099 | ||||
| 90464-00139 | ||||
| 90464-00175 | ||||
| 90464-00250 | ||||
| 91651-40612 | ||||
| 95411-10030 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10230 | ||||
| 95411-10260 | ||||
| 95411-10330 | ||||
| 95411-10430 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10730 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8009- )21R#,18R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01053 | ||||
| 90925-01054 | ||||
| 90925-01062 | ||||
| 90925-01064 | ||||
(8009- )L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01053 | ||||
| 90925-01054 | ||||
| 90925-01062 | ||||
| 90925-01064 | ||||
