RX60L-XEMDCC (1980)

Toyota Cressida

Production Sep 1980 - Aug 1983
Engine 21RC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )21RC

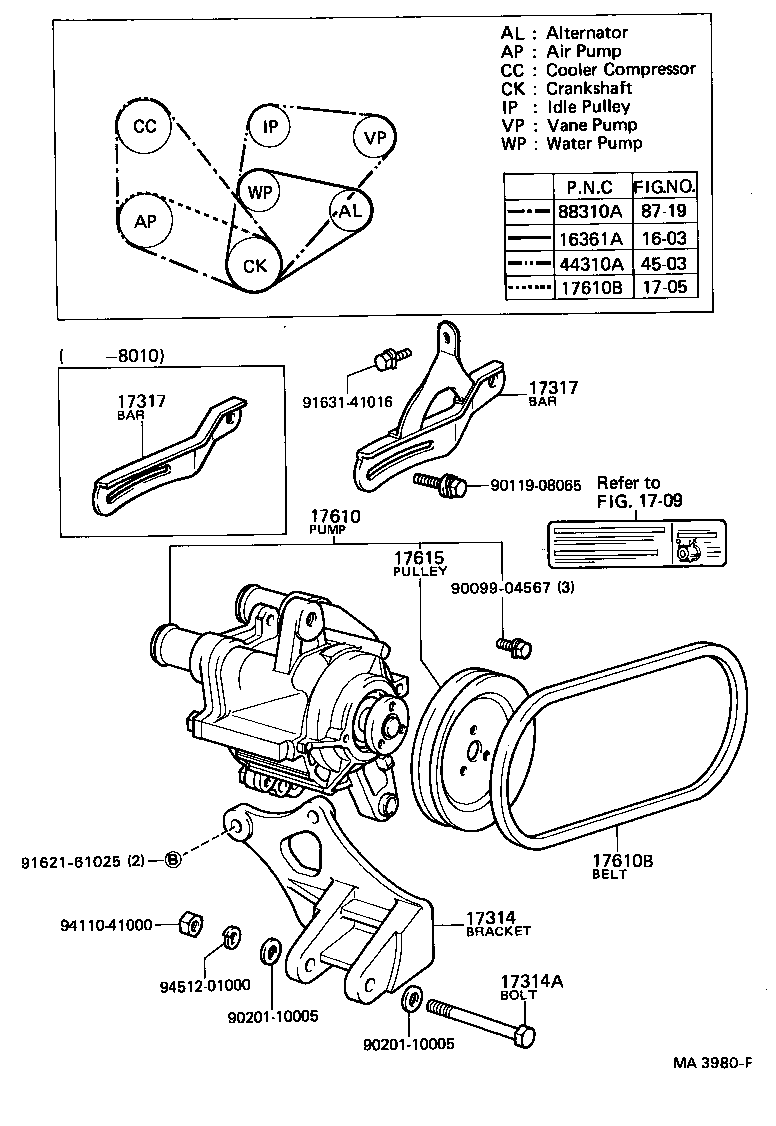

Click highlighted areas on diagram

diagram 1603 16361A 1705 1709 17314 17314A 17317 17317 17610 17610B 17610B 17615 44310A 4503 8719 88310A 9009904567 9011908065 9020110005 9020110005 9162161025 9163141016 9411041000 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

21R#..RX60

L=880

 1
17314 - BRACKET, AIR PUMP
17314-35010

21RC..RX60

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90101-10463

21RC..RX60

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-37010

21RC..RX60

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-37010

21RC..RX60

 1
17610 - PUMP ASSY, AIR
17610-35010

21RC..RX60

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

21RC..RX60

 1
17610B - BELT, V(FOR AIR PUMP)
99332-10820

21RC..RX60

 1
17615 - PULLEY(FOR AIR PUMP)
17615-35010

21RC..RX60

 1
Common parts
90099-04567
90119-08065
90201-10005
91621-61025
91631-41016
94110-41000
94512-01000
Linked diagrams
1603
1705
1709
4503
8719
