RX60L-XEMDCC (1980)
Toyota Cressida

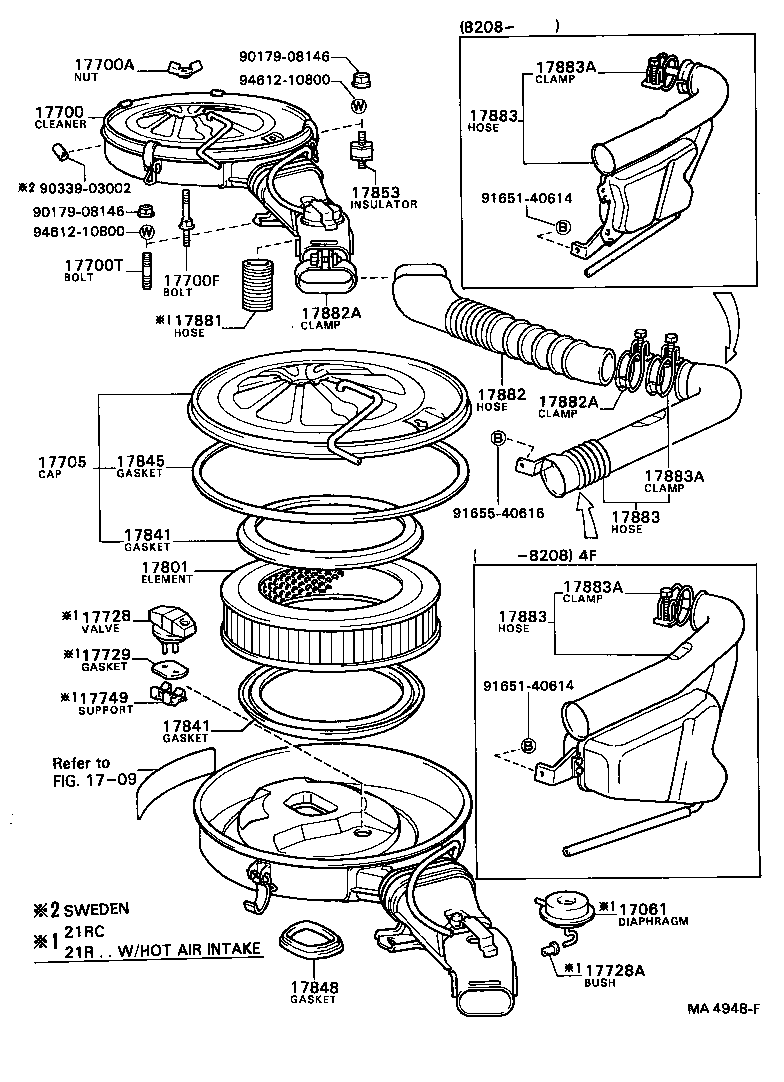

(8009- )21R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-37010 |
21R#..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-37060 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37070 |
21RC..RX60 |
1 | ||
| 17700-37071 |
21RC..RX60 |
1 | ||
| 17700-37100 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37061 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37110 |
21RC..RX60 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06003 |
21R#,18R..RX6# |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06020 |
21R#..RX60 |
1 | ||
| 17700T - BOLT, STUD(FOR AIR CLEANER) | ||||
| 90116-08033 |
21R#..RX60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35030 |
21R#..RX60 |
1 | ||
| 17705-35060 |
21R#..RX60 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24010 |
21R#..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
21R#..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
21R#..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
21R#..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-37010 |
21R#..RX60 DUST AREA |
1 | ||
| 17801-41090 |
21R#..RX60 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
21R#..RX60 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-41050 |
21R#..RX60 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-35010 |
21R#..RX60 |
1 | ||
| 17845-35010 |
21RC..RX60;21R..RX60..GEN,ME,SA |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-35010 |
21R#..RX60 |
1 | ||
| 17853 - INSULATOR, AIR CLEANER BRACKET | ||||
| 17853-38010 |
21R#..RX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37030 |
21R#..RX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34120 |
21R#..RX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21R#..RX60 CLEANER SIDE |
1 | ||
| 90460-65001 |
21R#..RX60 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21R#..RX60 CLEANER SIDE |
1 | ||
| 90460-65001 |
21R#..RX60 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-25010 |
21R#..RX60..3FC,3H,4FC,4H,5F |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-25010 |
21R#..RX60..3FC,3H,4FC,4H,5F |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-25010 |
21R#..RX60..3FC,3H,4FC,4H,5F |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
21R#..RX60 |
1 | ||
| 90460-65001 |
21R#..RX60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
21R#..RX60 |
1 | ||
| 90460-65001 |
21R#..RX60 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
21R#..RX60 |
1 | ||
| 90460-65001 |
21R#..RX60 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90339-03002 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1709 | ||||

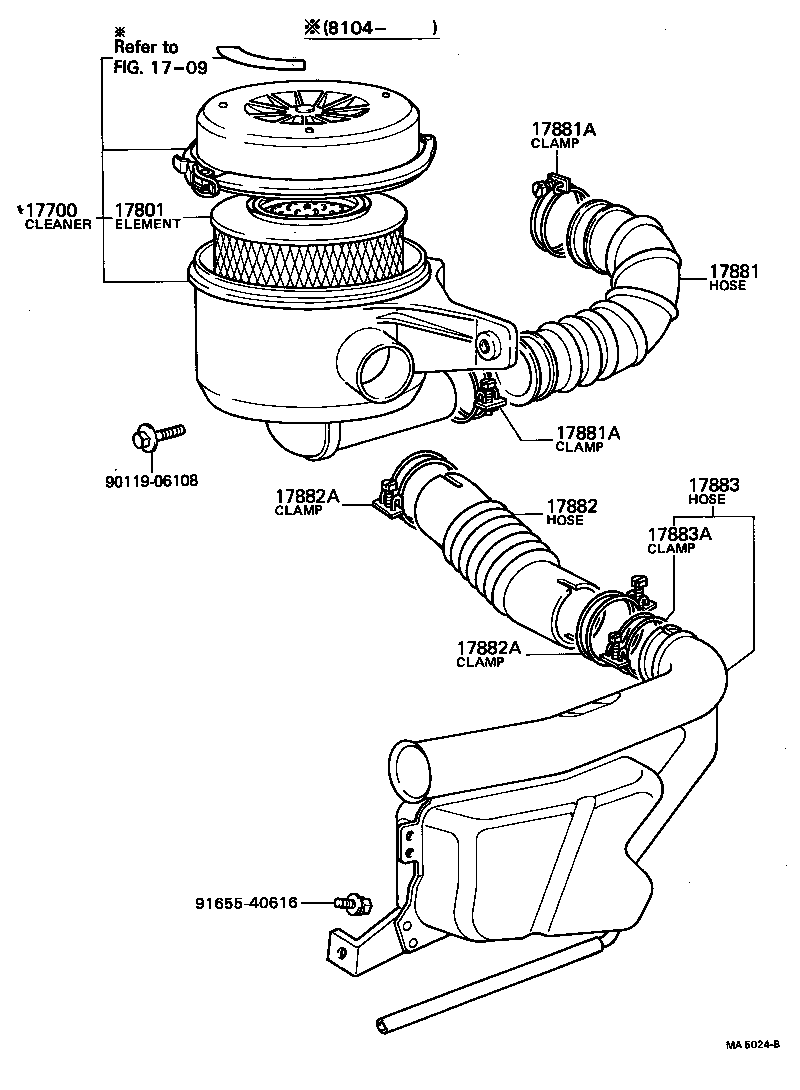

(8009-8208)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-37060 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37070 |
21RC..RX60 |
1 | ||
| 17700-37071 |
21RC..RX60 |
1 | ||
| 17700-37100 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37061 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37110 |
21RC..RX60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-37010 |
21R#..RX60 DUST AREA |
1 | ||
| 17801-41090 |
21R#..RX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37030 |
21R#..RX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34120 |
21R#..RX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21R#..RX60 CLEANER SIDE |
1 | ||
| 90460-65001 |
21R#..RX60 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21R#..RX60 CLEANER SIDE |
1 | ||
| 90460-65001 |
21R#..RX60 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-25010 |
21R#..RX60..3FC,3H,4FC,4H,5F |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-65001 |
21R#..RX60 |
1 | ||
| 90460-65001 |
21R#..RX60 |
1 | ||
| Common parts | ||||
| 90119-06108 | ||||
| 91655-40616 | ||||
| Linked diagrams | ||||
| 1709 | ||||

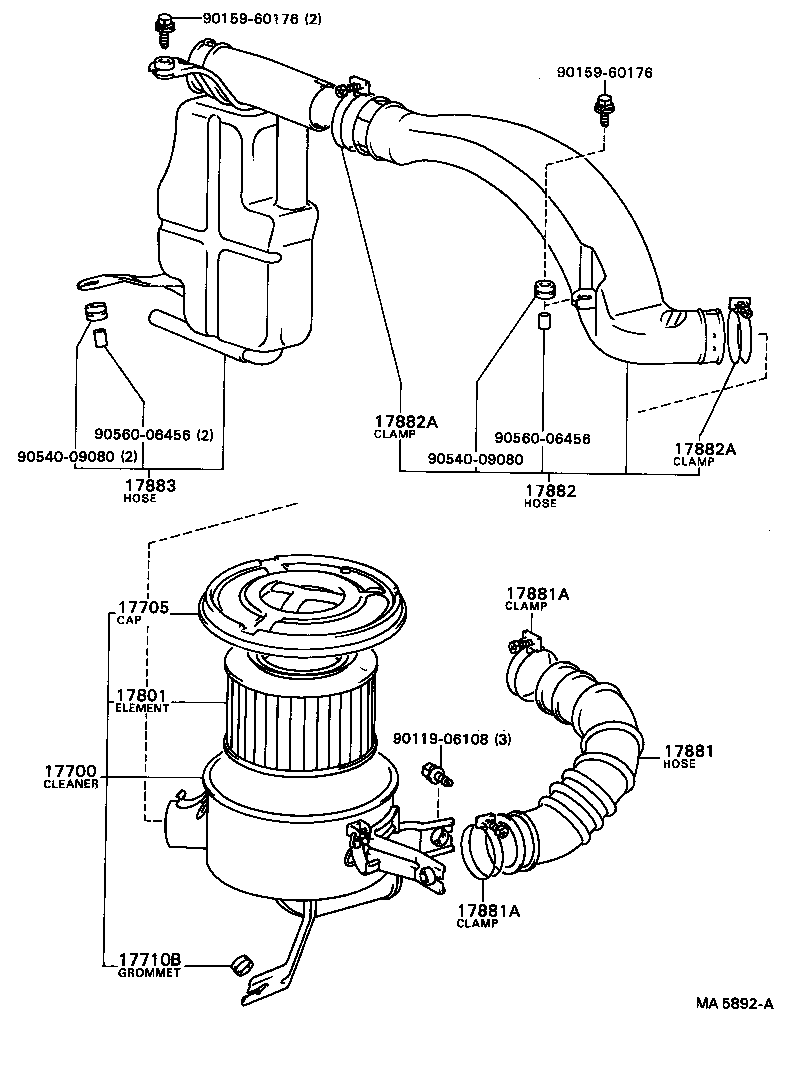

(8208- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-37060 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37070 |
21RC..RX60 |
1 | ||
| 17700-37071 |
21RC..RX60 |
1 | ||
| 17700-37100 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37061 |
21R..RX60..EUR,GEN W/HOT AIR INTAKE |
1 | ||
| 17700-37110 |
21RC..RX60 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-35030 |
21R#..RX60 |
1 | ||
| 17705-35060 |
21R#..RX60 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-37010 |
21R#..RX60 DUST AREA |
1 | ||
| 17801-41090 |
21R#..RX60 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-37030 |
21R#..RX60 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34120 |
21R#..RX60 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21R#..RX60 CLEANER SIDE |
1 | ||
| 90460-65001 |
21R#..RX60 BODY SIDE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01016 |
21R#..RX60 CLEANER SIDE |
1 | ||
| 90460-65001 |
21R#..RX60 BODY SIDE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-25010 |
21R#..RX60..3FC,3H,4FC,4H,5F |
1 | ||
| Common parts | ||||
| 90119-06108 | ||||
| 90159-60176 | ||||
| 90540-09080 | ||||
| 90560-06456 | ||||
